View PDFArchitectural Door Accessories

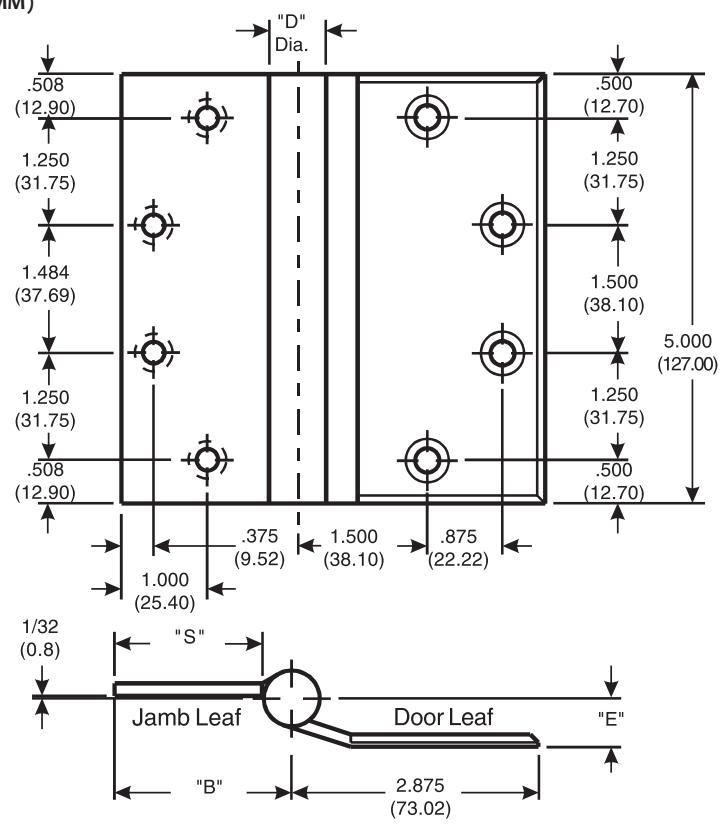

McKinney 5" Half Surface Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | GAUGE | "D" | JAMB LEAF | "F" | ||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS OR
STAINLESS STEEL HINGES |
OUTSIDE
DIAMETER |
"B"
TO CENTER LINE |
"S"
SWAGE LINE |
DOOR LEAF
OFFSET |
|
| TA 772 | TA 372 |
.146
(3.71) |
.648
(16.46) |
2-1/16
(52.4) |
1-11/16
(42.9) |
9/16
(14.3) |
| TA 782 | TA 382 |
.190
(4.83) |
.752
(19.10) |
2-1/8
(53.9) |
1-45/64
(43.2) |
5/8
(15.9) |
| TA/TB 2772 | TA/TB 2372 |
.146
(3.71) |
.648
(16.46) |
2-1/16
(52.4) |
1-11/16
(42.9) |
9/16
(14.3) |
| T4A/T4B 3782 | T4A/T4B 3382 |
.190
(4.83) |
.752
(19.10) |
2-1/8
(53.9) |
1-45/64
(43.2) |
5/8
(15.9) |
Template 180-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Half Surface Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: Jamb Leaf: 1/2 x 12-24 F.H. Door Leaf: 2 x 1/4-20 O.H. with Grommet Nut (Specify door thickness if greater than 13/4.)
Hinges are reversible.
*Check Catalog for Metals.
