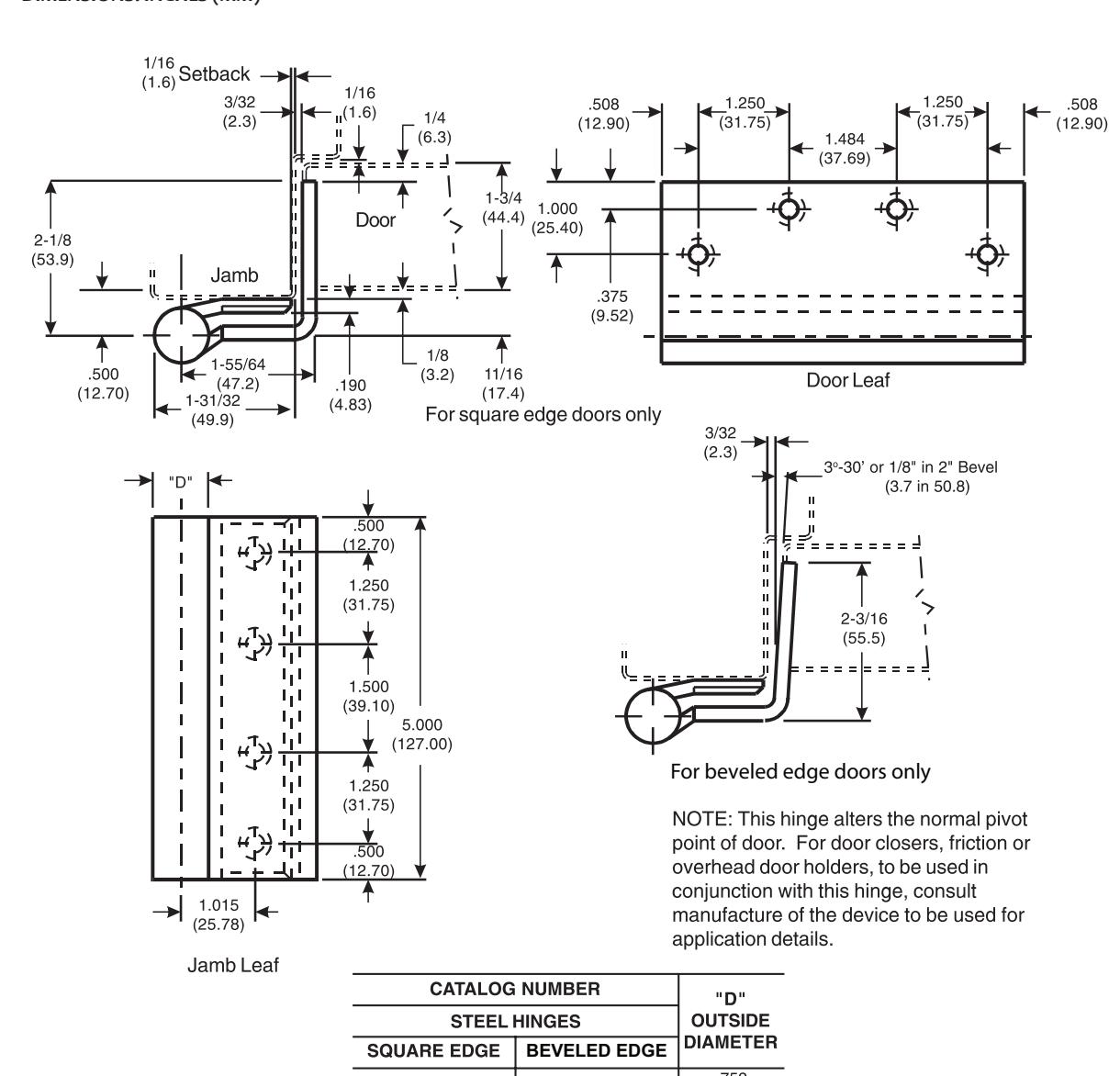

McKinney 5 Half Mortise Swing Clear Hinges Templates

Open the original PDF document

Architectural Door Accessories

DO NOT SCALE DIMENSIONS: INCHES (MM)

Effective date: September 2, 2015

Supercedes: All Previous

McKINNEY Template Half Mortise Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: Jamb Leaf: 1/2 x 1/4-20 F.H. Door Leaf: 1/2 x 12-24 F.H.

Wood Screw Size: Door Leaf: 11/4 x 12 F.H.

Hinges are reversible.
