Architectural Door Accessories

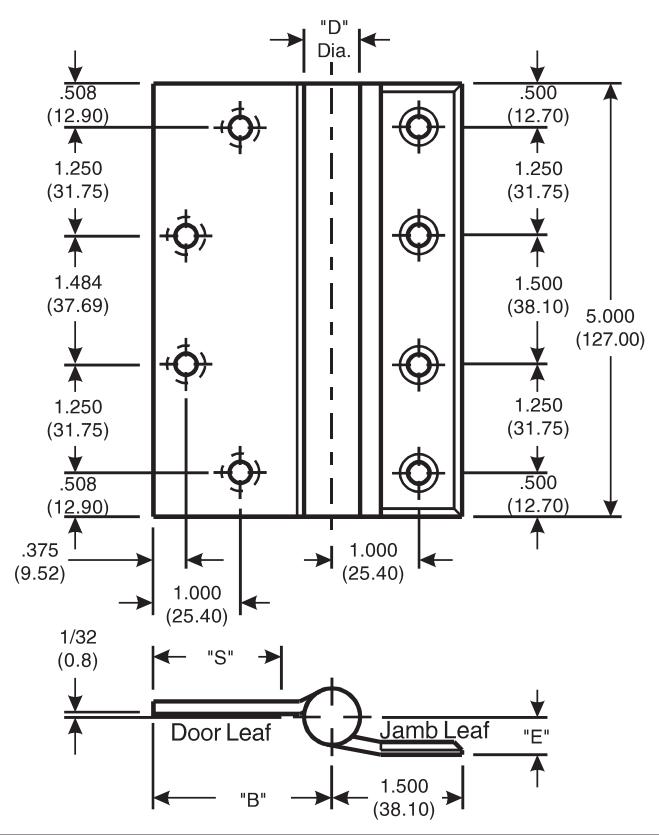

McKinney 5" Half Mortise Template Hinges

DO NOT SCALE DIMENSIONS: INCHES (MM)

CATALOG NUMBER GAUGE "D" DOOR LEAF "F"
STEEL
HINGES 		*NON-FERROUS OR
STAINLESS STEEL
HINGES 		OUTSIDE
DIAMETER 		"B"
TO CENTER
LINE 		"S"
SWAGE
LINE 		JAMB LEAF
OFFSET
TA 774 TA 374 .146
(3.71) 		.648
(14.86) 		2-1/16
(52.4) 		1-11/16
(42.9) 		7/16
(11.1)
TA 784 TA 384 .190
(4.83) 		.752
(19.10) 		2-1/8
(53.9) 		1-45/64
(43.3) 		1/2
(12.7)
TA/TB 2774 TA/TB 3374 .146
(3.71) 		.648
(14.86) 		2-1/16
(52.4) 		1-11/16
(42.9) 		7/16
(11.1)
T4A/T4B 3784 T4A/T4B 3384 .190
(4.83) 		.752
(19.10) 		2-1/8
(53.9) 		1-45/64
(43.3) 		1/2
(12.7)

Template 200-15

Effective date: September 2, 2015

Supercedes: All Previous

McKINNEY Template Half Mortise Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: Jamb Leaf: 1/2 x 12-24 F.H. Door Leaf: 1/2 x 12-24 F.H.

Hinges are reversible.

*Check Catalog for Metals.
