McKinney 5 Full Mortise MacPro Hinges Templates

Open the original PDF document

View PDF

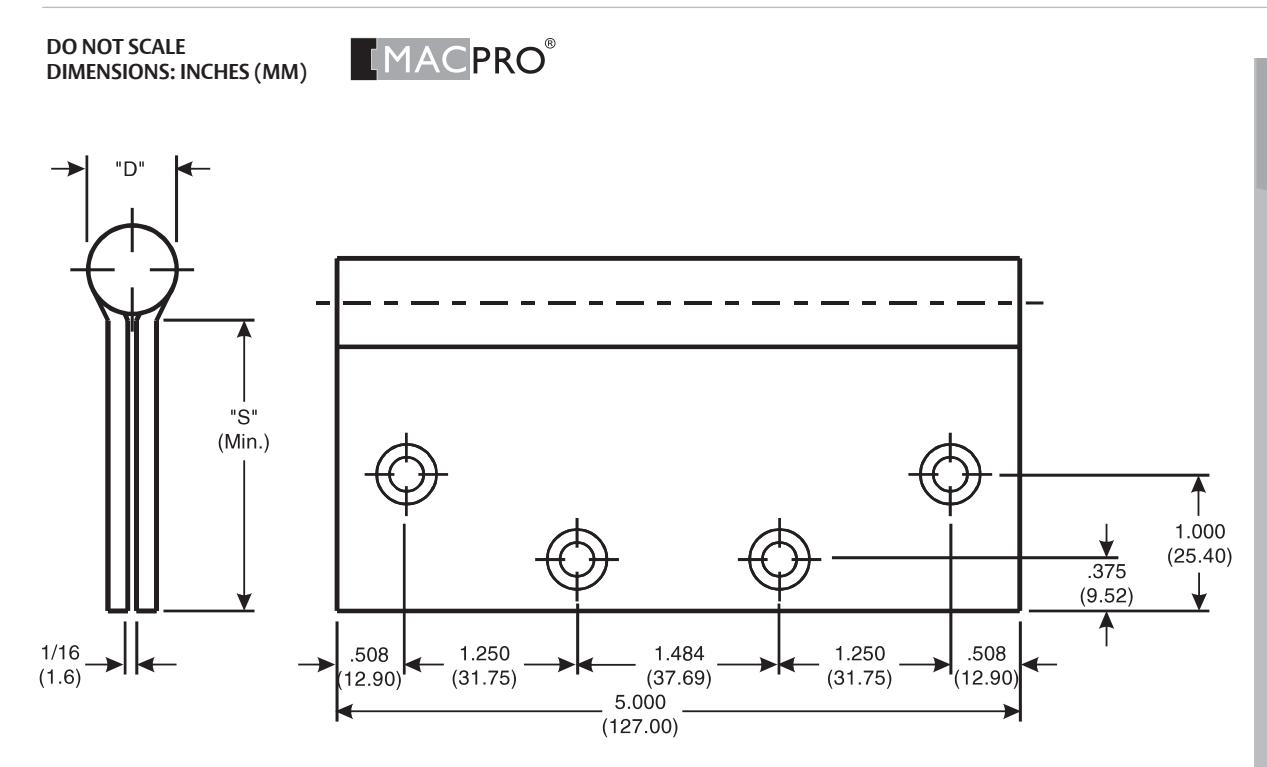

McKinney 5 x 41/2 Full Mortise Template Hinge

MPB68 MPB99

Template MP 035-16

Effective date: October 28, 2016

Supercedes: All Previous

McKINNEY MacPro Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.
