McKinney 5 CC x MM Hinges Templates
Open the original PDF document
View PDFArchitectural Door Accessories
McKinney 5 x 41/2, 5 x 5 Full Mortise Concealed Circuit x Magnetic Monitoring Hinges
| CATALOG NUMBER | 041105 | "D" | "E" | "E" | "S" (SWAGE LINE) | ||
|---|---|---|---|---|---|---|---|
| STEEL | *NON-FERROUS | GAUGE |
OUTSIDE
DIA. |
WIRE
LOCATION |
WIRE
LOCATION |
HINGE WIDTH | |
| HINGES | HINGES | METAL |
4½
(114.3) |
5
(127.0) |
|||
| TA 714xCCxMM | TA 314xCCxMM |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.64) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| TA 786xCCxMM | TA 386xCCxMM |
.190
(4.83) |
.752
(19.10) |
1.125
(28.57) |
.812
(20.64) |
1-53/64
(46.4) |
2-5/64
(52.8) |
| TA/TB 2714xCCxMM | TA/TB 2314xCCxMM |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.64) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| T4A/T4B 3786xCCxMM | T4A/T4B 3386xCCxMM |
.190
(4.83) |
.752
(19.10) |
1.062
(26.96) |
.750
(19.05) |
1-53/64
(46.4) |
2-5/64
(52.8) |

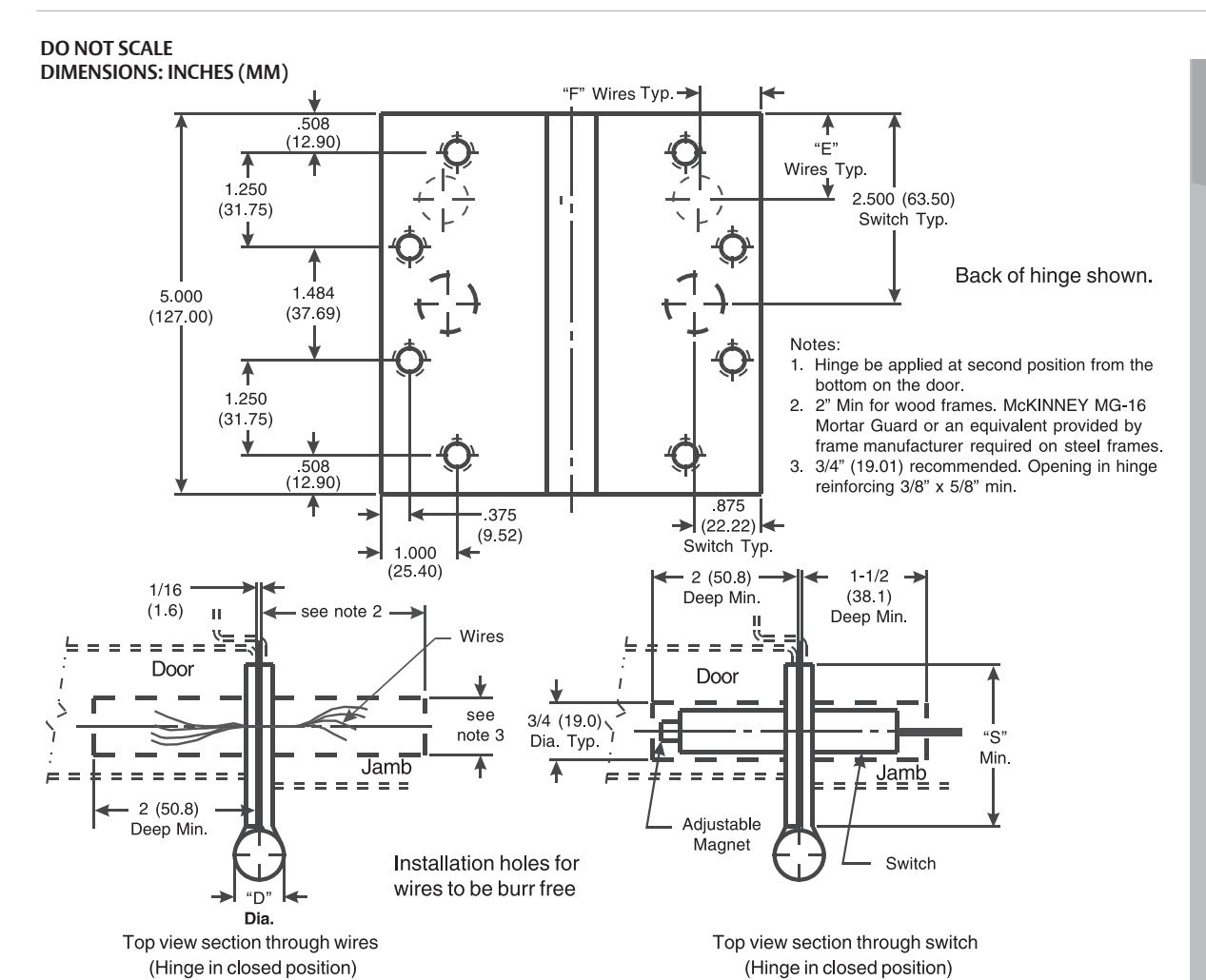

Template 322-15
Effective date: September 8, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size, wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
