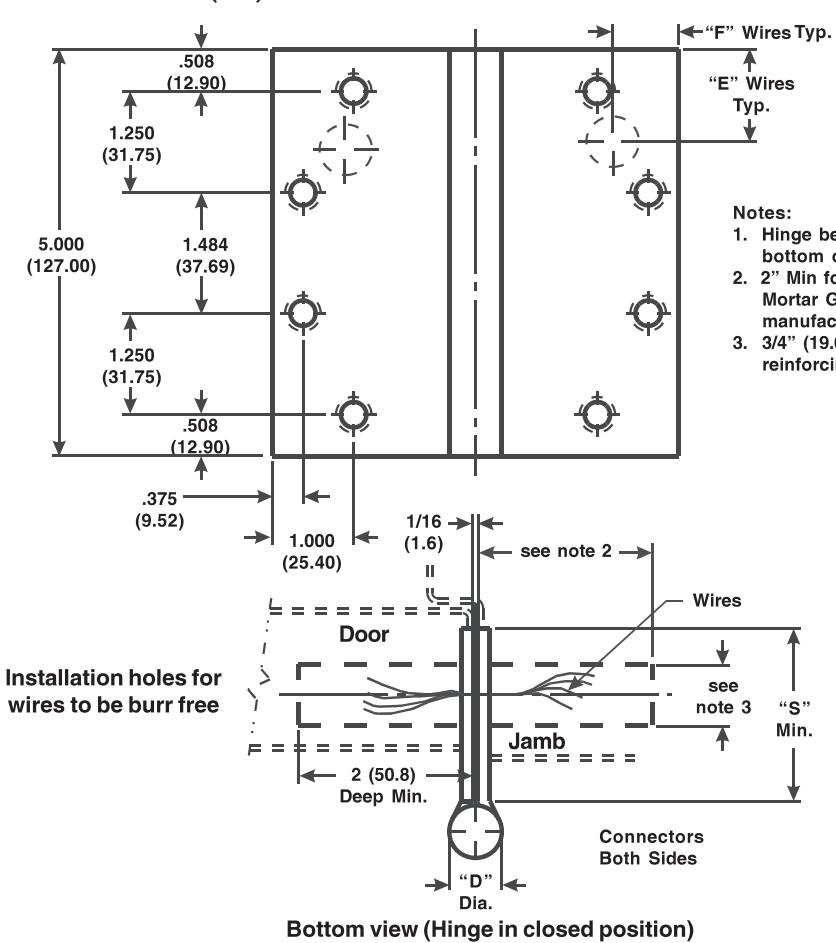

McKinney 5 x 41/2, 5 x 5 Template Full Mortise Concealed Circuit Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | 041105 | "E" | "S" DISTANCE (SWAGE LINE) | ||||
|---|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
GAUGE
OF METAL |
"D"
OUTSIDE DIAMETER |
"E"
WIRE LOCATION |
WIRE
LOCATION |
HINGE WIDTH | |
|
4½
(114.3) |
5
(127.0) |
||||||
| TA 714xCC | TA 314xCC |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.62) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| TA 786xCC | TA 386xCC |
.190
(4.83) |
.752
(19.10) |
1.125
(28.57) |
.812
(20.62) |
1-53/64
(46.4) |
2-5/64
(52.8) |
| TA/TB 2714xCC | TA/TB 2314xCC |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.62) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| T4A/T4B 3786xCC | T4A/T4B 3386xCC |
.190
(4.83) |
.752
(19.10) |
1.062
(26.96) |
.750
(19.03) |
1-53/64
(46.4) |
2-5/64
(52.8) |
Template 280-15
Effective date: September 8, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
