View PDFArchitectural Door Accessories

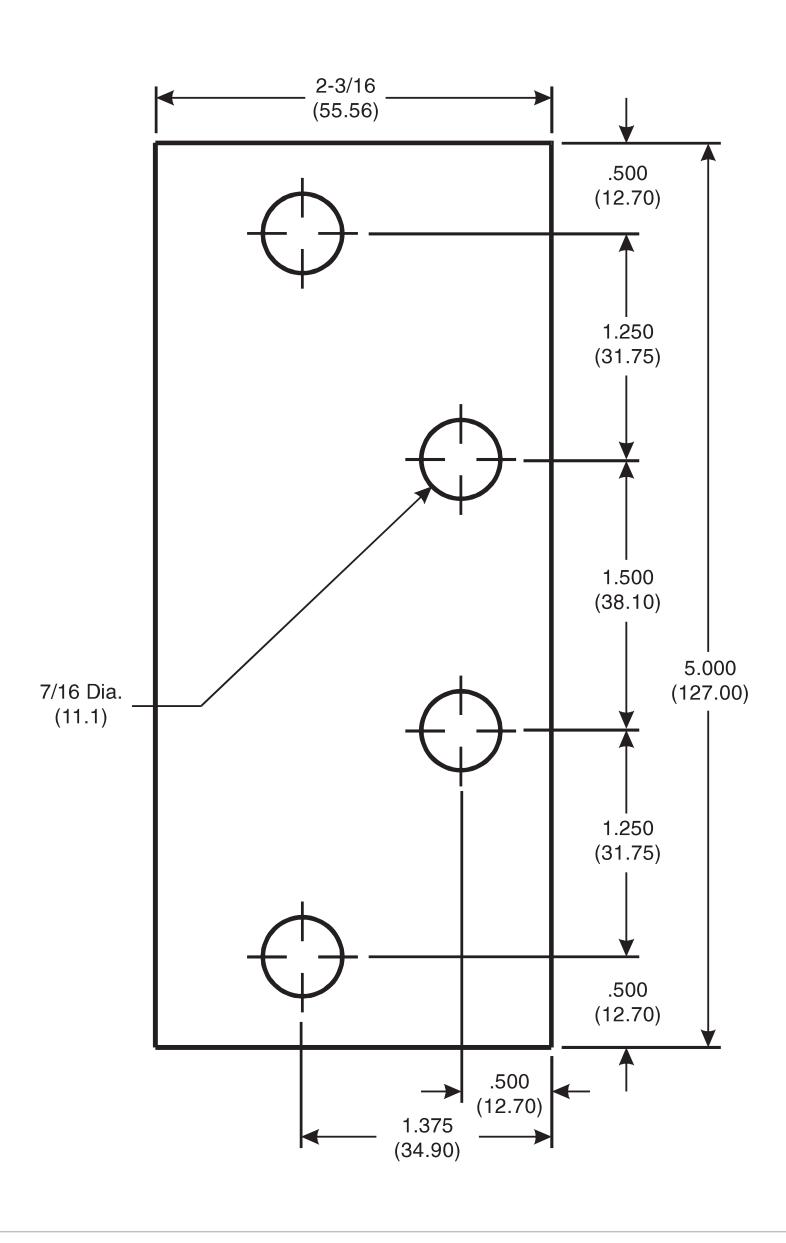

McKinney 5" BP10 Backing Plate
DO NOT SCALE DIMENSIONS: INCHES (MM)
Template 181-98
Effective date: March 30, 1998
Supercedes: All Previous
McKINNEY Template Backing Plate is made to conform to this drawing.
Machine Screw Size: 1/4-20 O.H. with Grommet Nut (Provided with hinge.)
