McKinney 5" - 1001 Template Full Mortise Double Acting Spring Hinge
DO NOT SCALE DIMENSIONS: INCHES (MM)
Template 355-98
Effective date: March 30, 1998
Supercedes: All Previous
McKINNEY Template Full Mortise Double Acting Spring Hinge is made to conform to this drawing.
Wood Screw Size: 1 x 10 F.H.
Page 1 of 2
DO NOT SCALE DIMENSIONS: INCHES (MM)

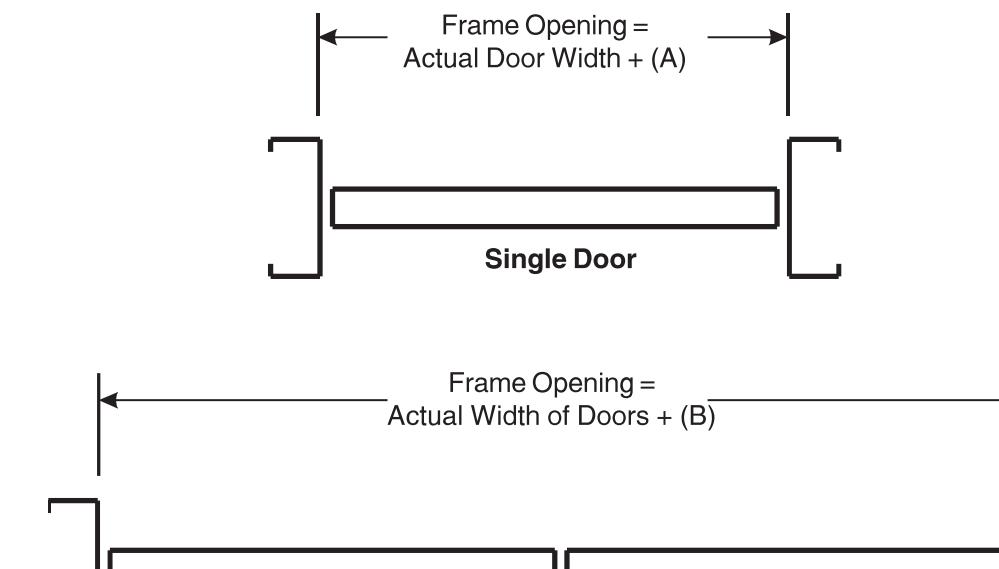

| Frame Clearances | ||
|---|---|---|
| Hinge Mounting | Clearance (A) | Clearance (B) |
| Surface Applied | .484 (12.29) | .968 (24.59) |
| Door Flange Mortised | .393 (9.98) | .786 (19.96) |
Template 355-98
Effective date: March 30, 1998
Supercedes: All Previous
Notes:
- 1. This hinge is not to be used on doors with hinge edge beveled.
- 2. Refer to catalog for door weight and hinge size.
- 3. Hinges should be inverted on one door of a pair for proper centering.
Page 2 of 2
