Architectural Door Accessories

ASSA ABLOY

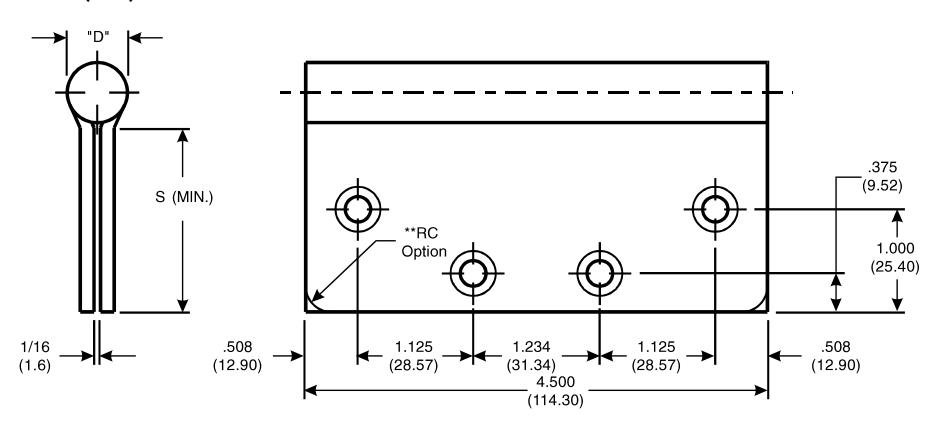

McKinney 4^{1}/_{2} x 4, 4^{1}/_{2} x 4^{1}/_{2} x 5, 4^{1}/_{2} x 6, 4^{1}/_{2} x 7, 4^{1}/_{2} x 8 Full Mortise Template Hinges

The global leader in door opening solutions

DO NOT SCALE DIMENSIONS: INCHES (MM)

CATALOG NUMBER "S" DISTANCE (SWAGE LINE)
STEEL
HINGES 		*NON-FERROUS
OR STAINLESS
STEEL HINGES 		GAUGE
OF
METAL 		"D" OUTSIDE DIAMETER HINGE WIDTH
4
(101.6) 		4½
(114.3) 		5
(127.0) 		6
(152.4) 		7
(177.8) 		8
(203.2)
T 714 - .134
(3.40) 		.585
(14.86) 		1-21/32
(42.1) 		1-29/32
(48.4) 		- - _ _
TA 714 TA 314 .134
(3.40) 		.585
(14.86) 		1-21/32
(42.1) 		1-29/32
(48.4) 		_ _ _ _
TA 786 TA 386 .180
(4.57) 		.720
(18.29) 		1-9/16
(39.7) 		1-13/16
(46.0) 		_ _ _ _
T 2714 T 2314 .134
(3.40) 		.585
(14.86) 		1-21/32
(42.1) 		1-29/32
(48.4) 		_ _ _ _
TCA 2714 TCA 2314 .134
(3.40) 		.585
(14.86) 		1-21/32
(42.1) 		1-29/32
(48.4) 		_ _ _ _
TA/TB 2714 TA/TB 2314 .134 (3.40) .603
(15.32) 		1-21/32
(42.1) 		1-29/32
(48.4) 		_ _ _ _
TA 2731 TA 3331 .134
(3.140) 		.525
(13.33) 		1-11/16
(42.9) 		1-15/16
(49.2) 		_ _ _ _
TA/TB 2798 TA/TB 2398 .134
(3.40) 		.603
(15.32) 		_ _ 2-5/32
(54.8) 		2-21/32
(67.5) 		3-5/32
(80.2) 		3-21/32
(92.9)
TA 3750 TA 3350 .180
(4.57) 		.701
(17.80) 		_ 1-13/16
(46.0) 		_ _ _ _
TCA 3786 TCA 3386 .180
(4.57) 		.752
(19.10) 		1-9/16
(39.7) 		1-13/16
(46.0) 		2-1/16
(52.4) 		2-9/16
(65.1) 		3-1/16
(77.8) 		3-9/16
(90.5)
T4A/T4B
3786 		T4A/T4B 3386 .180
(4.57) 		.752
(19.10) 		1-9/16
(39.7) 		1-13/16
(46.0) 		2-1/16
(52.4) 		2-9/16
(65.1) 		3-1/16
(77.8) 		3-9/16
(90.5)
SP3786 SP3386 .180
(4.57) 		.752
(19.10) 		_ 1-13/16
(46.0) 		2-1/16
(52.4) 		2-9/16
(65.1) 		3-1/16
(77.8) 		3-9/16
(90.5)

Template 030-18

Effective date: July 13, 2018

Supersedes: All Previous

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

*Check Catalog for Metals.

**Round Corner Option is available with 1/4 (6.3) or 5/8 (15.9) radii. If none is specified 1/4 (6.3) will be supplied.
