View PDFArchitectural Door Accessories

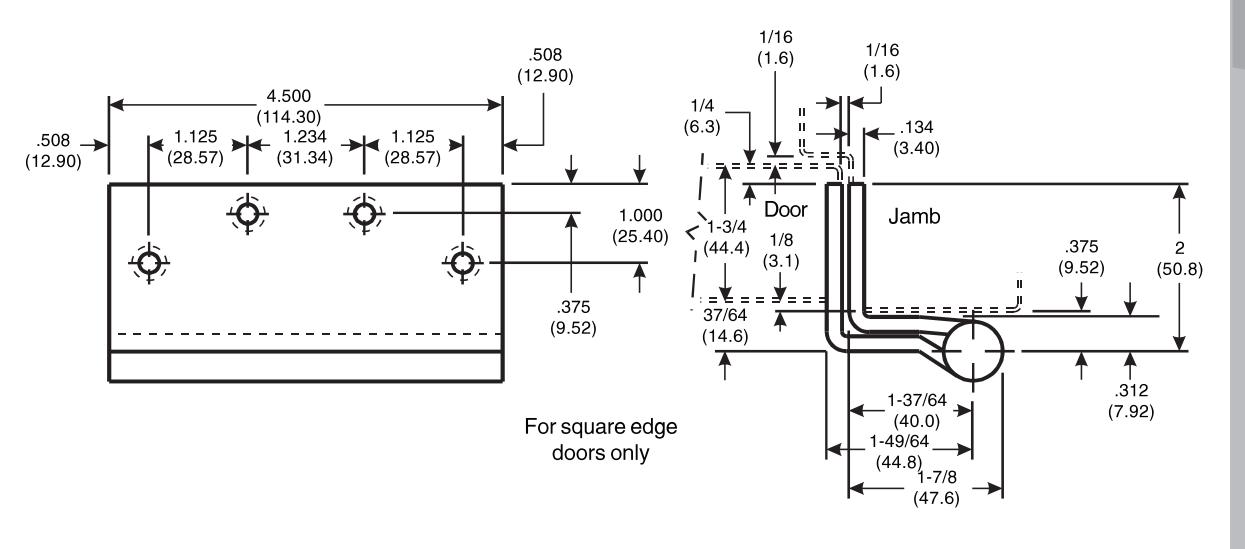

McKinney 41/2" Full Mortise "Swing Clear" Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
For beveled edge doors only
| BEVELED EDGE | |||
|---|---|---|---|
Template 105-15
Effective date: September 1, 2015
Supercedes: All Previous
McKINNEY Template Swing Clear Hinges are made in size, gauge and with screw holes located to conform to this drawing.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
Hinges are reversable.
*Check Catalog for Metals.
