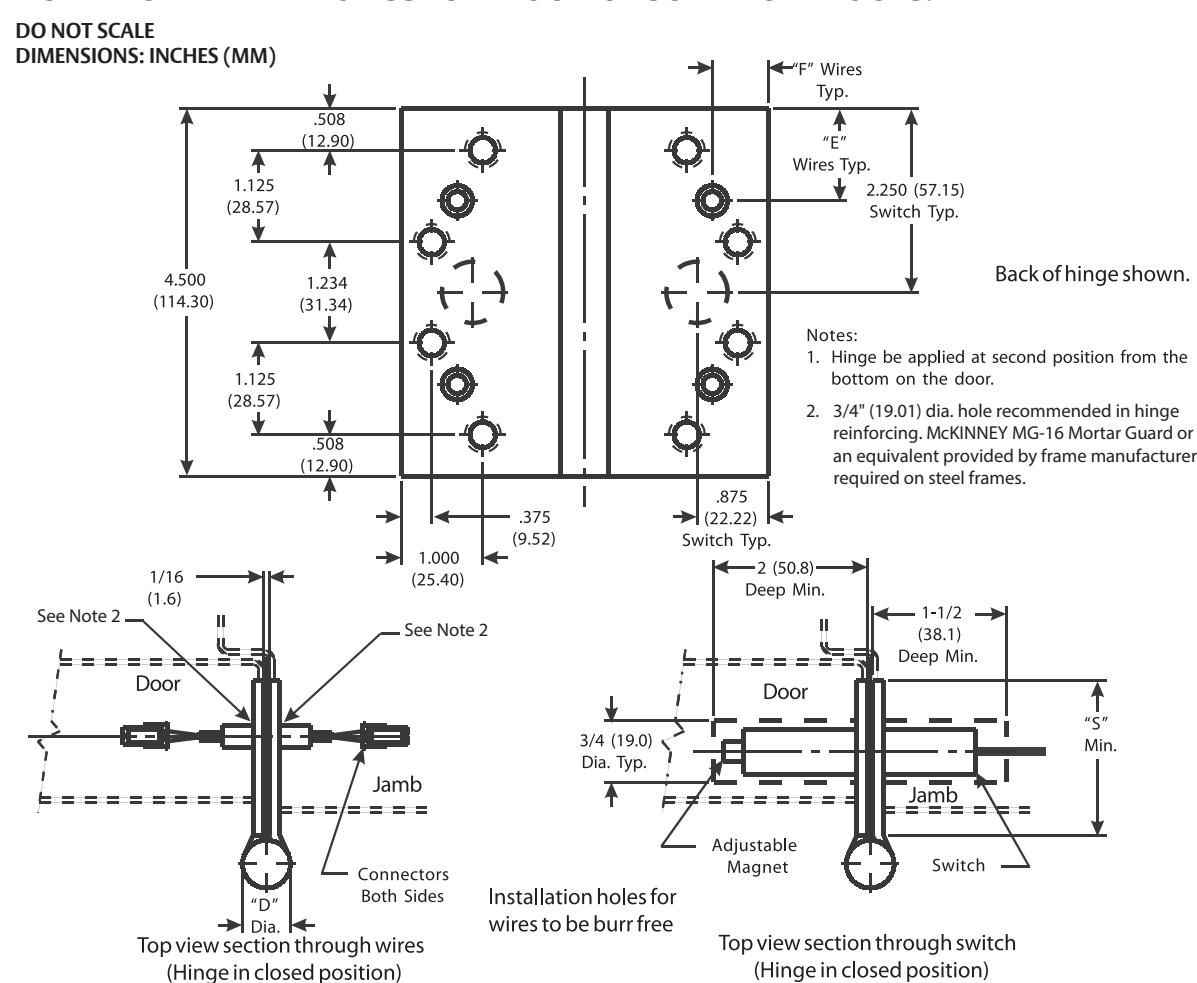

McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise, QC* Hinge x MM Hinge (10 to 12 Wires)

NOT RECOMMENDED FOR USE ON WOOD OR SOLID CORE DOORS.

					(48.4)

Template 257-17

Effective date: July 27, 2017

Supercedes: All Previous

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size, wire location and hole size conforms to this drawing.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

*Connector system utilizes wire colors & locations compatible with doors & hardware from other ASSA ABLOY Group Companies.

**Check Catalog for Metals.
