View PDFArchitectural Door Accessories

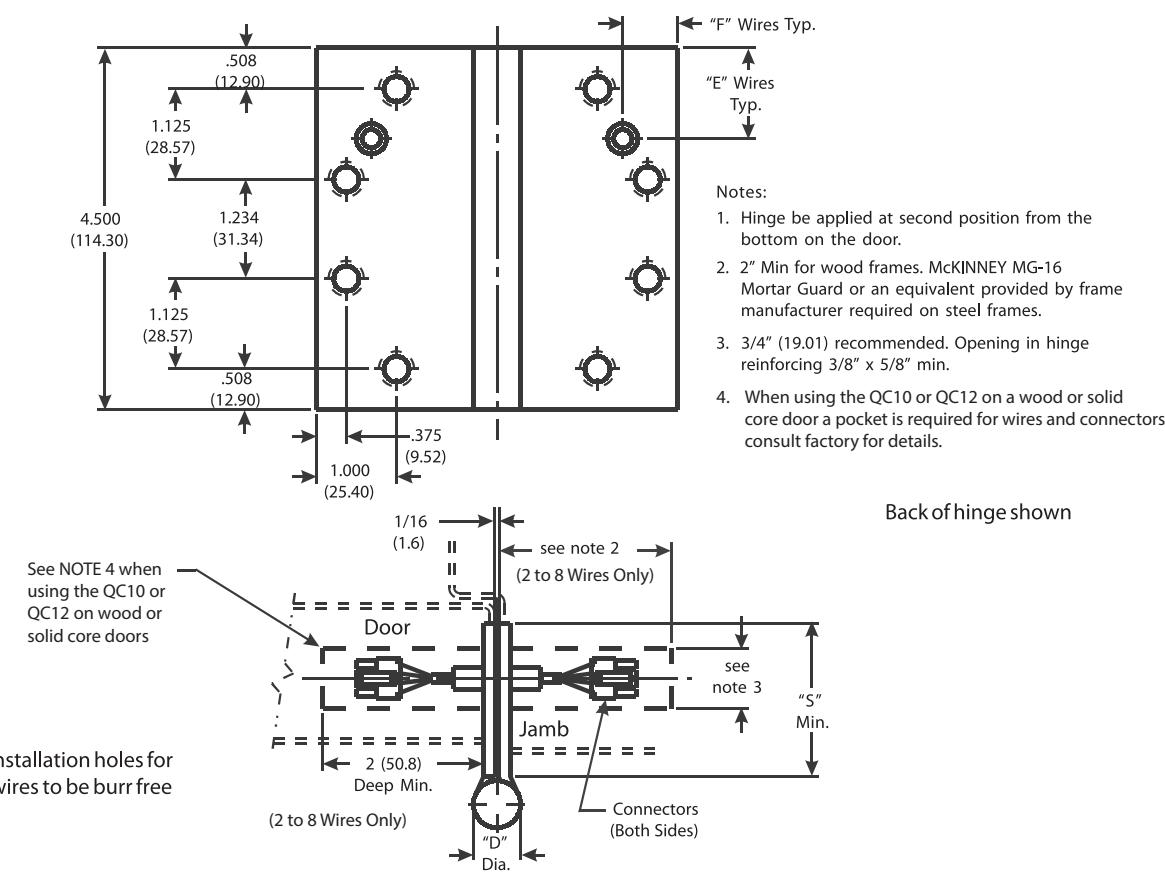

McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise, QC* Hinge (2 to 12 Wires)
DO NOT SCALE DIMENSIONS: INCHES (MM)
| METAL | ||||||
|---|---|---|---|---|---|---|
Template 278-17
Effective date: July 27, 2017
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Connector System utilizes wire colors & locations compatible with Doors & Hardware from other ASSA ABLOY Group Companies.
**Check Catalog for Metals.
McKinney is a brand associated with Corbin Russwin, Inc., an ASSA ABLOY Group company. Copyright © 2017, Corbin Russwin, Inc.
