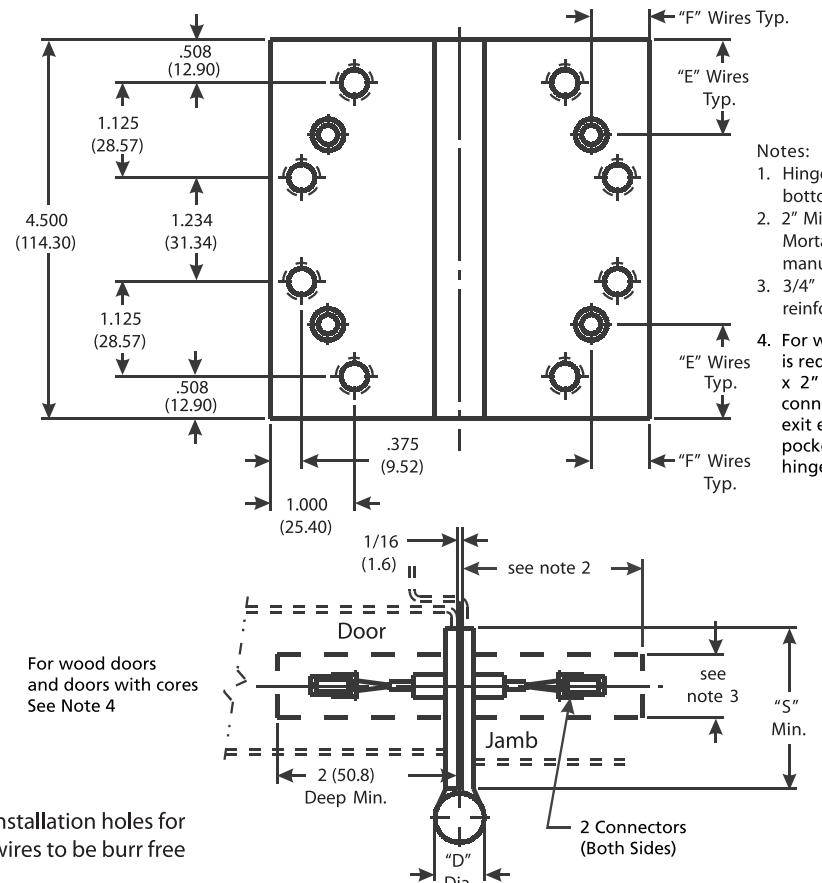

McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise, PoE* Hinge (Power over Ethernet)

DO NOT SCALE DIMENSIONS: INCHES (MM)

U.S. Patent No. 7,824,200

Template MP 279-15

Effective date: September 8, 2015

Supercedes: All Previous

McKINNEY Hinges of the Catalog Numbers are made to conform to ANSI/ BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

*Connector System utilizes wire colors & locations compatible with doors & hardware from other ASSA ABLOY Group Companies.

**Check Catalog for Metals.
