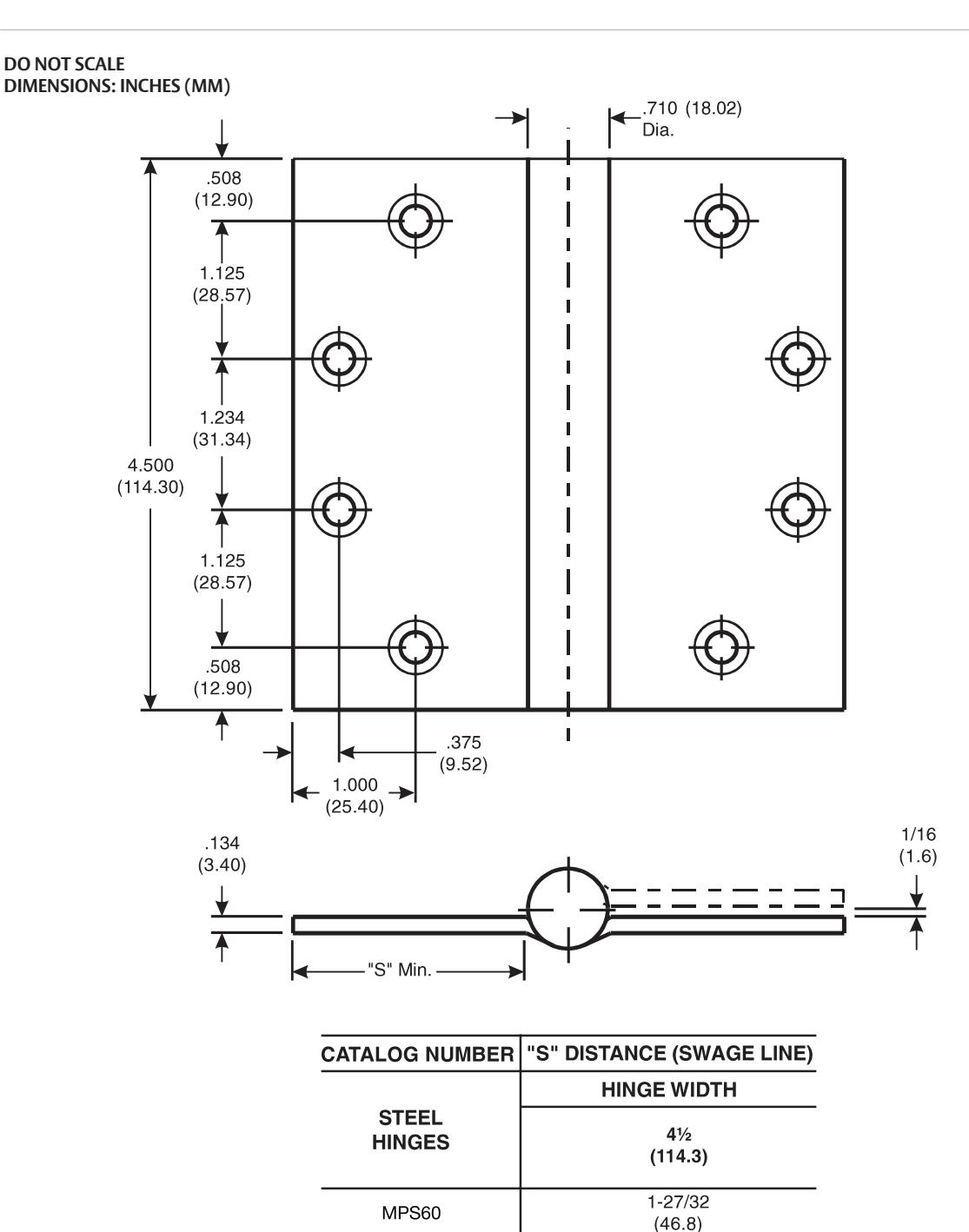

McKinney 41/2 x 41/2 MPS60 Template Full Mortise Concealed Bearing Adjustable Spring Hinge

The global leader in door opening solutions

Template 540M-09

Effective date: July 6, 2009

Supercedes: All Previous

McKINNEY Template Full Mortise Concealed Bearing Adjustable Spring Hinges are made to conform to ANSI/BHMA 156.7.

Machine Screw Size: <sup>1</sup>/<sub>2</sub> x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
