Architectural Door Accessories

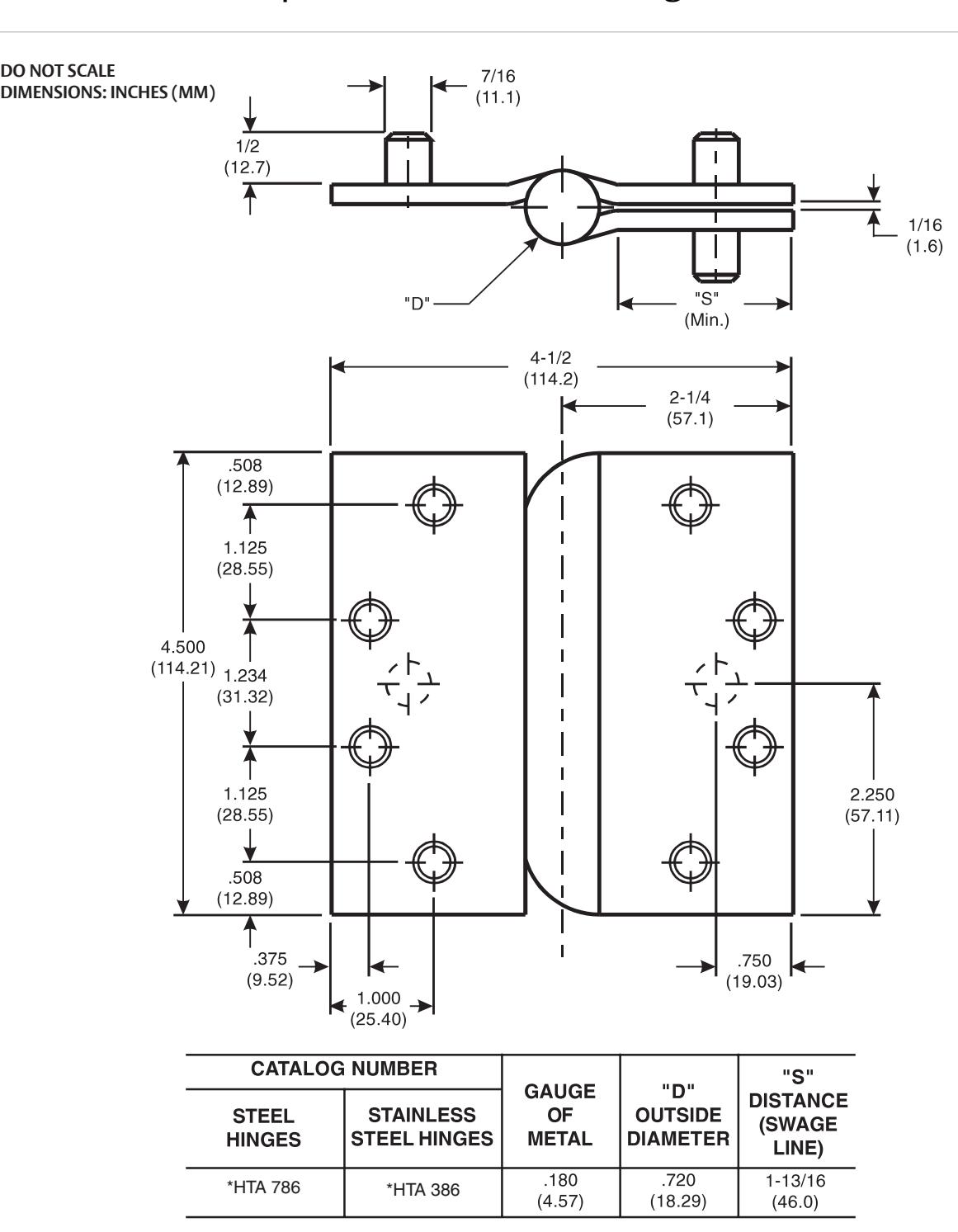

McKinney 41/2 x 41/2 Full Mortise Template Institutional Hinge

Template 031-13

Effective date: October 16, 2019

Supercedes: All Previous

McKINNEY Template Institutional Hinges of the Catalog Numbers are made to conform to ANSI/ BHMA 156.7 for Screw Hole Location and Gauge of Metal. Prison Safety Feature (PSF) size and location conforms to this drawing.

  • *Machine Screw Size: 1/2 x 12-24 F.H.
  • *Wood Screw Size: 11/4 x 12 F.H.
