View PDFArchitectural Door Accessories

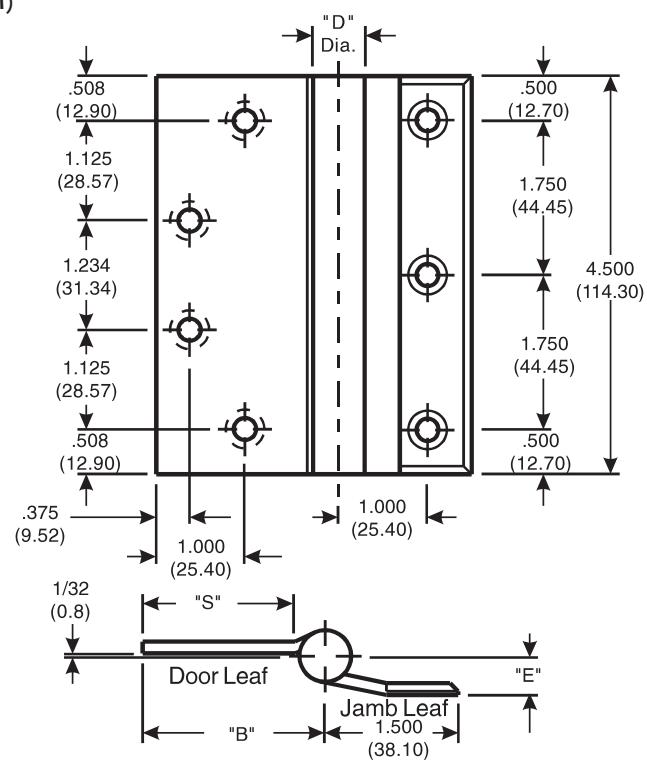

McKinney 41/2" Half Mortise Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | GAUGE | "D" | DOOR LEAF | "F" | ||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS OR
STAINLESS STEEL HINGES |
OF
METAL |
OUTSIDE |
"B"
TO CENTER LINE |
"S"
SWAGE LINE |
JAMB LEAF
OFFSET |
| TA 774 | TA 374 |
.134
(3.40) |
.585
(14.86) |
2-1/16
(52.4) |
1-23/32
(43.6) |
7/16
(11.1) |
| TA 784 | TA 384 |
.180
(4.57) |
.752
(19.10) |
2-1/8
(53.9) |
1-23/32
(43.6) |
1/2
(12.7) |
| TA/TB 2774 | TA/TB 3374 |
.134
(3.40) |
.603
(15.32) |
2-1/16
(52.4) |
1-23/32
(43.6) |
7/16
(11.1) |
| T4A/T4B 3784 | T4A/T4B 3384 |
.180
(4.57) |
.752
(19.10) |
2-1/8
(53.9) |
1-23/32
(43.6) |
1/2
(12.7) |
Template 195-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Half Mortise Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: Jamb Leaf: 1/2 x 12-24 F.H. Door Leaf: 1/2 x 12-24 F.H.
Hinges are reversible.
*Check Catalog for Metals.
