View PDFArchitectural Door Accessories

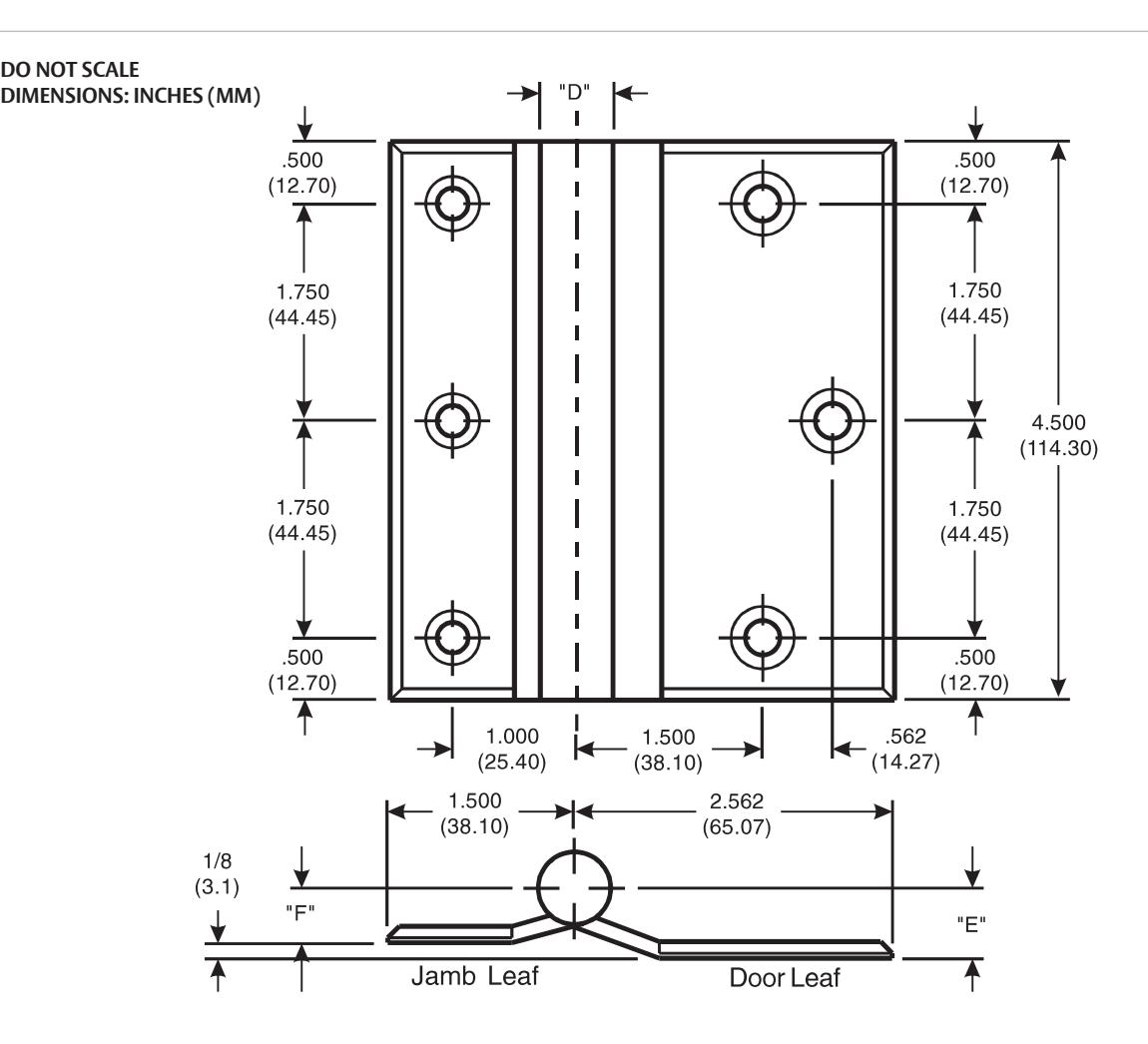

McKinney 41/2" Full Surface Template Hinges
| CATALOG NUMBER | CAUCE | "D" | "E" | "E" | |
|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
OR STAINLESS STEEL HINGES |
GAUGE
OF METAL |
_ |
DOOR LEAF
OFFSET |
|
| TA 771 | TA 371 |
.134
(3.40) |
.585
(14.86) |
9/16
(14.3) |
7/16
(11.1) |
| TA 781 | TA 381 |
.180
(4.57) |
.720
(18.29) |
5/8
(15.9) |
1/2
(12.7) |
| TA/TB 2771 | - |
.134
(3.40) |
.603
(15.32) |
9/16
(14.3) |
7/16
(11.1) |
| T4A/T4B 3781 | T4A/T4B 3381 |
.180
(4.57) |
.752
(19.10) |
5/8
(15.9) |
1/2
(12.7) |
Template 130-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Full Surface Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: Jamb Leaf: 1/2 x 12-24 F.H. Door Leaf: 2 x 1/4-20 O.H. with Grommet Nut (Specify door thickness if greater than 13/4)
Hinges are reversable.
*Check Catalog for Metals.
