McKinney 4.5 CC x MM Hinges Templates
Open the original PDF document
View PDFArchitectural Door Accessories

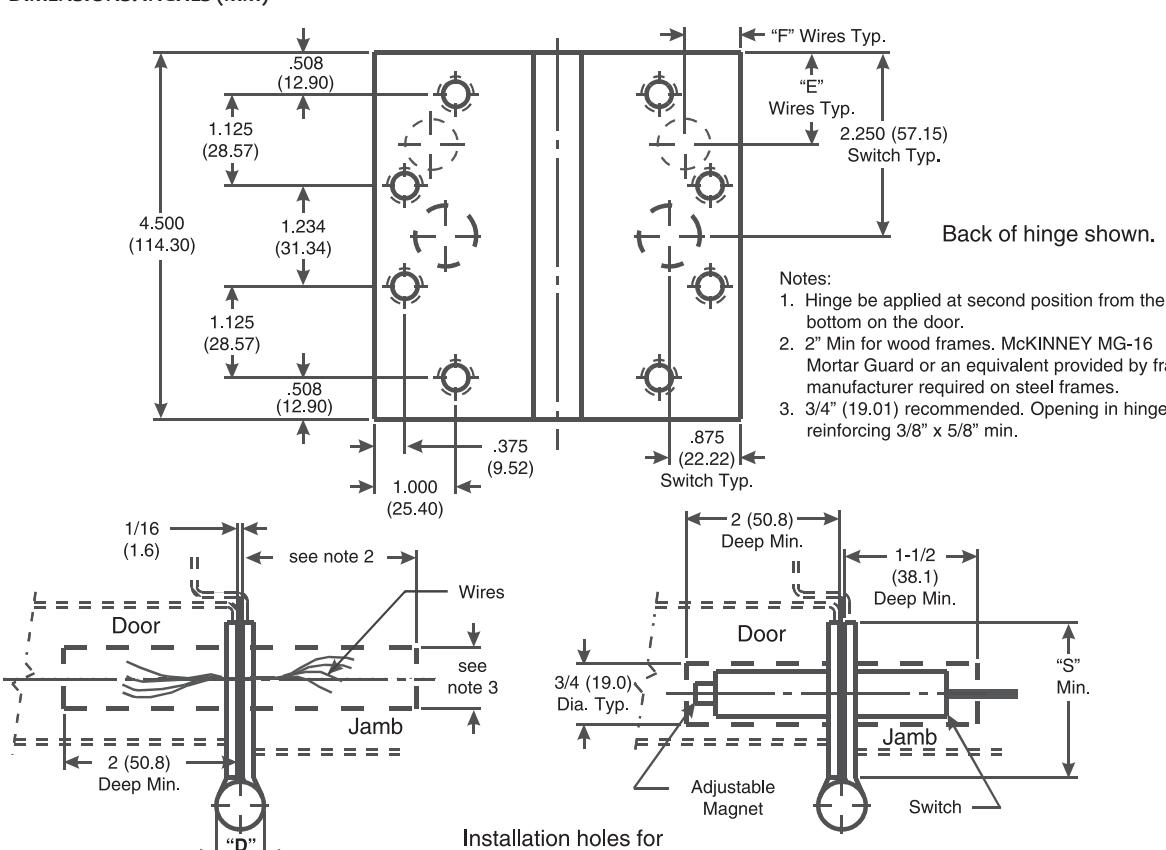

McKinney 41/2 x 4, 41/2 x 41/2 Full Mortise Concealed Circuit x Magnetic Monitoring Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | CALICE | "D" | "F" | "F" | "S" (SWAGE LINE) | ||
|---|---|---|---|---|---|---|---|
| STEEL | *NON-FERROUS |
GAUGE
OF |
OUTSIDE
DIAMETER |
WIRE |
WIRE
LOCATION |
HINGE WIDTH | |
| HINGES | HINGES | METAL |
4
(101.6) |
4½
(114.3) |
|||
| TA 714xCCxMM | TA 314xCCxMM |
.134
(3.40) |
.585
(14.86) |
1.125
(28.57) |
.812
(20.64) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| TA 786xCCxMM | TA 386xCCxMM |
180
(4.57) |
.720
(18.29) |
1.125
(28.57) |
.812
(20.64) |
1-9/16
(39.7) |
1-13/16
(46.0) |
| TA/TB 2714xCCxMM | TA/TB 2314xCCxMM |
.134
(3.40) |
.585
(14.86) |
1.125
(28.57) |
.688
(17.47) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| T4A/T4B 3786xCCxMM | T4A/T4B 3386xCCxMM |
.180
(4.57) |
.752
(19.10) |
1.062
(26.96) |
.750
(19.05) |
1-9/16
(39.7) |
1-13/16
(46.0) |
Template 321-17
Effective date: July 27, 2017
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size, wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
