View PDFArchitectural Door Accessories
McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise Concealed Circuit Hinges
| CATALOG NUMBER | GAUGE | "D" | "S" DISTANCE (SWAGE LINE) | ||
|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
OF
METAL |
OUTSIDE
DIAMETER |
HINGE WIDTH | |
|
4
(101.6) |
4½
(114.3) |
||||
| TA 2731xCC | TA 3331xCC |
.134
(3.140 |
.525
(13.33) |
1-11/16
(42.9) |
1-15/16
(49.2) |
| TA 3750xCC | TA 3350xCC |
.180
(4.57) |
.701
(17.80) |
** |
1-13/16
(46.0) |
Template 265-15
Effective date: September 8, 2015
Supercedes: All Previous

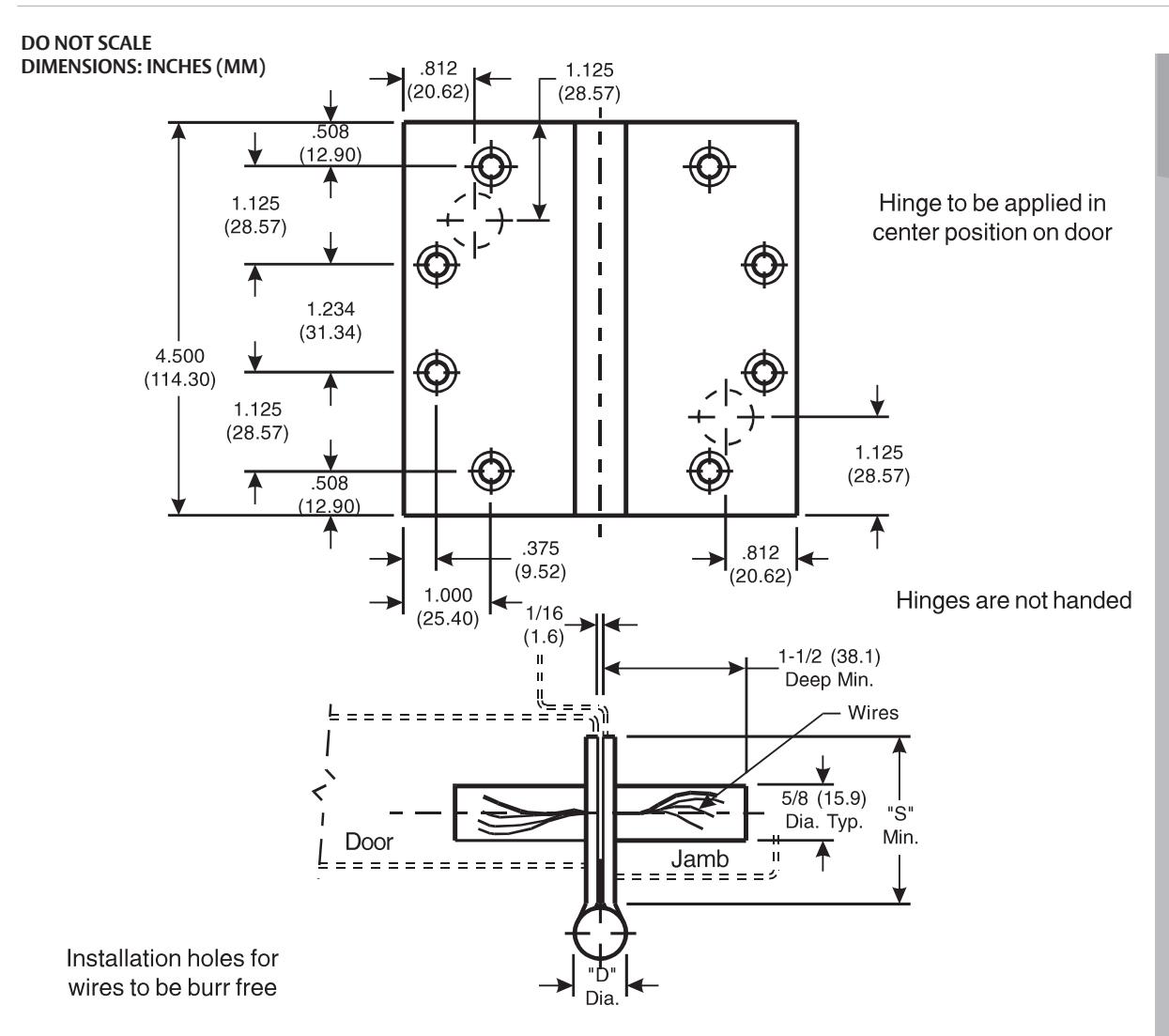

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
**Dimensions will be supplied upon request.
