McKinney 4.5 1502 and 1552 Spring Hinge Templates
Open the original PDF document
View PDFArchitectural Door Accessories
ASSA ABLOY

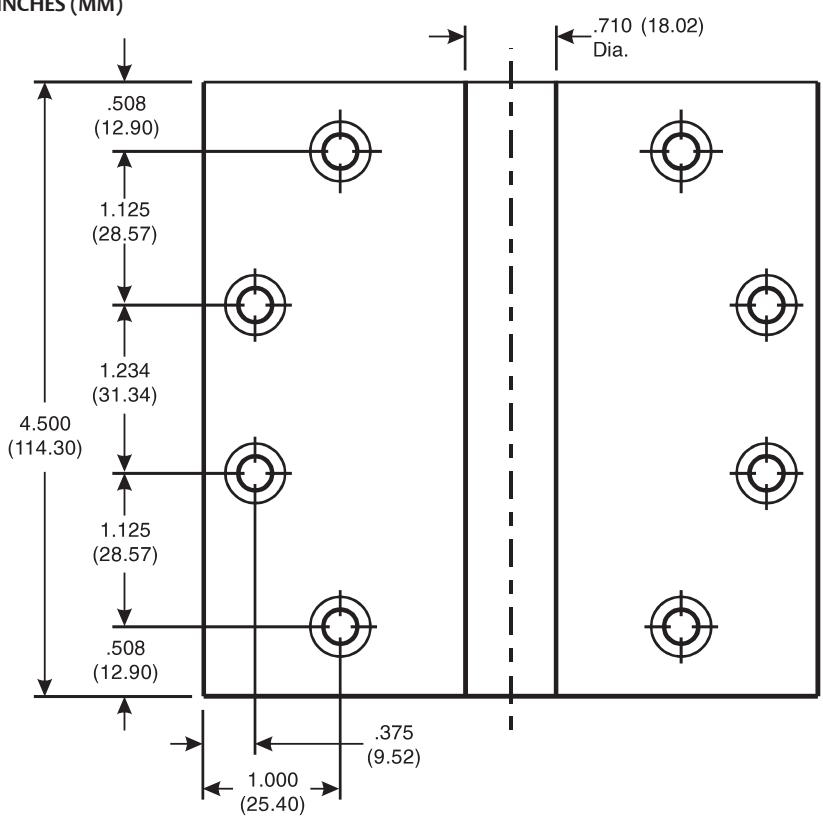

McKinney x 4, x 1502 Template Full Mortise Concealed Bearing Adjustable Spring Hinge
The global leader in door opening solutions
DO NOT SCALE DIMENSIONS: INCHES (MM)

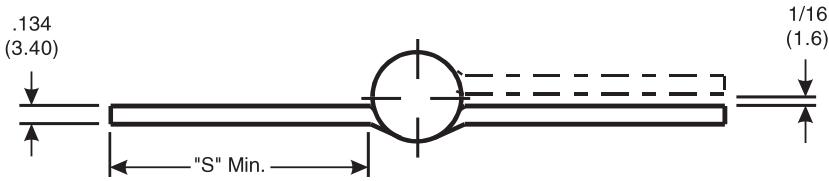

| CATALOG NUMBER | "S" DISTANCE (SWAGE LINE) | ||
|---|---|---|---|
|
STEEL
HINGES |
STAINLESS
STEEL HINGES |
HINGE WIDTH | |
|
4
(101.6) |
4½
(114.3) |
||
| 1502 | 1552 |
1-19/32
(40.48) |
1-27/32
(46.8) |
| 1522 Set | - |
1-19/32
(40.48) |
1-27/32
(46.8) |
Template 540-98
Effective date: March 30, 1998
Supercedes: All Previous
McKINNEY Template Full Mortise Concealed Bearing Adjustable Spring Hinges are made to conform to ANSI/BHMA 156.7.
Machine Screw Size: <sup>1</sup>/<sub>2</sub> x 12-24 F.H.
Wood Screw Size: 1<sup>1</sup>/<sub>4</sub> x 12 F.H.
