View PDFArchitectural Door Accessories

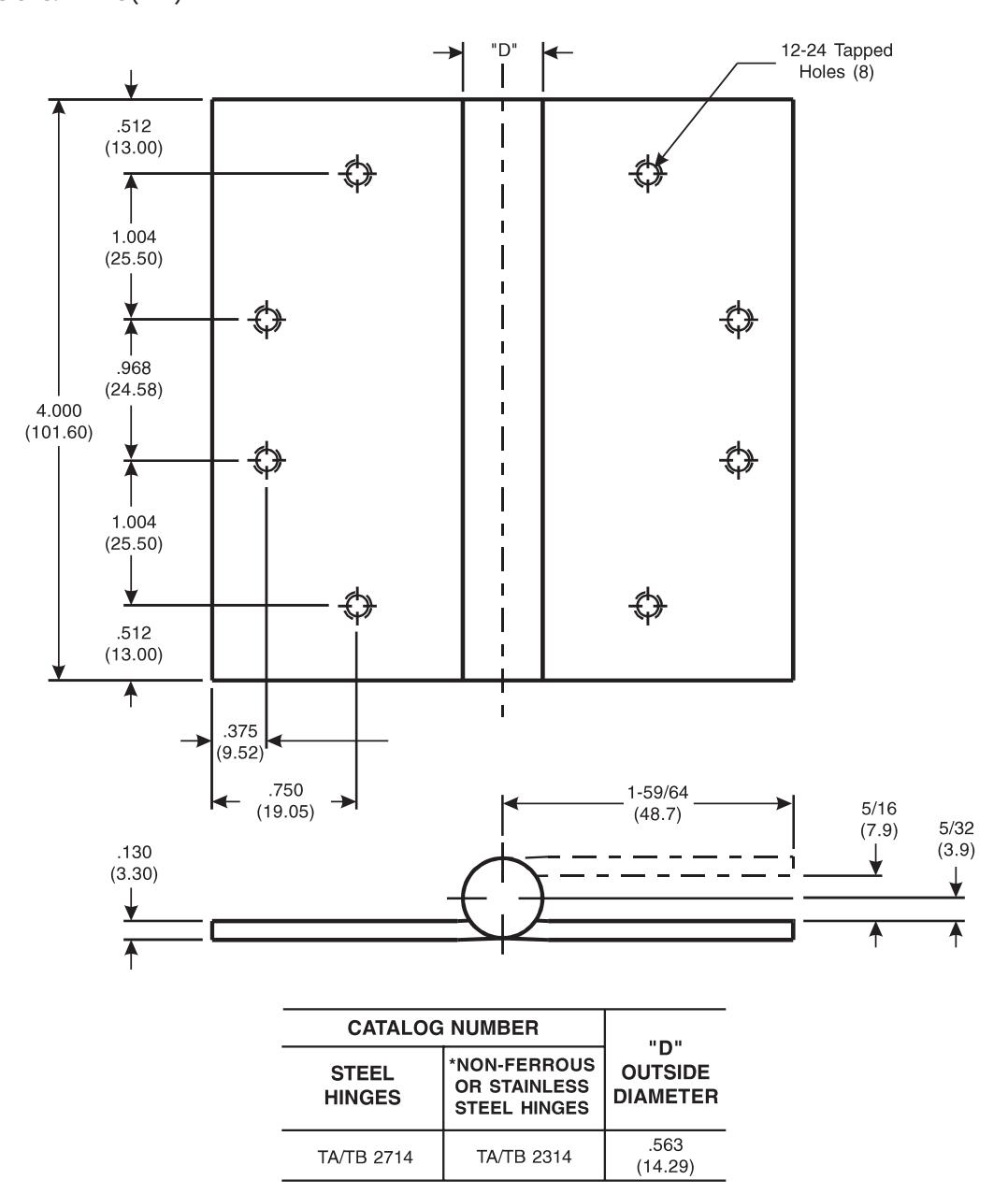

McKinney 4 x 4 Full Mortise Slip-In Type II Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
Template 060-15
Effective date: September 1, 2015
Supercedes: All Previous
McKINNEY Template Slipin Type II Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Machine Screw Size: 1/2 x 12-24 F.H.
*Check Catalog for Metals.
