McKinney 4 Type 1 Slip in Hinges Templates

Architectural Door Accessories

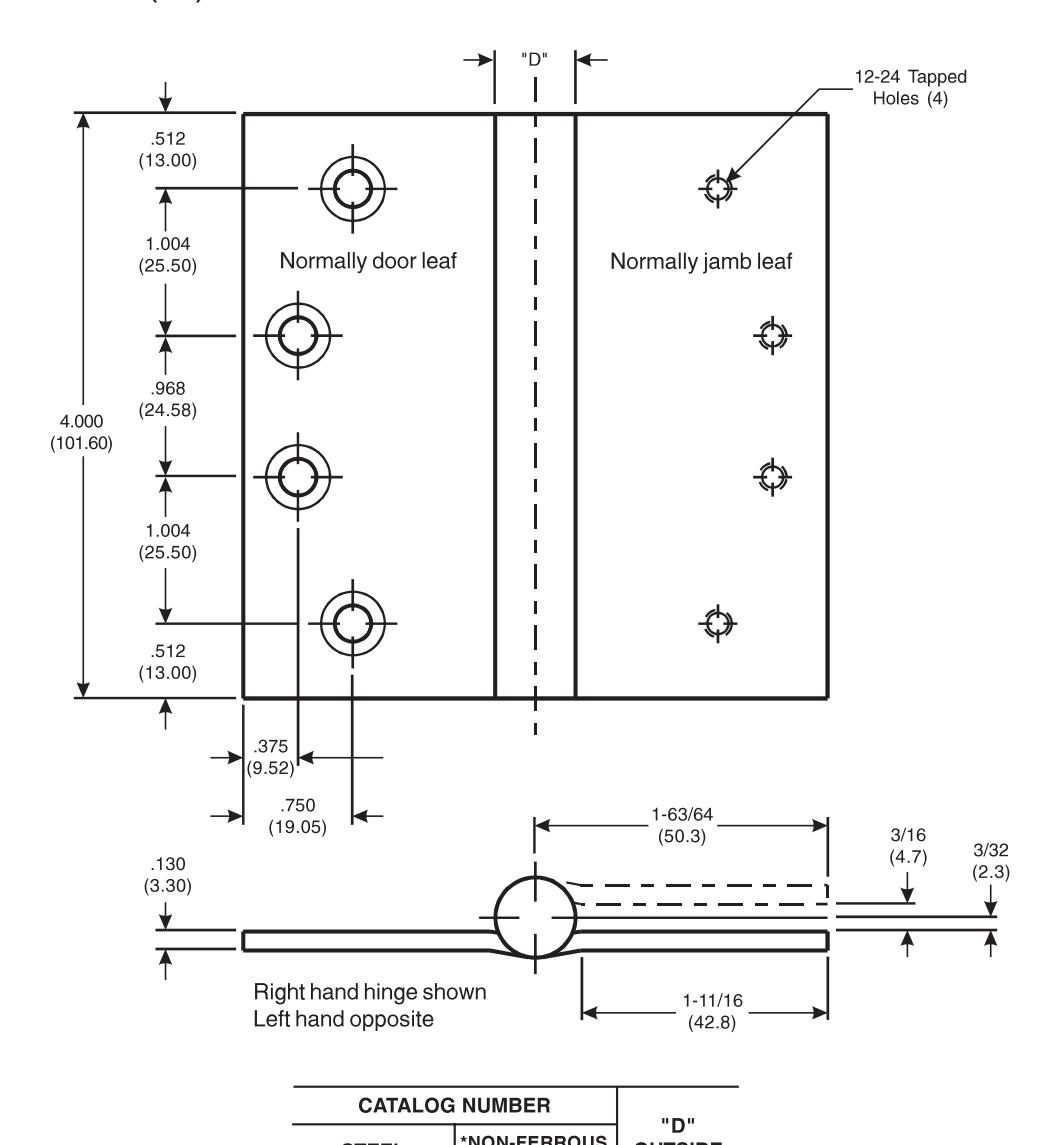

McKinney 4 x4 Full Mortise Slip-In Type I Template Hinges

DO NOT SCALE DIMENSIONS: INCHES (MM)

Template 050-15

Effective date: September 1, 2015

Supercedes: All Previous

McKINNEY Template Slip-In Type I Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

Hinges are handed.

*Check Catalog for Metals.
