McKinney 4 x 4, 4 x 6, 4 x 7 Full Mortise Template Hinges

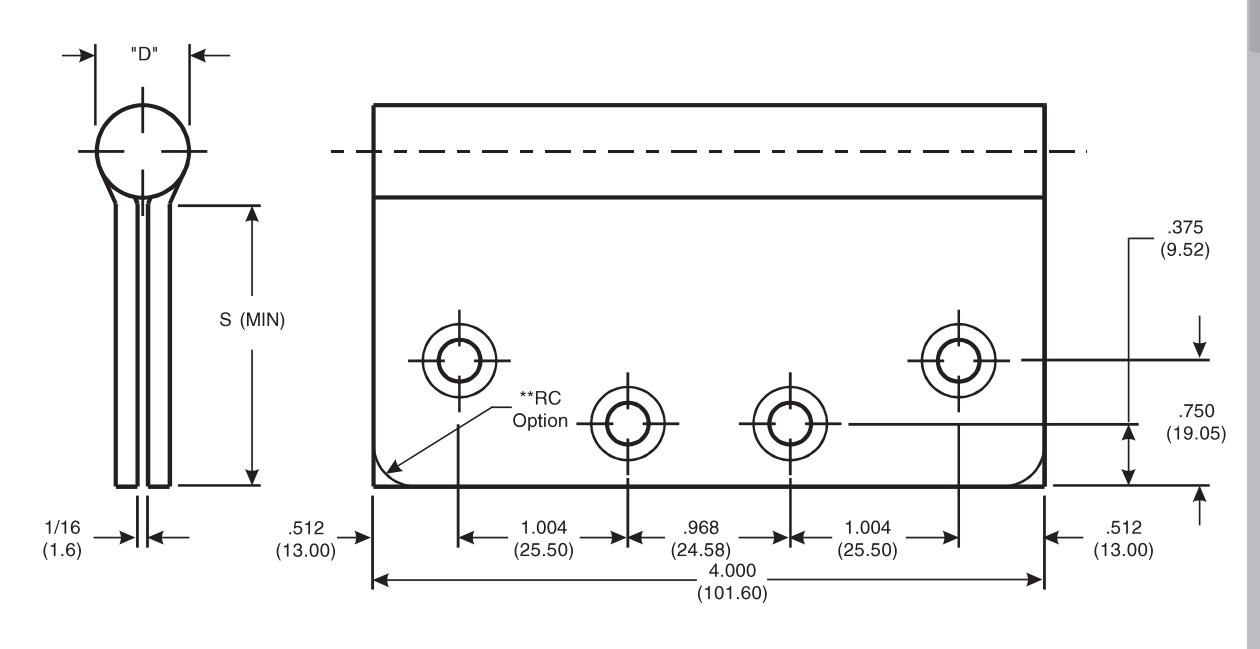

DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | CALICE | "D" | "S" DISTANCE (SWAGE LINE) | |||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-
FERROUS HINGES |
GAUGE
OF METAL |
OUTSIDE
DIAMETER |
HINGE WIDTH | ||
|
4
(101.6) |
6
(152.4) |
7
(177.8) |
||||
| TA 714 | TA 314 |
.130
(3.30) |
.550
(13.97) |
1-11/16
(42.9) |
- | - |
| T 2714 | T 2314 |
.130
(3.30) |
.550
(13.97) |
1-11/16
(42.9) |
- | - |
| TA/TB 2714 | TA/TB 2314 |
.130
(3.30) |
.563
(14.29) |
1-11/16
(42.9) |
- | - |
| TA 2731 | TA 3331 |
.130
(3.30) |
.525
(13.33) |
1-11/16
(42.9) |
- | - |
| TA/TB 2798 | - |
.130
(3.30) |
.563
(14.29) |
1 |
2-11/16
(68.3) |
3-3/16
(80.9) |
Template 025-15
Effective date: September 1, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
**Round Corner Option is available with 4 (6.3) or 8 (15.9) radii. If none is specified 4 (6.3) will be supplied.
