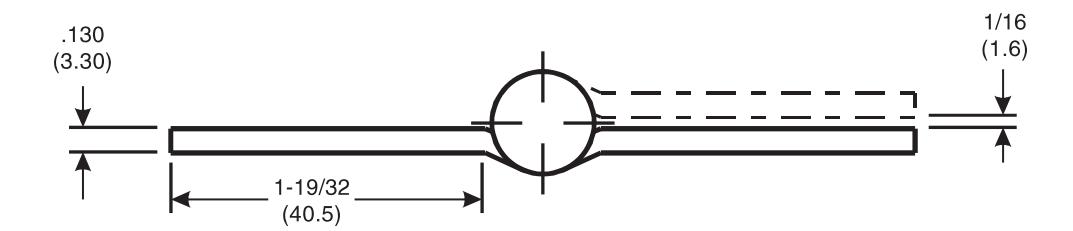

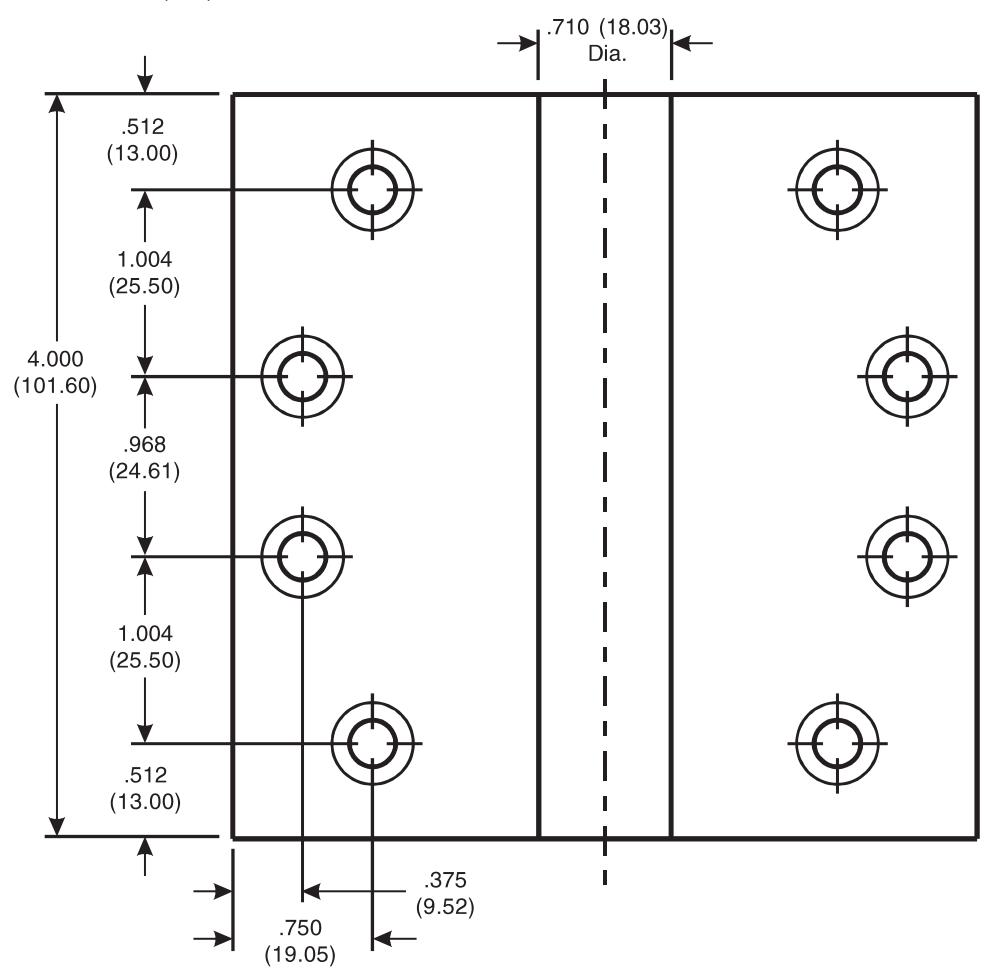

McKinney 4" - 1502 Template Full Mortise Concealed Bearing Adjustable Spring Hinge

DO NOT SCALE DIMENSIONS: INCHES (MM)

Effective date: March 30, 1998

Supercedes: All Previous

McKINNEY Template Full Mortise Concealed Bearing Adjustable Spring Hinges are made to conform to ANSI/BHMA 156.7.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/2 x 12 F.H.
