Architectural Door Accessories

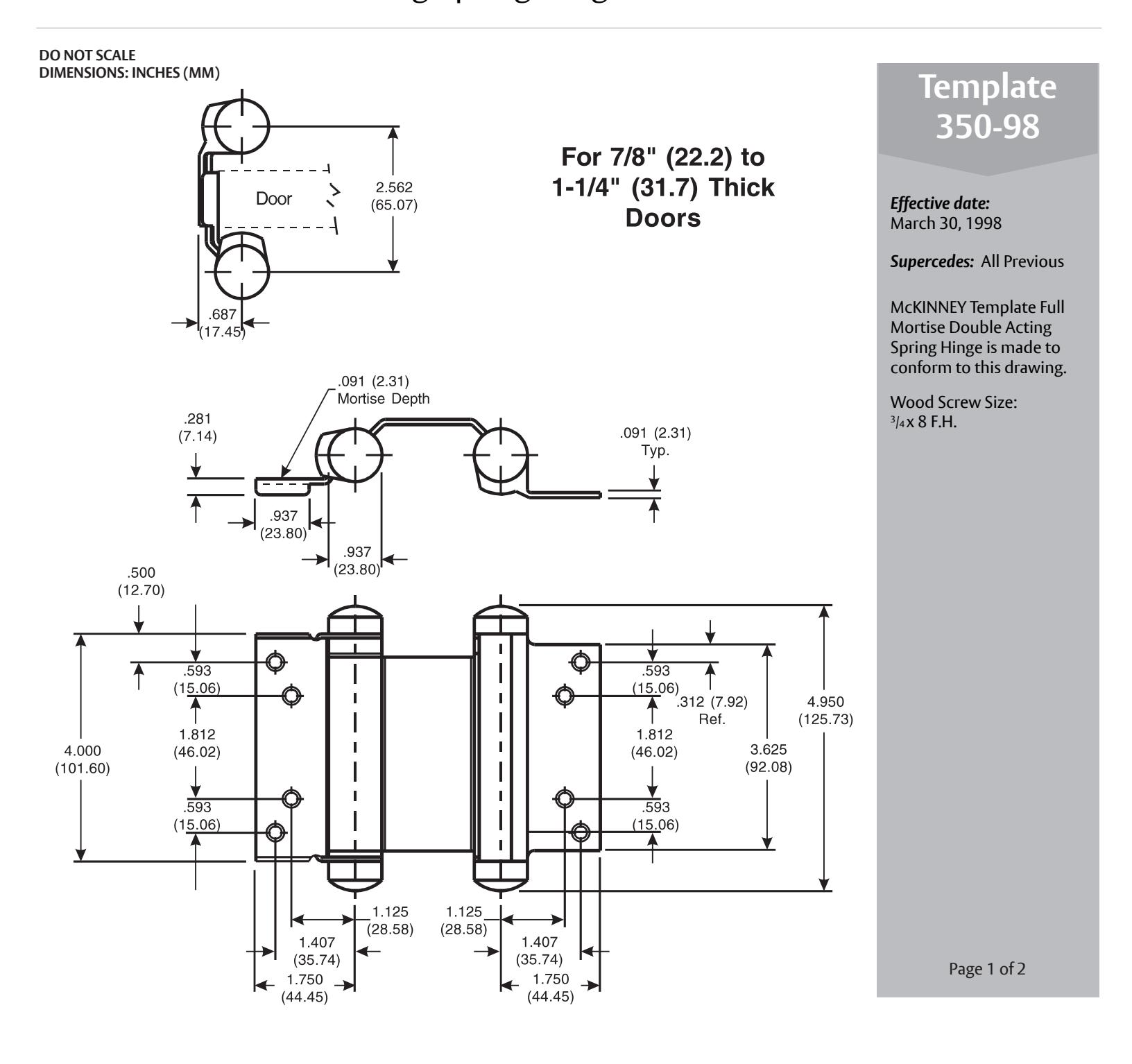

McKinney 4" - 1001 Template Full Mortise Double Acting Spring Hinge

DO NOT SCALE DIMENSIONS: INCHES (MM)

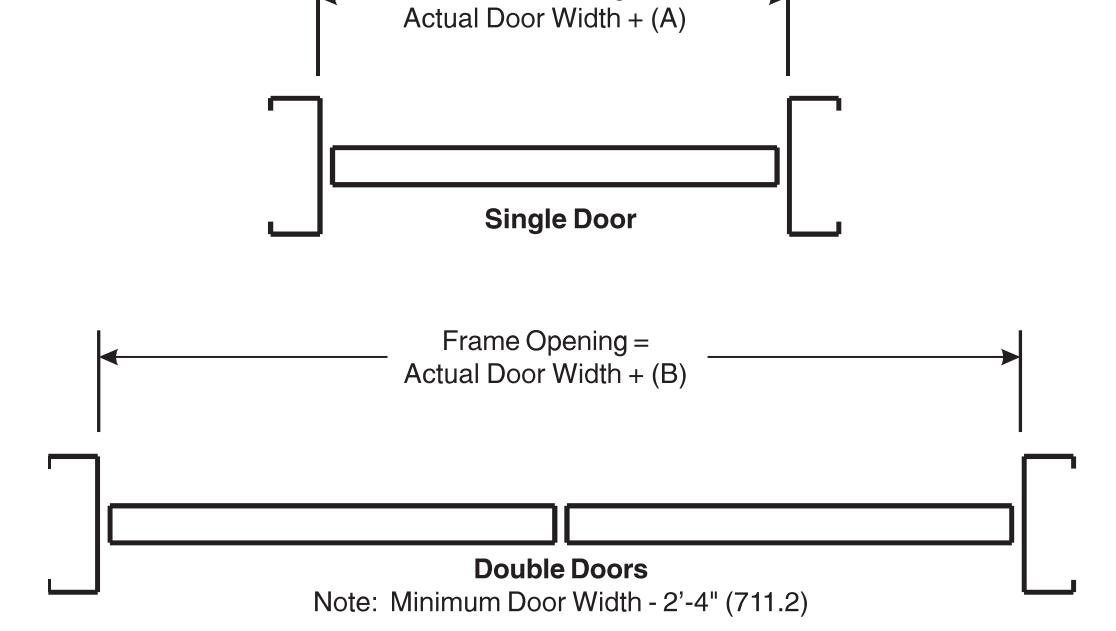

Frame Clearances
Hinge Mounting	Clearance (A)	Clearance (B)
Surface Applied	.470 (11.94)	.940 (23.88)
Door Flange Mortised	.379 (9.63)	.758 (19.25)

Template 350-98

Effective date: March 30, 1998

Supercedes: All Previous

Notes:

• 1. This hinge is not to be used on doors with hinge edge beveled.
• 2. Refer to catalog for door weight and hinge size.
• 3. Hinges should be inverted on one door of a pair for proper centering.

Page 2 of 2
