Architectural Door Accessories

McKinney 3001 Template Double Acting Horizontal Spring Pivot Hinge - Floor Mounted

Template 380-16

Effective date: March 31, 2016

Supercedes: All Previous

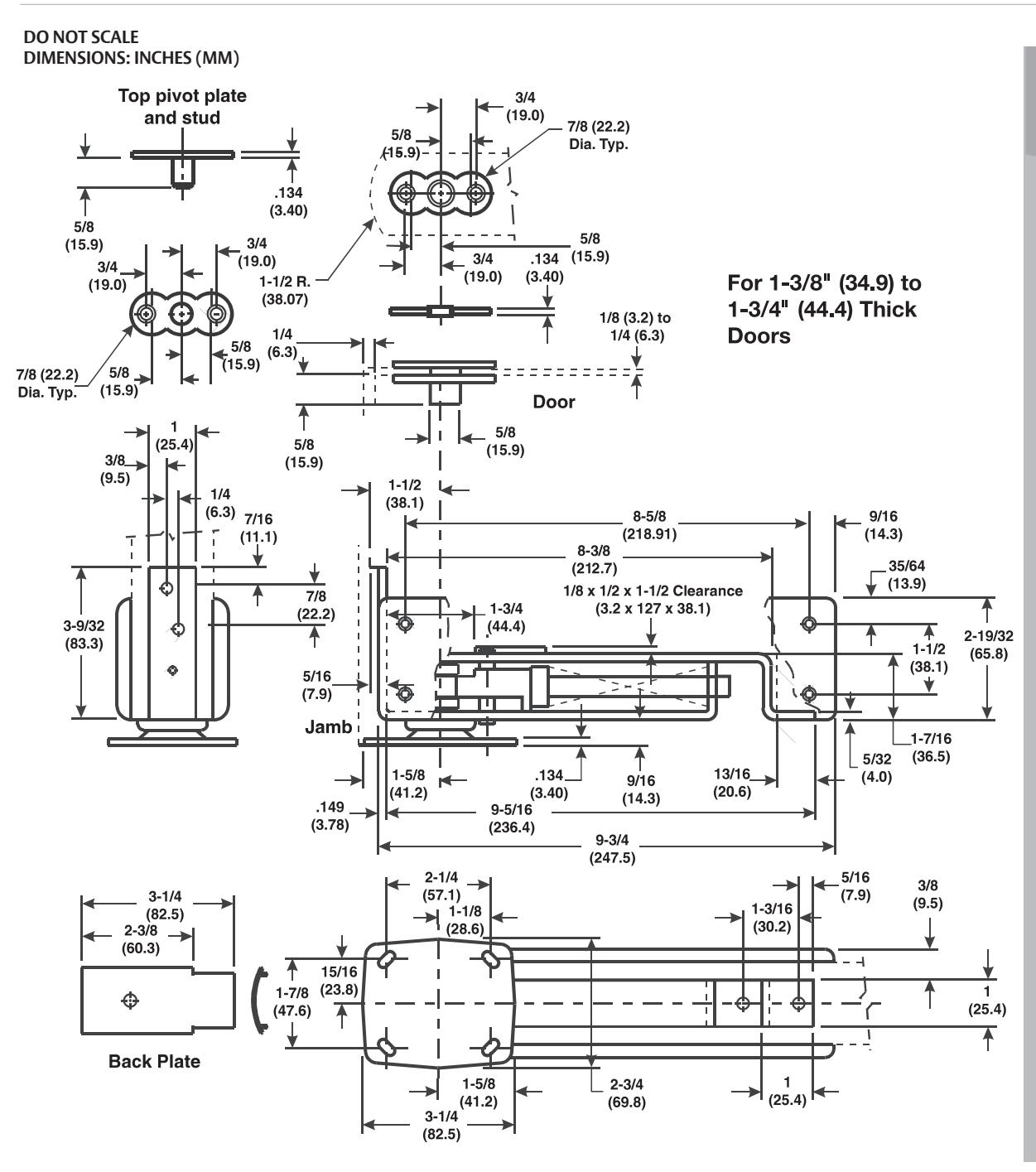

McKINNEY Template Double Acting Spring Pivot Hinge is made to conform to this drawing.

Machine Screw Size: Back Plate: 1/2 x 10-24 F.H.

Wood Screw Size: Frame & Floor Plate: 11/4 x 10 P.H. Top Pivot: 1 x 10 F.H. Side Plates: 3/4 x 6 F.H.
