McKinney 3.5 Full Mortise Hinges Template
Open the original PDF document
View PDFArchitectural Door Accessories

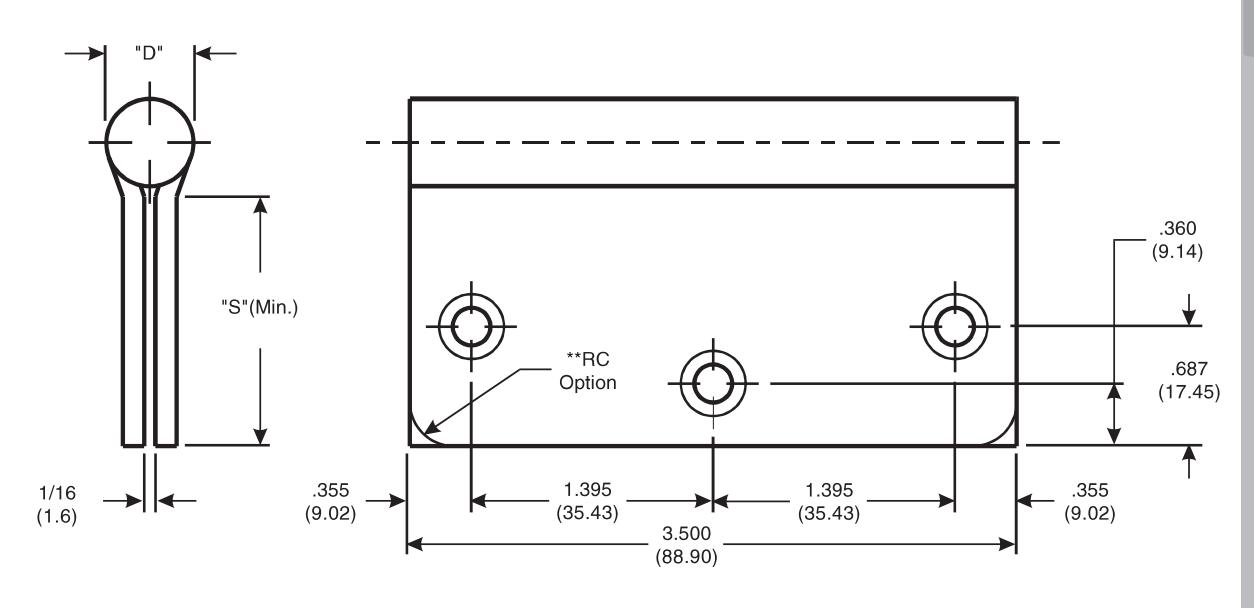

McKinney 31/2 x 31/2, 31/2 x 5, 31/2 x 6 Full Mortise Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | GAUGE | "D" | "S" DISTANCE (SWAGE LINE) | |||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-
FERROUS HINGES |
OF
METAL |
OUTSIDE
DIAMETER |
HINGE WIDTH | ||
|
3½
(88.9) |
5
(127.0) |
6
(152.4) |
||||
| TA 714 | TA 314 |
.123
(3.12) |
.530
(13.46) |
1-7/16
(36.5) |
- | - |
| T 2714 | T 2314 |
.123
(3.12) |
.530
(13.46) |
1-7/16
(36.5) |
- | - |
| TA/TB 2714 | TA/TB 2314 |
.123
(3.12) |
.563
(14.29) |
1-7/16
(36.5) |
- | - |
| TA 2731 | TA 3331 |
.123
(3.12) |
.503
(12.78) |
1-7/16
(36.5) |
- | - |
| TA/TB 2798 | - |
.123
(3.12) |
.563
(14.29) |
- |
2-3/16
(55.6) |
2-11/16
(68.3) |
Template 020-15
Effective date: September 1, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: 1/2 x 10-24 F.H.
Wood Screw Size: 1 x 10 F.H.
*Check Catalog for Metals.
**Round Corner Option is available with 1/4 (6.3) or 5/8 (15.9) radii. If none is specified 1/4 (6.3) will be supplied.
