McKinney 3 HS1001 Double Acting Spring Hinge Templates

McKinney 3" - HS1001 Template Half Surface Double Acting Spring Hinge

Template 370-98

Effective date: March 30, 1998

Supercedes: All Previous

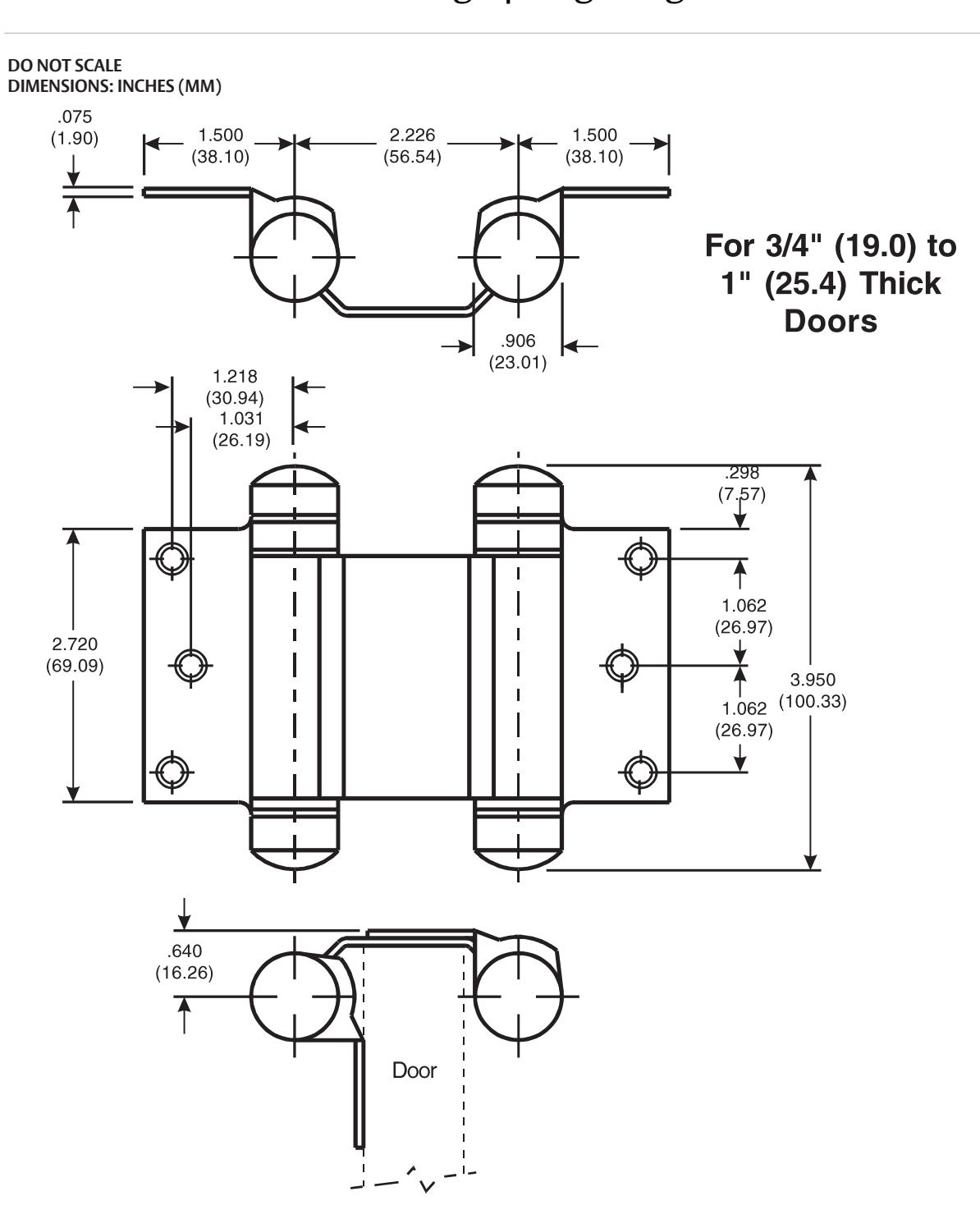

McKINNEY Template Half Surface Double Acting Spring Hinge is made to conform to this drawing.

Wood Screw Size: 3/4 x 7 F.H.
