McKinney 3 1001 Double Acting Spring Hinge Templates
Open the original PDF document
View PDFArchitectural Door Accessories

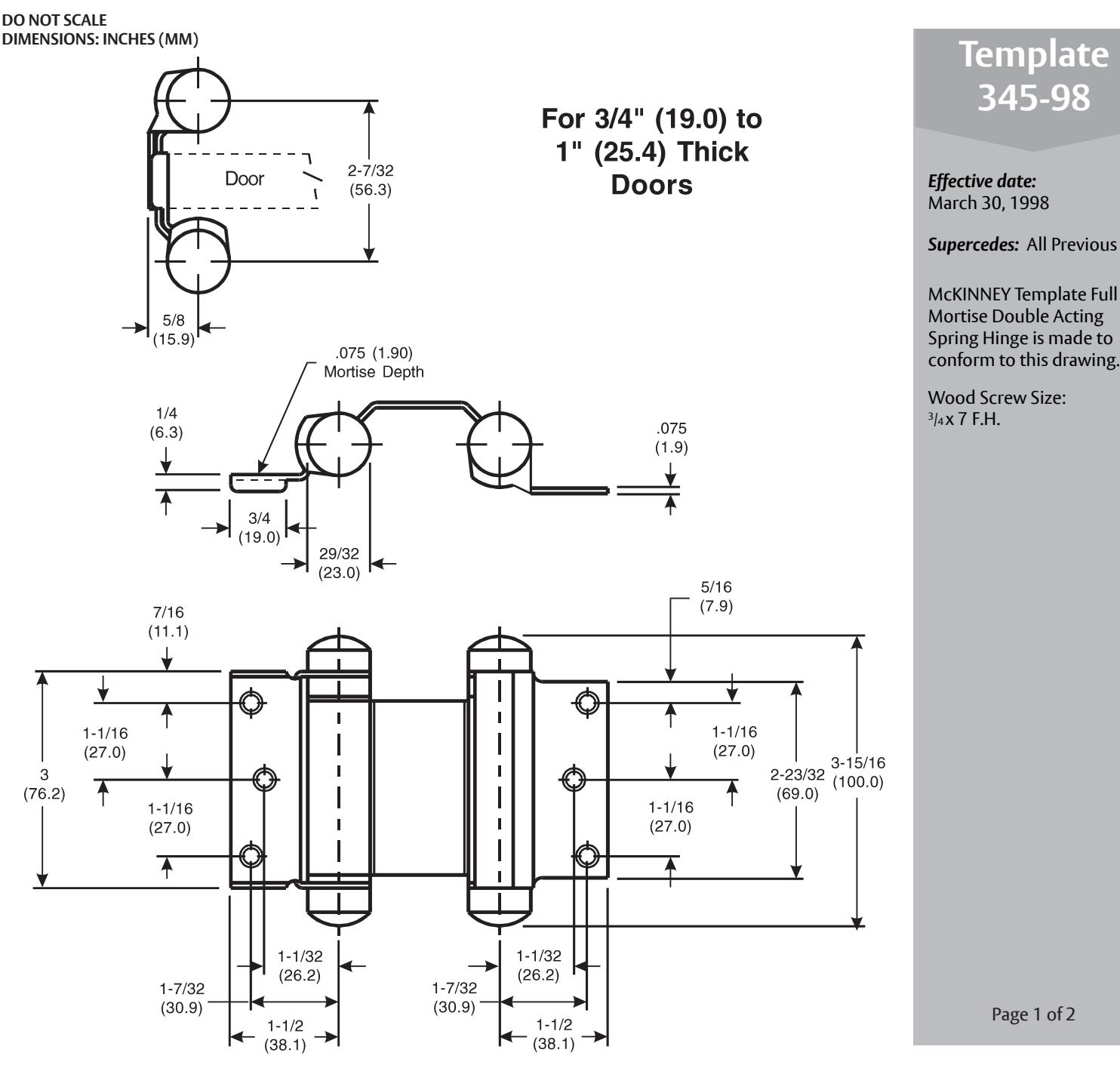

McKinney 3" - 1001 Template Full Mortise Double Acting Spring Hinge
Supercedes: All Previous
McKINNEY Template Full Mortise Double Acting Spring Hinge is made to
DO NOT SCALE DIMENSIONS: INCHES (MM)

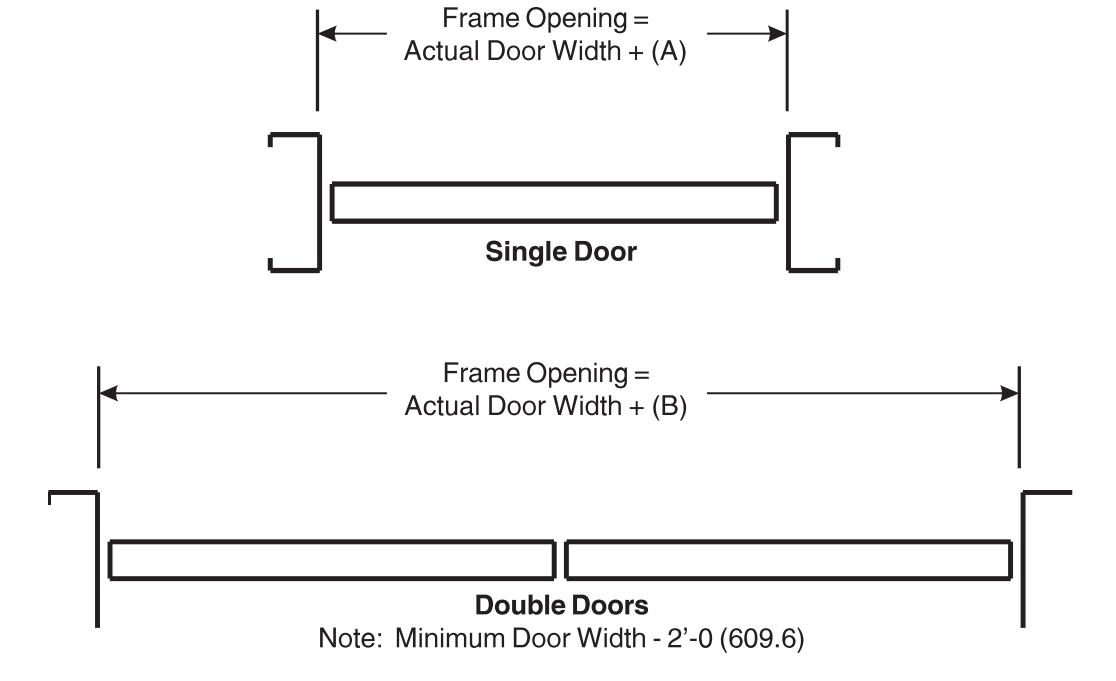

| Frame Clearances | ||
|---|---|---|
| Hinge Mounting | Clearance (A) | Clearance (B) |
| Surface Applied | .422 (10.72) | .844 (21.44) |
| Door Flange Mortised | .347 (8.81) | .694 (17.63) |
Template 345-98
Effective date: March 30, 1998
Supercedes: All Previous
Notes:
- 1. This hinge is not to be used on doors with hinge edge beveled.
- 2. Refer to catalog for door weight and hinge size.
- 3. Hinges should be inverted on one door of a pair for proper centering.
Page 2 of 2
