McKinney 10’0 Mounting Hole Pattern Templates

Open the original PDF document

View PDF

Architectural Door Accessories

ASSA ABLOY

The global leader in door opening solutions

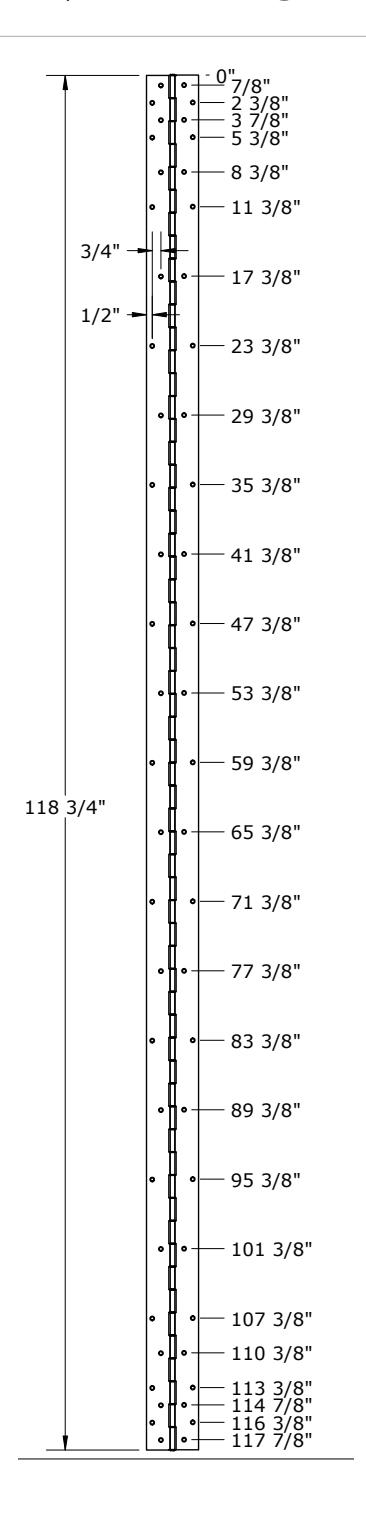

McKinney 10'0" (118.75") Mounting Hole Pattern

DO NOT SCALE DIMENSIONS: INCHES

Template 120-15

Effective date: February 3, 2015

Supercedes: All Previous

USING THE ACTUAL HINGE AS THE TEMPLATE IS HIGHLY RECOMMENDED.

Dimensions shown are for hinge models listed below.

Both Frame and Door Leaf MCK-FM300, MCK-FM327, MCK-FM3500, MCK-FM3700, MCK-HG305, MCK-HG3505, MCK-HG315, MCK-HG322, MCK-HG326

Door Leaf Only MCK-HG306, MCK-HG310, MCK-HG311, MCK-HM304

Frame Leaf Only MCK-HG323, MCK-HS303, MCK-HS3703
