Perfect Exit Device: A Lifetime of Value Virtually Anywhere
Marks USA X-it™ Exit Devices
- •Ultra-Durable, heavy gauge extrusion, 32D Finish
- •Marks Lifetime Mechanical Warranty
- •Steel flush mounted Panic Protector™ End Cap
- •Easy Installation & Retrofits All Popular Preps
- •ANSI 156.3 (2001), Grade 1
- •M9900 is 3 Hour Fire Rated Dead Latch Bolt; Stainless Steel 3/4" Throw

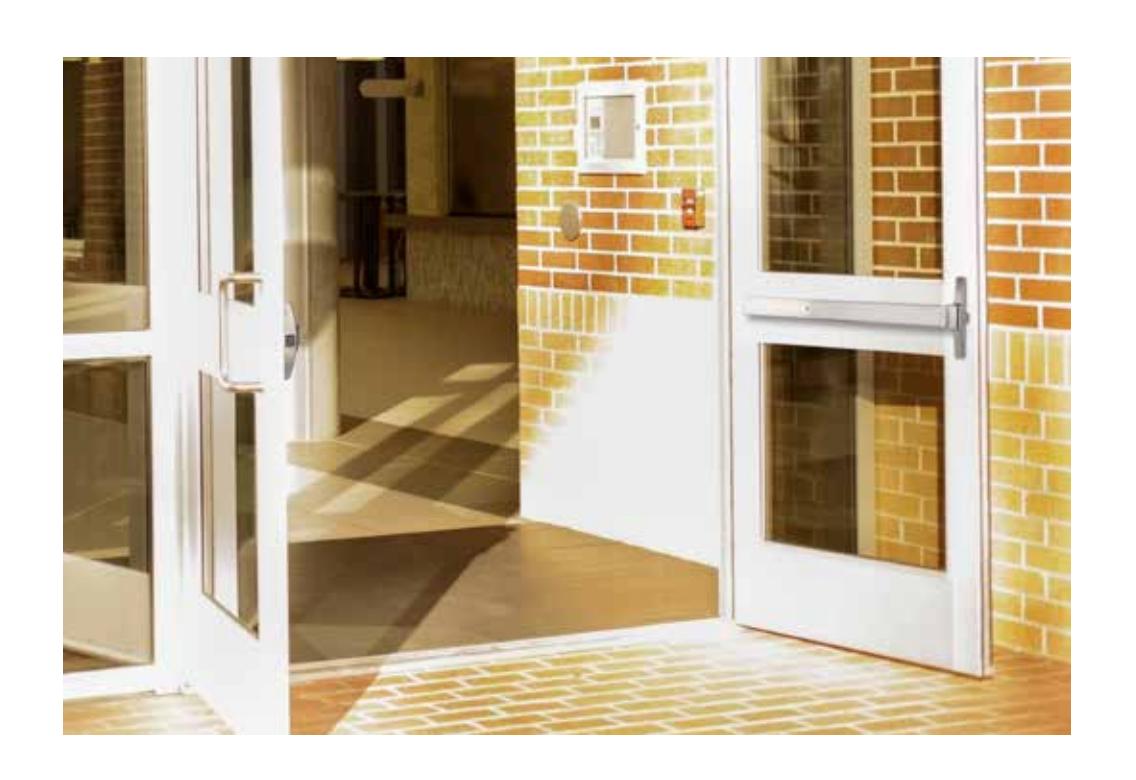

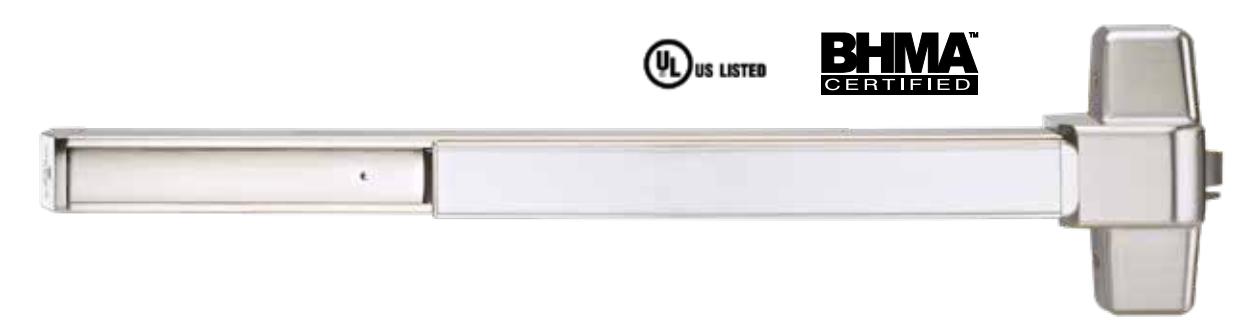

Marks X-it™ M9900 Panic Exit Devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted Panic Protector™ End Caps, prevent abuse.

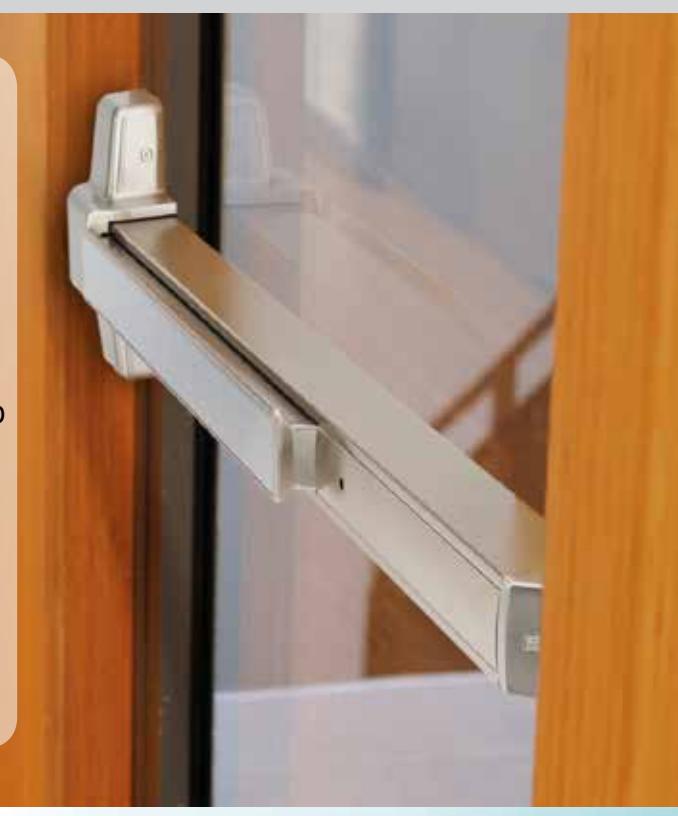

Marks X-it™ M8800 Narrow Stile Exit Device is designed for use on all types of narrow stile single and double doors, of either 36" or 48" door width, and conveniently, non-handed for installation flexibility.
Marks also stands behind its products with a Lifetime Mechanical Warranty, an industry first. In compliance with ANSI BHMA A156.3 Grade 1, ANSI/UL305 panic hardware and 2013 CA Building Code 11B-309.4, etc.
SPECIFICATIONS:
- End Cover: Stainless steel beveled "Panic Protector" design
- Strike: Roller strike
- Rail Assembly: Heavy Gauge Stainless Steel
- Dead latch Bolt: Stainless Steel 3/4" throw
- Dead latch Bolt: Stainless Steel 5/8"
- Dogging feature : Allen Key (M9900)
- UL listed: For "Panic Hardware" and Fire Rated Model 3 hour fire doors up to 38" x 86"
- ANSI: ANSI 156.3 (2001), requirements for Grade 1
- 3 Hour Fire Rating
- Finished: Stainless steel satin finish
| MARKS # | FUNCTION |
|---|---|
| M9900 | Rim Panic |
| M9900F | Fire Rated Rim Panic |
| M9900 - 48 | Rim Panic - 48" |
| M9900F - 48 | Fire Rated Rim Panic - 48" |
| OPTIONS | ||
|---|---|---|
| M9900 | 33" Length for 38" Door | |
| M9900-48" | 42" Length for 48" Door | |
Rim Panic Vandal Pull w/ cylinder hole MVPCC/32D (cylinder not included)
M9900 Exterior Trim
Cylindrical Dogging Kit - 32D M9901, M9902
ENTRY LEVER TRIM:
- Standard Marks "C" Keyway KNK cylinder for panic device.
- Cylinder locks or unlocks lever, rigid when locked; when unlocked retracts latch bolt
- Marks 26D Finish / Standard 1-3/4" Door Thickness
- IC Prep Code G1, Less Cylinder G3
ESCUTCHEON LEVER DESIGN:
- Thru bolt design
- Non Handed design. Easily field reversible
- Marks 32D Finish / Standard 1-3/4" Door Thickness
- Standard Marks "C" Keyway 1-1/4 Mortise cylinder with special cam
- IC Prep Code G1
- Less Cylinder G3

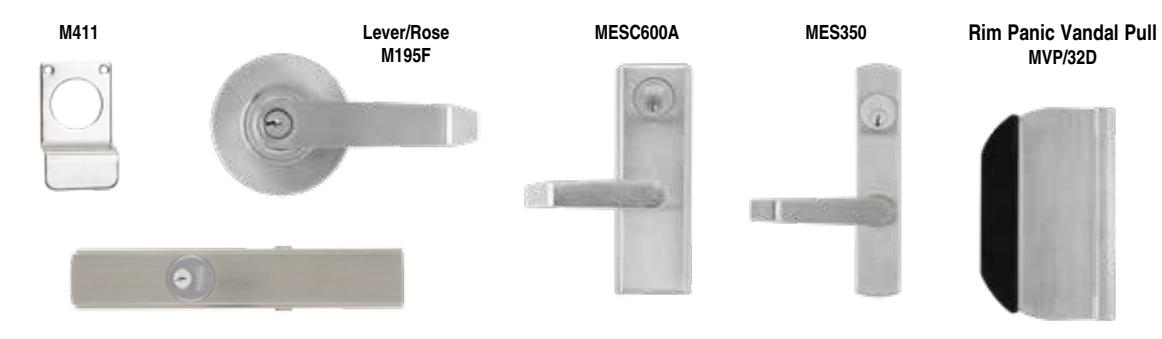

| MARKS # | DESCRIPTION |
|---|---|
| M411 | Finger Pill - no cylinder |
| MLHL-650A | Lever / Rose Trim Entry |
| MLHL680F | Lever / Rose Trim Storeroom |
| MLHL-600N | Lever / Rose Trim Passage |
| MLHL-600DT | Lever / Rose Trim Dummy Trim |
| MESC600A | Lever / Escutcheon Trim Entry |
| MESC600F | Lever / Escutcheon Trim Storeroom |
| MESC600N | Lever / Escutcheon Trim Passage |
| MESC600DT | Lever / Escutcheon Trim Dummy Trim |
| M9901 | 36 inch Panic Device Dogging Kit |
| M9902 | 48 inch Panic Device Dogging Kit |
| MVR8 | Vertical Rod 8 ft extension - Code 8 |
| MVR10 | Vertical Rod 10 ft extension - Code 10 |
| MVRB | Vertical Rod - Bottom Rod |
| MVP/32D | Rim Panic Vandal Pull |
| MVPCC/32D | Rim Panic Vandal Pull w/ cylinder hole |

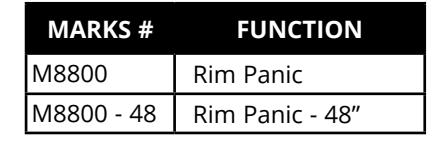

M8800 Narrow Stile Exit Device
SPECIFICATIONS:
- • Specification: Conforms to ANSI BHMA A156.3 Grade 1 Exit Device Requirement Standard ANSI/UL305 Standard for Safety for Panic Hardware 2013 California Building Code Sec. 11B-309.4
- • For Doors: (Please specify when ordering non standard size doors) Thickness: Standard 1 3/4", may fit with door thickness up to 2" Width: Standard 36" or 48", may fit door width 30"~48"
- • Mounting: Furnished Standard with Wood and Machine Screws
- • Head Cover: Zinc Alloy
- • Chassis: Aluminum
- • Rail Assembly : Heavy Gauge extruded aluminum with stainless steel on top of touch bar
- • End Cap: Zinc Alloy
- • Hand: Non-handed
- • Latch Bolt: Stainless Steel, 3/4" (18mm) throw
- • Strike: Roller Strike (Stainless Steel)
- • Dogging: Allen Key (equipped on panic rate devices only)
- • Finish: 32D: Satin Stainless Steel Finish 10B: Oil Rubbed Bronze Finish
- • Dimension: Touch bar height from finished floor: 41" (1041mm) from center of touch bar Touch Bar Projection: Neutral: 3 5/16" (84mm)
Depressed: 2 19/32" (66mm)
Head Cover: LxWxH: 206mm x 76mm x 71mm
Device Length: 34 5/8" (88cm) for 36" door width 46 5/8" (118.5 cm) for 48" door width

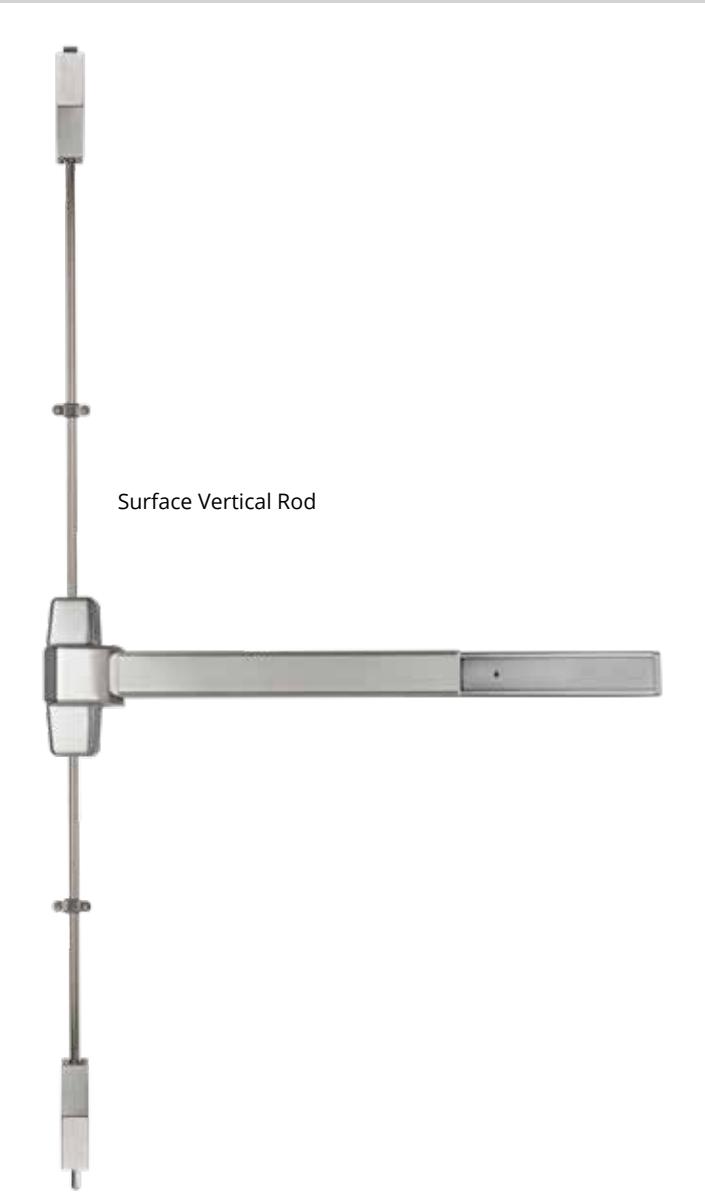

M9900 VR Exit Device
SPECIFICATIONS:
- Device Head Cover: Zinc alloy or stainless steel
- Chassis: Steel, plated
- Mechanism Housing: Extruded aluminum
- Push Bar Base: Extruded aluminum
- Touch Plate: Stainless Steel
- End Cap: Stainless Steel
- Top Latch: Stainless Steel 37/64" (14.8mm)
- Top Strike: Included
- Bottom Latch: Stainless Steel 37/64" (14.8mm)
- Bottom Strike: Included
- Latch Case Covers: Steel, stainless steel or brass
- Vertical Rods: Aluminum tube
- Hand: Non-handed
- Mounting: Machine screws standard. Sex bolts optional. Order "SNB" for wood or unreinforced metal doors
- Dogging : Allen-type key furnished
- Finish: 32D
- Outside Trim: Order separately
- Standard Height: 7' doors
- UL listed: ANSI/BHMA Grade 1 Panic Exit Hardware
- 3-Hour Fire Rated
APPLICATION:
- For use on single door or pair of doors
- 1 3/4" (44 mm) door thickness standard. Specify thickness other than 1 3/4"
- RHR or LHR hollow metal, wood and mineral core doors
- Minimum Stile Width: 3 1/2" (89 mm)
