Reverse Handing Installation Instructions© for 7 & 9 Series Mortise Locksets

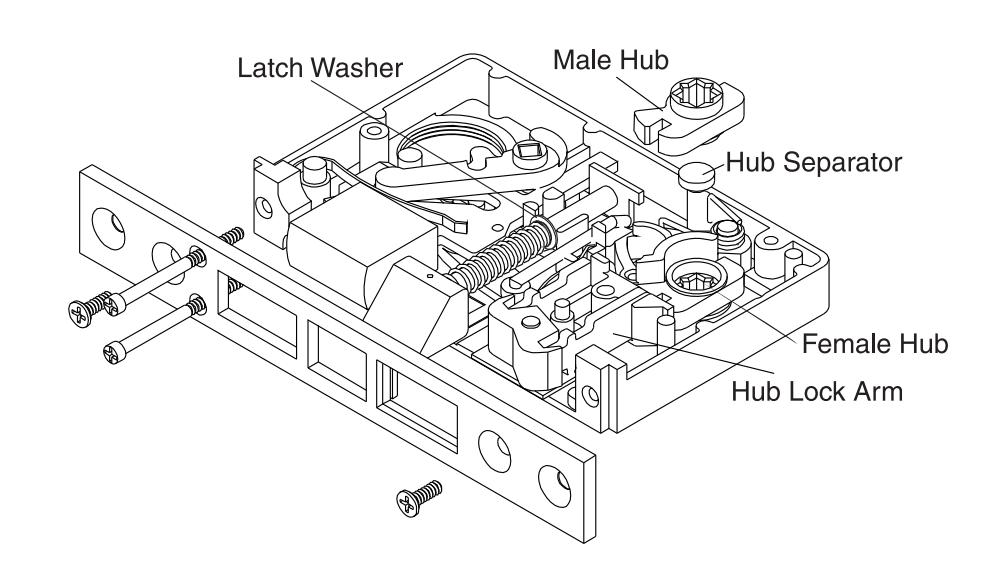

- 1.Remove lock body cover (3 screws).
- 2.Remove latch, turn over and re-insert. Note position of latch washer.
- 3.Remove hub lock arm, turn over and re-insert.
- 4.Replace cover and re-fasten.
