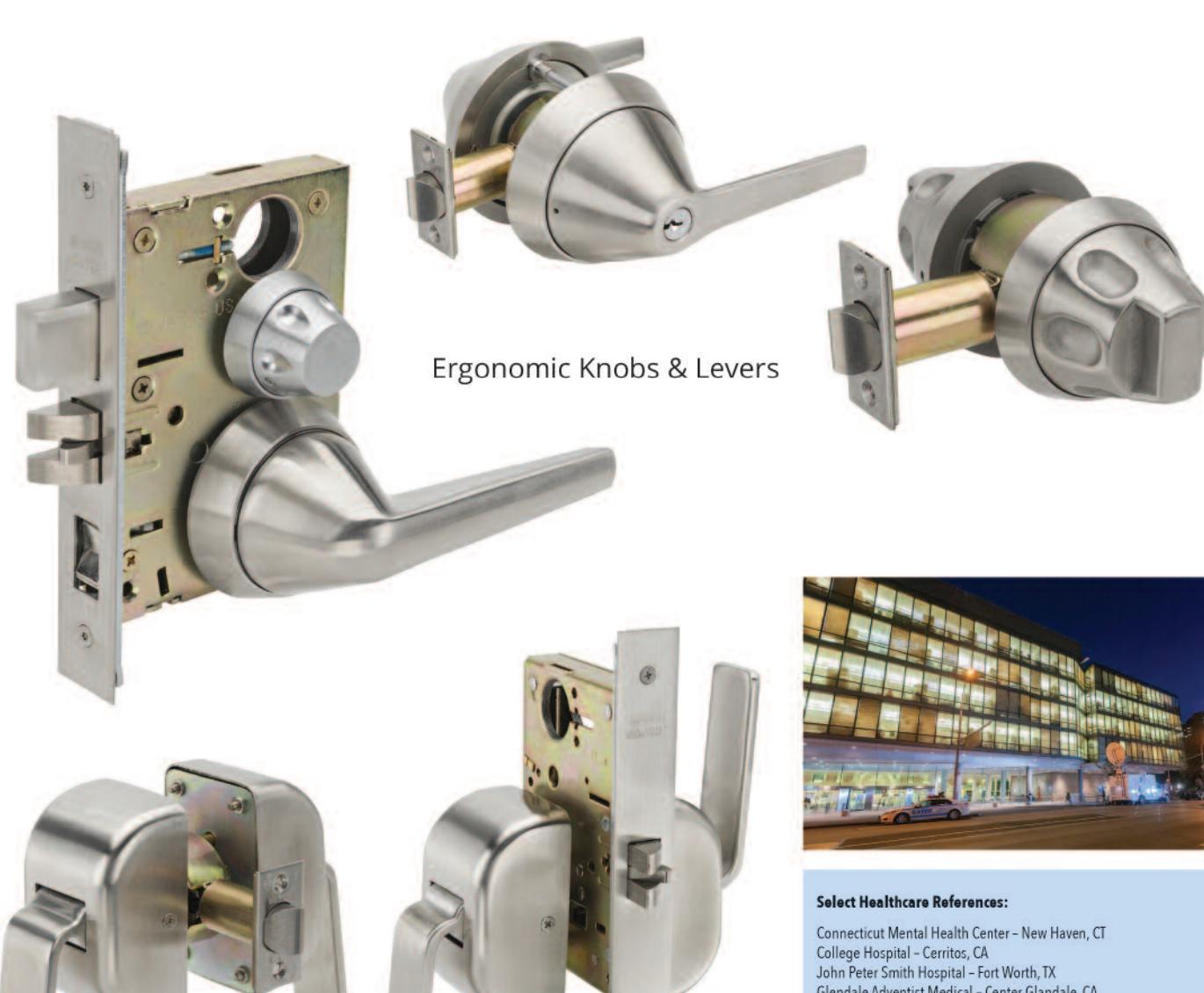

View PDFLifeSaver™ Anti-Ligature Life Safety Lock Series
Glendale Adventist Medical - Center Glandale, CA Rusk State Hospital - Rusk, TX Houston Behavioral Healthcare - Center Houston, TX Coney Island Hospital - Brooklyn, NY Jacobi Medical Center - Bronx, NY Bellevue Hospital Center - New York, NY Woodhull Medical and Mental Health Center - Brooklyn, NY Dallas Behavioral Healthcare Hospital - DeSoto, TX Allegiance Specialty Hospital - Kilgore, TX Elmhurst Hospital Center - Elmhurst, NY Kindred Hospital New Orleans - New Orleans, LA North Central Bronx Hospital - Bronx, NY Bournewood Hospital - Chestnut Hill, MA St. Josephs Healthcare London - London, ON, CA St, Josephs Healthcare Hamilton - Hamilton, ON, CA Santa Clara Valley Medical Center - Santa Clara, CA St. Thomas Elgin General Hospital - St. Thomas, ON, CA Waypoint Centre for Mental Healthcare - Penetanguishene, ON, CA
Push/Pull Paddlesets

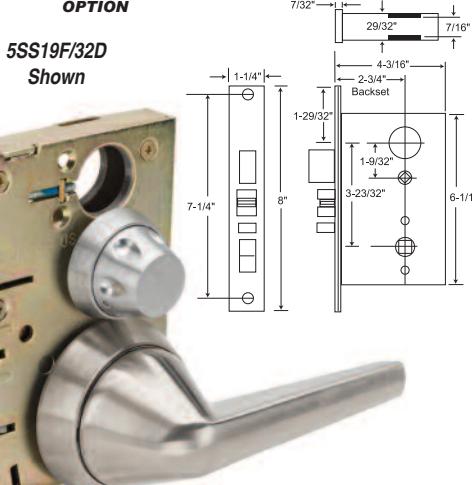

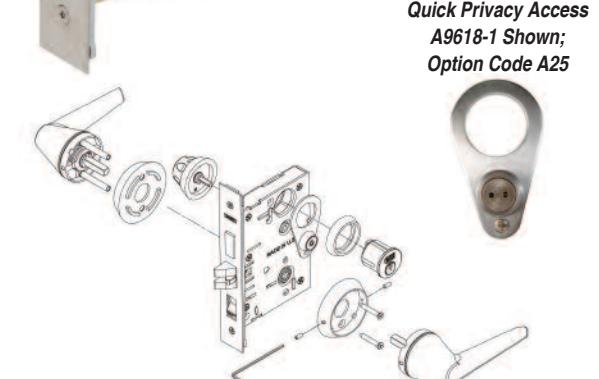

Series SS19 Institutional Life Safety Mortise Locksets - Levers
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of ANSI
specifications A156.13-2005 for series 5000, Grade 1.
Standard Features
Trim Specifications:
Exterior & Interior Trim:
• Solid stainless steel interior and exterior tapered knobs or levers recessed into thru-bolted roses.
• Safety knobs with recessed grip and finger indents (Patent #D587556). Safety lever for handicapped access on clutch operated Mortise lock.
• Ergonomically designed grooved turn knob for deadbolt functions.
Cylinder: Solid stainless steel cylinders with solid stainless steel security collars; Optional HI-SECURITY™ cylinders available
Strike: 4-7/8" curved lip stainless steel w/tamperproof screws
Door Thickness: 1-3/4" standard; Extended range available Door Prep: ANSI A115.1 lock face cutout, with 2-1/8" through
hole for knob/rose assembly
Lock Specifications: 5 Series (2-3/4" Backset) 55 Series (2-1/2" Backset)
Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick,
Cover plate 1/16" thick with tamper proof screws Latch: Solid stainless steel with antifriction latch lever,
3/4" throw (reversible)
Levers: Solid cast stainless steel. Levers Rotate up & down freely in
locked or unlocked position
Aux. Deadlatch: 1/2" throw, (reversible)
Case: Stamped steel 3/32" thick, zinc dichromate finish
Hubs: Steel, 9/32" on diamond, 5/16" on square w/security separator
Hub Lock Arm: (to lock hub) Steel 1/8" thick Spindles: Independent spring-loaded spindles
| SERIES | |||
|---|---|---|---|
| MARKS # | 5 & 55 SS19 | ||
| COMM. | FUNCTION | ANSI # | FINISH |
| CYL. | GROUPS | ||
| KEYED SINGLE CYLINDER, NO DEADBOLT | |||
| D | OFFICE VEST. | ||
| DW | VESTIBULE | ||
| E | OFFICE | F04 | |
| EW | STOREROOM | F07 | |
| J | CLASSROOM | F05 | |
| JM, JR | HOSPITAL | F06 | |
| GL | INSTITUTIONAL PRIVACY | F26 | |
| EL | ELECTRICALLY LOCKED | ||
| EU | ELECTRICALLY UNLOCKED | ||
| KEYED SINGLE CYLINDER, WITH DEADBOLT | |||
| A | ENTRANCE | F08, F10 | |
| B | ENTRANCE | F21 | |
| F | DORMITORY | F12 | |
| FS | DORMITORY | ||
| FW | DORMITORY | F13 | |
| FD | APARTMENT | F20 | |
| H | HOTEL | F15 | |
| LH | SPECIAL PRIVACY | ||
| KEYED DOUBLE CYLINDER, NO DEADBOLT | |||
| G | APARTMENT | F09 | 32D |
| GC | INTRUDER LATCHBOLT | F32 | |
| GG | CLASSROOM SECURITY | ||
| GR | CLASSROOM SECURITY w/HOLDBACK | ||
| WW | INSTITUTIONAL | F30 | |
| KEYED DOUBLE CYLINDER, WITH DEADBOLT | |||
| AC | ENTRANCE | F35 | |
| C | STOREROOM | F14 | |
| FC | INTRUDER DEADBOLT | F34 | |
| FA | DORMITORY | F11 | |
| FX | DORMITORY | F33 | |
| KEYLESS | |||
| N | PASSAGE | F01 | |
| L | BATHROOM | F02 | |
| LF | PRIVACY | F19 | |
| LJ | PRIVACY | F22 | |
| EX | EXIT | F31 | |
| DUMMY TRIM | |||
| DI | DUMMY TRIM INSIDE | ||
| DO | DUMMY TRIM OUTSIDE | ||
| DT | FULLY DUMMY | ||
Standard & HI-SECURITY™ IC Core Models: *
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best
IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER ie: 5SS55RA/32D

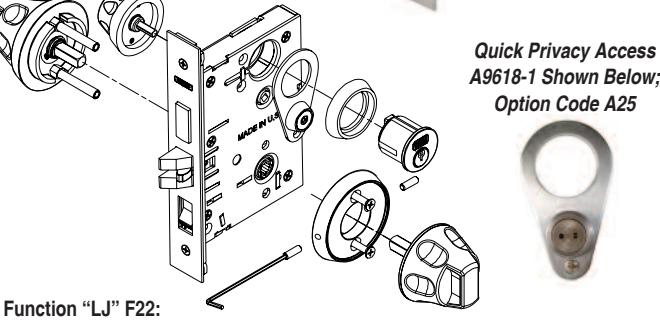

Function "LJ" F22:
ANSI F22 Latch by lever either side except when outside lever is locked by inside turnpiece. Turning inside lever or closing door unlocks outside lever. To unlock from outside, remove emergency button, insert emergency key in access hole and turn. Optional coin key assembly available.

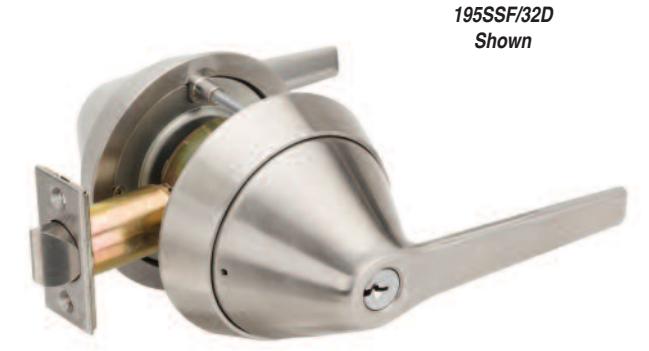

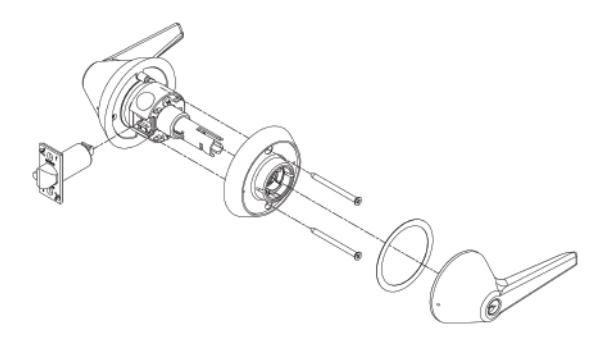

Series SS19 Institutional Life Safety Cylindrical Locksets - Levers
| SERIES 1SS19 | ||||
|---|---|---|---|---|
| MAF | RKS# | FINISH | ||
|
COMM.
CYL. |
IC CORE
CYL.* |
DESCRIPTION | ANSI# | GROUPS |
| N | _ | PASSAGE | F75 | |
| L | _ | PRIVACY | F76 | 1 |
| LK | _ | PRIVACY | F76 MOD. | |
| Р | _ | PATIO | F77 | |
| DC | RDC | COMMUNICATING | F80 | |
| A | RA | ENTRY | F81 | |
| В | RB | ENTRY | F82A | |
| AB | RAB | ENTRANCE | F109 | 1 |
| AQ | _ | EXIT | F83 | |
| S | RS | CLASSROOM | F84 | 1 |
| F | RF | STOREROOM | F86 | |
| DW | RDW | INSTITUTION | F87 | |
| DA | RDA | VESTIBULE | F88 | |
| FQ | _ | EXIT | F89 | 32D |
| T | RT | CORRIDOR | F90 | |
| TK | RTK | HOSPITAL/PRIV. | F90 MOD. | 1 |
| GB | RGB | STORE DOOR | F91 | 1 |
| BS | RBS | SVC. STATION LOCK | F92 | |
| Н | _ | HOTEL | F93 | |
| DB | RDB | CLASSROOM INTRUDER | F110 | 1 |
| DO | _ | DUMMY TRIM OUTSIDE | _ | 1 |
| DT | _ | FULL DUMMY TRIM | _ | 1 |
| NB | _ | COMM. PASSAGE | F111 | 1 |
| FB | RFB | COMM. STOREROOM | F112 | 1 |
| SB | RSB | COMM. CLASSROOM | F113 | 1 |
| FEL | RFEL | ELECTRICALLY LOCKED | _ | 1 |
| FEU | RFEU | ELECTRICALLY UNLOCKED | _ | |
PACKED 6 PER CASE
Standard Features
- ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
- Backset: 2-3/4" Standard, 2-3/8", 3-3/4", 5" Available
- Latch #1834, stainless steel nose
- Levers: Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position
- Levers recessed into solid stainless steel roses eliminating any open gap
- Roses: Thru-bolted, spring loaded, #10 thru-bolts
- Strike: #1135, 4-7/8" ASA curved lip strike
- Door thickness: 1-3/4" +/- 1/16"
- Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
- · Stainless steel retractor
★Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best® IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER,
ADD THE PREFIX "R" TO THE PART NUMBER ie: 5SS55RA/32D
Series SS55 Institutional Life Safety Cylindrical Locksets, Deadlatch Locksets & Mortise Deadlocks - Knobs
Cylindrical Locksets - Standard Features Performance Specifications Life Test: 1,500,000 cycles minimum. Trim Specifications
Exterior & Interior Trim:
- Solid stainless steel interior and exterior tapered knobs recessed into thru-bolted roses
- Specially designed finger indented safety knobs with recessed grip and ergonomically designed integral grooved turn knob for elderly and handicapped access (Patent D#587556).
- · Needle bearings ensure smoothness of operation

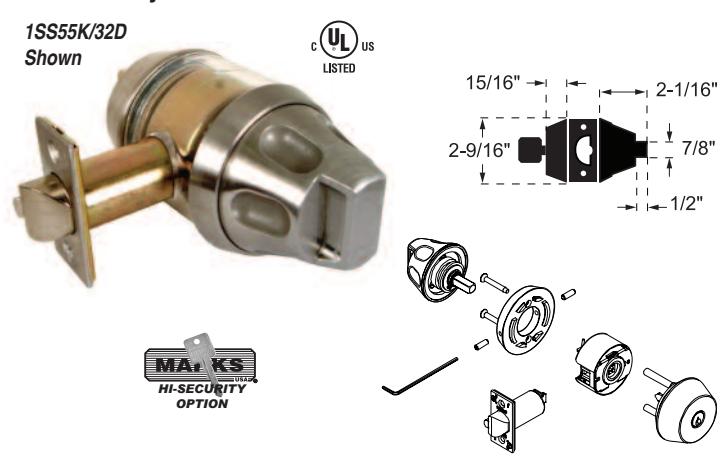

1SS55K Cylindrical Deadlatch Lockset: ANSI E0121 Cylinder x Knob
Latch by knob inside, key outside.
Strike: #1136, 2-3/4" "T" strike; #1135 4-7/8" ASA strike optional
Door Prep: ANSI 115.2
Latch: ANSI 156.2, Grade 1, 3 Hour fire rated
Door Thickness: 1-3/4"
Backset: 2-3/4" Backset; 3-3/4" and 5" backsets also available
Latch Face: 1-1/8" x 2-1/4" with tamper proof screws Cylinder: Solid brass cylinder, 6-pin, "C" keyway; Optional HI-SECURITY™ cylinders available

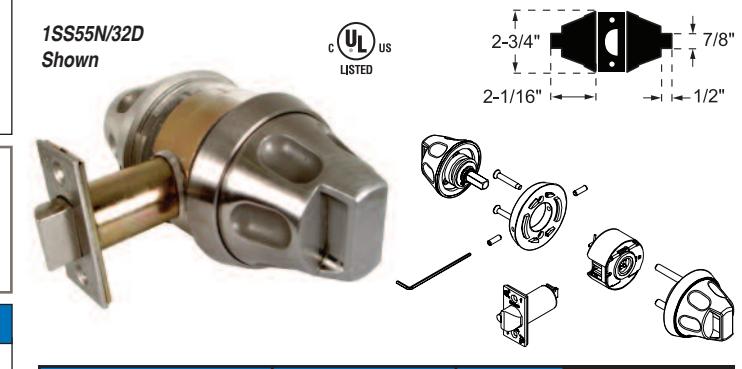

1SS55N Cylindrical Lockset: ANSI F75 Passage
Latch by knob either side, always open.
Strike: #1136, 2-3/4" "T" strike
Door Prep: ANSI 115.2
Latch: ANSI 156.2, Grade 1, 3 Hour fire rated Backset: 2-3/4" backset standard, 2-3/8" backset optional;
3-3/4" and 5" backsets also available
Latch Face: 1-1/8" x 2-1/4" with tamper proof screws
Latch Throw: 9/16"
★ Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER ie: 1SS55RK/32D
Mortise Deadlock - Standard Features
ANSI Test: Meets or exceeds all ANSI / BHMA A156.5 test specifications
Trim Specifications
Interior Trim:
Solid stainless steel interior trim including finger indented safety knobs which recess into solid brass through-bolted roses.

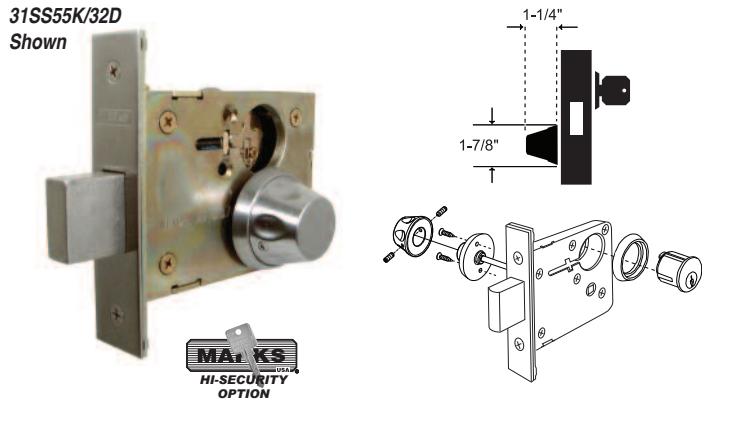

Series 31 Deadlock Specifications ANSI E06071 Cylinder X Turnpiece
Deadbolt by outside key. Interior safety knob will retract but not project deadbolt.
Backset: 2-3/4"
Strike: #4035 1-1/8" x 3-1/8" standard, #3135 4-7/8" x 1-1/4" optional
Bolt Throw: 1" Stainless steel with hardened roll pins
Case: Stamped steel
Front: 1-1/16" x 4-5/8" adjustable bevel Cylinder: Solid brass cylinder, 6-pin, "C" keyway.
Optional HI-SECURITY™ cylinders available.
★ Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER ie: 31SS55RK/32D
| MA | RKS# | SERIES | ||
|---|---|---|---|---|
|
COMM.
CYLINDER |
IC CORE
CYLINDER |
FUNCTION | ANSI# | 1SS55 |
| KEYED SIN | GLE CYLIND | ER, WITH DEADBOL | Л | FINISH GROUPS |
| K | RK | CYLINDER x KNOB | E0121 | |
| KEYLESS | 32D | |||
| N | _ | PASSAGE | F75 |
1SS55K Cylindrical Deadlatch Lockset
1SS55N Cylindrical Lockset -
|
MAR
COMM. |
KS # | FUNCTION | ANSI# |
SERIES
31SS55 |
|---|---|---|---|---|
| CYLINDER | 315555 | |||
| KEYED SINGLE CYLINDER, WITH DEADBOLT | FINISH GROUPS | |||
| K | RK | CYLINDER x KNOB | E06071 | 32D |
| S | RS | CLASSROOM | E06091 | 320 |

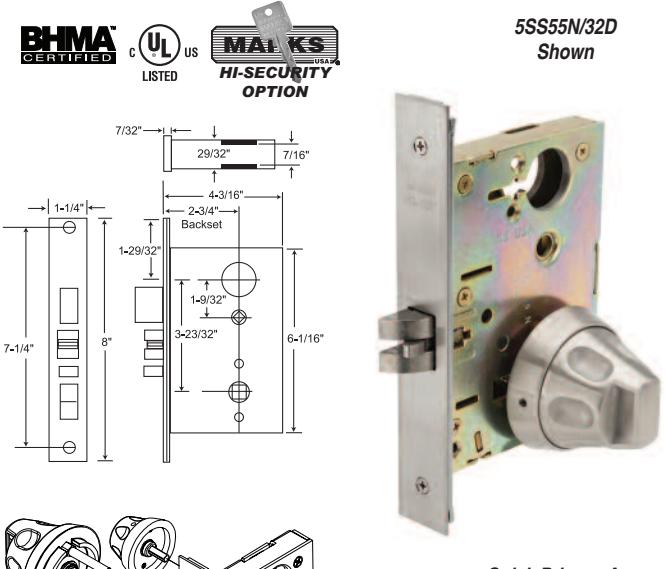

Series SS55 Institutional Life Safety Mortise Locksets - Knobs
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of ANSI specifications A156.13-2005 for series 5000, Grade 1.
Standard Features
Trim Specifications:
Exterior & Interior Trim:
- Solid stainless steel interior and exterior tapered knobs or levers recessed into thru-bolted roses.
- Safety knobs with recessed grip and finger indents (Patent #D587556). Safety lever for handicapped access on clutch operated Mortise lock.
- Ergonomically designed grooved turn knob for deadbolt functions.
Cylinder: Solid stainless steel cylinders with solid stainless steel
security collars; Optional HI-SECURITY™ cylinders available Strike: 4-7/8" curved lip stainless steel w/tamperproof screws
Door Thickness: 1-3/4" standard; Extended range available Door Prep: ANSI A115.1 lock face cutout, with 2-1/8" through
hole for knob/rose assembly
Lock Specifications: 5 Series (2-3/4" Backset)
55 Series (2-1/2" Backset) Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick,
Cover plate 1/16" thick with tamper proof screws
Latch: Solid stainless steel with antifriction latch lever,
3/4" throw (reversible)
Levers: Solid cast stainless steel. Levers Rotate up & down freely in
locked or unlocked position
Aux. Deadlatch: 1/2" throw, (reversible)
Case: Stamped steel 3/32" thick, zinc dichromate finish
Hubs: Steel, 9/32" on diamond, 5/16" on square w/security separator
Hub Lock Arm: (to lock hub) Steel 1/8" thick Spindles: Independent spring-loaded spindles
ANSI F22 Latch by knob either side except when outside knob is locked by inside turnpiece. Turning inside knob or closing door unlocks outside knob. To unlock from outside, remove emergency button, insert emergency key in access hole and turn. Optional coin key assembly available.
| MARKS # |
SERIES
5 & 55 SS55 |
||
|---|---|---|---|
|
COMM.
CYL. |
FUNCTION | ANSI # |
FINISH
GROUPS |
| KEYED SINGLE CYLINDER, NO DEADBOLT | |||
| D | OFFICE VEST. | ||
| DW | VESTIBULE | ||
| E | OFFICE | F04 | |
| EW | STOREROOM | F07 | |
| J | CLASSROOM | F05 | |
| JM, JR | HOSPITAL | F06 | |
| GL | INSTITUTIONAL PRIVACY | F26 | |
| EL | ELECTRICALLY LOCKED | ||
| EU | ELECTRICALLY UNLOCKED | ||
| KEYED SINGLE CYLINDER, WITH DEADBOLT | |||
| A | ENTRANCE | F08, F10 | |
| B | ENTRANCE | F21 | |
| F | DORMITORY | F12 | |
| FS | DORMITORY | ||
| FW | DORMITORY | F13 | |
| FD | APARTMENT | F20 | |
| H | HOTEL | F15 | |
| LH | SPECIAL PRIVACY | ||
| KEYED DOUBLE CYLINDER, NO DEADBOLT | |||
| G | APARTMENT | F09 | 32D |
| GC | INTRUDER LATCHBOLT | F32 | |
| GG | CLASSROOM SECURITY | ||
| GR | CLASSROOM SECURITY w/HOLDBACK | ||
| WW | INSTITUTIONAL | F30 | |
| KEYED DOUBLE CYLINDER, WITH DEADBOLT | |||
| AC | ENTRANCE | F35 | |
| C | STOREROOM | F14 | |
| FC | INTRUDER DEADBOLT | F34 | |
| FA | DORMITORY | F11 | |
| FX | DORMITORY | F33 | |
| KEYLESS | |||
| N | PASSAGE | F01 | |
| L | BATHROOM | F02 | |
| LF | PRIVACY | F19 | |
| LJ | PRIVACY | F22 | |
| EX | EXIT | F31 | |
| DUMMY TRIM | |||
| DI | DUMMY TRIM INSIDE | ||
| DO | DUMMY TRIM OUTSIDE | ||
| DT | FULLY DUMMY |
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best ® *
IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER ie: 5SS55RA/32D

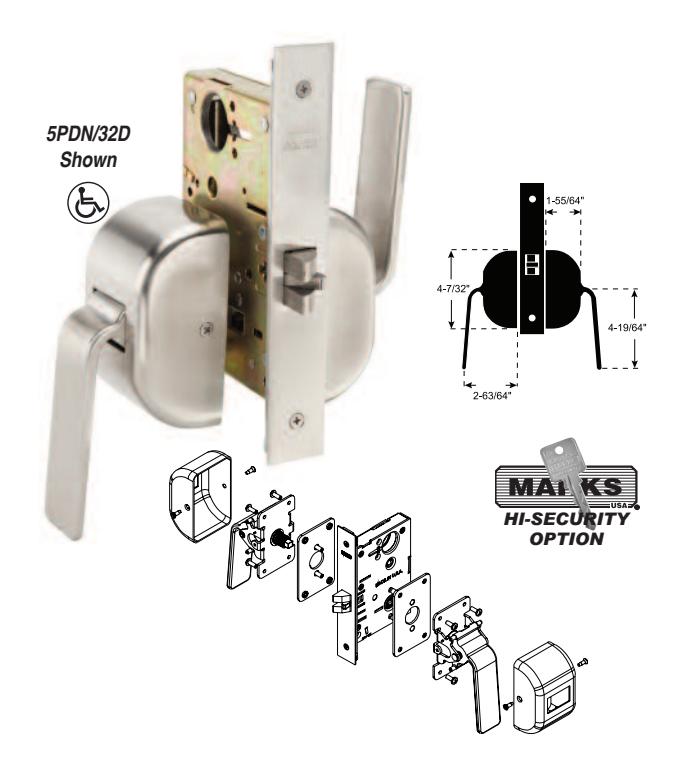

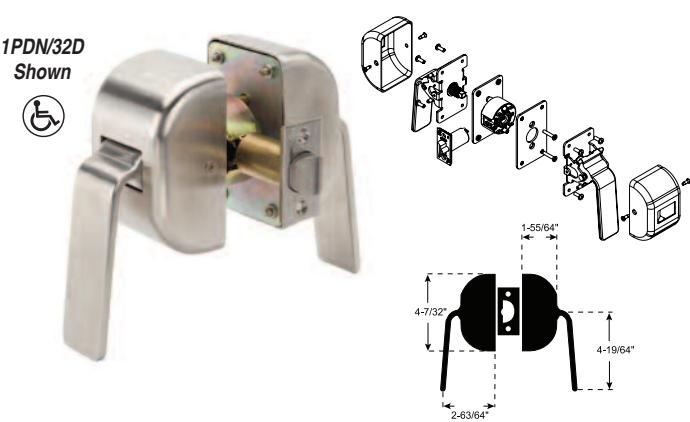

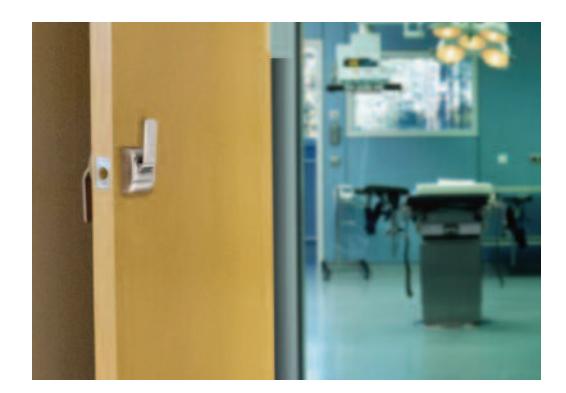

Series PD Cylindrical & Mortise Hospital Push/Pull Paddlesets
Standard Features
- Cylindrical - ANSI-A156.2 Grade 1:
- Backset: 2-3/4" standard, 2-3/8" and 5" optional
- Strike: #1136, 2-3/4" "T" strike; #1135 4-7/8" ASA strike optional Mortise - ANSI-A156.13 Grade 1:
- Backset: 5 Series 2-3/4", 55 Series 2-1/2"
- Strike: #9035, 4-7/8" ASA curved lip strike
- Door Thickness: 1-3/4", self adjusting for thicker doors
- ANSI-A156.2, Grade 1
- Lead lining and engraving available
- ADA Compliant Non-Handed • Government standard #161
- Functional, modern design with variable mounting positions
- Short throw angle allows for easy push/pull action to open doors even when hands are not free
- Standard 32D finish, consult factory for available finishes
- Universal assemblies can be push/pull vertical up or down
- Easily reversible configuration for push or pull styles
MARKS # FUNCTION ANSI # SERIES 1PD
|
KEYLESS
N |
PASSAGE | F75 |
FINISH GROUPS
32D |
|---|---|---|---|
| MARKS # | FUNCTION | ANSI # | SERIES 5 & 55 PD |
| KEYED SINGLE CYLINDER, NO DEADBOLT | FINISH GROUPS | ||
| D | OFFICE VEST. | ||
| DW | VESTIBULE | ||
| E | OFFICE | F04 | |
| EW | STOREROOM | F07 | |
| J | CLASSROOM | F05 | |
| JM, JR | HOSPITAL | F06 | |
| GL | INSTITUTIONAL PRIVACY | F26 | |
| EL | ELECTRICALLY LOCKED | ||
| EU | ELECTRICALLY UNLOCKED | ||
| KEYED SINGLE CYLINDER, WITH DEADBOLT | |||
| A | ENTRANCE | F08, F10 | |
| B | ENTRANCE | F21 | |
| F | DORMITORY | F12 | |
| FS | DORMITORY | ||
| FW | DORMITORY | F13 | |
| FD | APARTMENT | F20 | |
| H | HOTEL | F15 | |
| LH | SPECIAL PRIVACY | ||
| KEYED DOUBLE CYLINDER, NO DEADBOLT | |||
| G | APARTMENT | F09 | |
| GC | INTRUDER LATCHBOLT | F32 | 32D |
| GG | CLASSROOM SECURITY | ||
| GR | CLASSROOM SECURITY w/HOLDBACK | ||
| WW | INSTITUTIONAL | F30 | |
| KEYED DOUBLE CYLINDER, WITH DEADBOLT | |||
| AC | ENTRANCE | F35 | |
| C | STOREROOM | F14 | |
| FC | INTRUDER DEADBOLT | F34 | |
| FA | DORMITORY | F11 | |
| FX | DORMITORY | F33 | |
| KEYLESS | |||
| N | PASSAGE | F01 | |
| L | BATHROOM | F02 | |
| LF | PRIVACY | F19 | |
| LJ | PRIVACY | F22 | |
| EX | EXIT | F31 | |
| DUMMY TRIM | |||
| DI | DUMMY TRIM INSIDE | ||
| DO | DUMMY TRIM OUTSIDE | ||
| DT | FULLY DUMMY |
Common pin tumbler cylinders may be compromised by picking, drilling or key bumping. For applications where a greater secu- rity level is required, we suggest using drill/pick resistant cylinders with multiple pin planes such as those with sidebars. Marks USA HI-SECURITY™ Cylinders are constructed with sidebars and are drill, pick and bump resistant .
