Marks USA HI-Security Security-Mate Cylinders Spec Sheet

HI-SECURITY

• Resists Picking, Drilling & Bumping
• Patented Key Control
• Restricted Keyway
• Lifetime Warranty
• Hardened Steel Sidebars
• Standard Key Machine
• UL 437 Optional

Designed to complement the Marks USA locksets, the HI-SECURITY™ Program allows for expansion into the growing patented high security and patented key control markets. Marks USA HI-SECURITY™ brings a No Nonsense Approach to Patented Key Control, with minimal paperwork. The locking principle includes the combination of standard pin tumbler cylinder with a sidebar locking mechanism corresponding to a "security wave" designated by unique shaped sidebar pins corresponding to a factory milled groove on the key. Cylinders currently available include mortise, rim, a combination mortise and rim, key-in-knob, deadbolt, Large format Schlage® IC Core, and Small Format IC core.

Specifications =

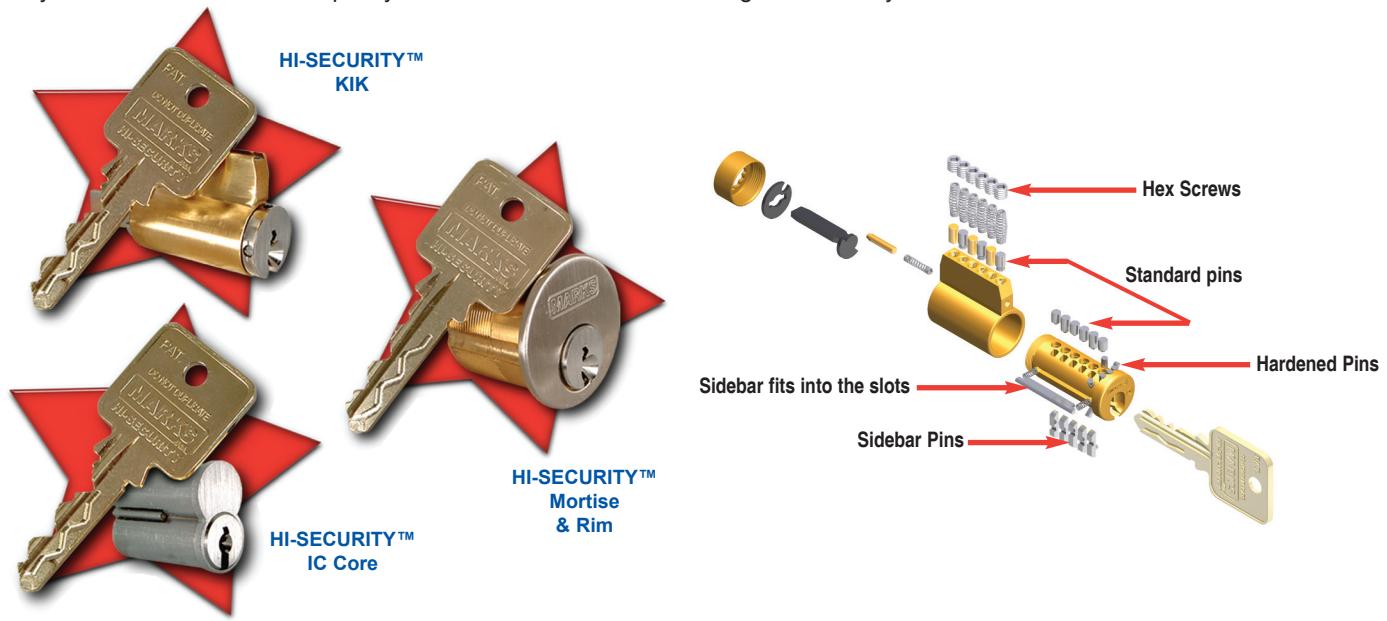

Cylinder: Lock cylinders are of a high security pick and bump resistant design with keys cut with a security wave configuration, standard pin tumblers and four or five rectangle shaped security pins with a sidebar locking mechanism.

Exterior: Solid brass cylinders and nickel silver keys. Cylinders may be re-keyed without total disassembly via hex screw in the outer cylinder housing or with plug follower.

Finishes: Marks USA mortise and rim and mortise/rim combo cylinders are available in US3, US3E US4, US5, US10, US10B, US15, US26 & US26D. Cylinder plugs are furnished in 626 only. Interchangeable core mortise and rim cylinder housings are available in US3, US3E, US4, US10, US10B, US15, US26 & US26D. IC cores furnished in 606 and 626 only.

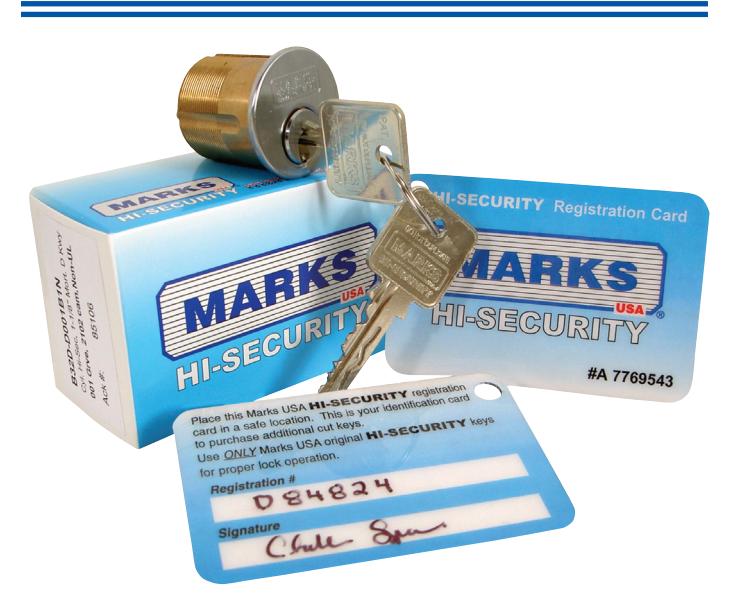

Patented Key Control: Levels of key control are available based on specific end-user convenience and security desired.

Keying: Cylinders may be supplied "0" bitted, keyed different, keyed alike, construction master-keyed, master-keyed and grand-master-keyed consistent with Doors and Hardware Institute standards for six pin systems for standard pin tumbler cylinders and six and seven pin systems for small format interchangeable core systems

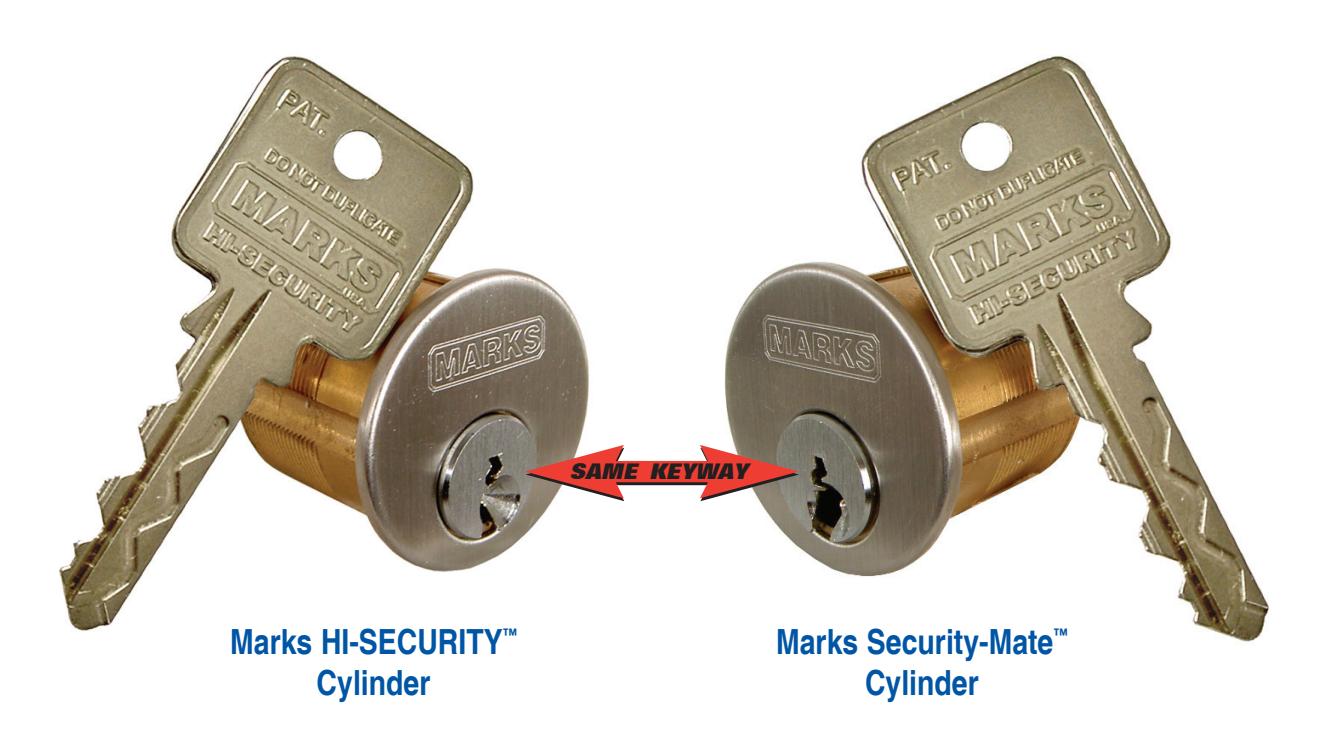

SECURITY-MATE™ CYLINDER SECURITY-MATE™ CYLINDER

The Security-Mate™ cylinder is of standard pin tumbler security construction, intended to complement Marks HI-SECURITY™ cylinder applications. Cylinders may be integrated into a Marks HI-SECURITY™ key system.

Driven by dealer and consumer demand for a more economic cylinder solution for interior doors such as closets, where less security is needed but the convenience of carrying a single key is desired, Security-Mate™ is a natural addition to the product line.

Security-Mate™ cylinders are made of quality bar brass with precision tolerances, made in five or six pin configuration, in Mortise, Mortise-rim Combo and Key-in-Knob cylinder configurations.

Only Marks patented HI-SECURITY™ keys will operate the Security-Mate™ .
