Markar/Pemko DSH_ x ERS_ Order Form
| IMPORTANT - COMPLETED FORM REQUIRED |
|---|
Incomplete or incorrect order forms will be returned to the customer resulting in order delays. Manufacturer does NOT recommend pre-drilling doors or frames due to manufacturing tolerances.
Compatible with these frame profiles:
- Cased Open (Extended Lip Strike needed)
- Cased Open Hinge Jamb and Header with Single Rabbet Lockside Jamb
| Page: | of | |
|---|---|---|
| PO #: | Line #: | |
| Company Name: | ||
| Contact Name: |
LH/RHR
RH/LHR
(enter quantity) (DSH requires Frame Height and Door Undercut) (not required) (ERS requires All Dimensions) Step 1 - Specify Handing & Quantity Step 2 - Specify Dimensions in Inches
Step 3 - Special Instructions
| For DSH (step 4) | ||
|---|---|---|
| Step 4 - Choose SER | ||
| SER Section (choose only one) | ||
| NONE | ||
| SER4 (4 wires) | ||
| SER8 (8 wires) | ||
SER12 (12 wires) SINGLE POINT (ERS)
| For ERS (steps 5 & 6) |
|---|
| Step 5 - Choose ERS Type |
| (choose only one) |
| (Top Flushbolt, standard) |
|---|
| MULTI-POINT (ERSMP) |
|---|
| (Frame jamb prep required) |
| Step 6 - Specify Lockset & Trim | |||
|---|---|---|---|
| (enter complete part number) |
| MFG: | |||
|---|---|---|---|
| Lockset: | |||
www.assaabloydooraccessories.us
USA:
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018
Canada: Toronto, ON L4K4T9 Phone: 877.535.7888
Trim:
CUSTOM - specify top of hinge to CL
STANDARD - top of hinge, as shown
SER Location - if applicable (choose only one)
of prep in inches
ASSA ABLOY Opening Solutions

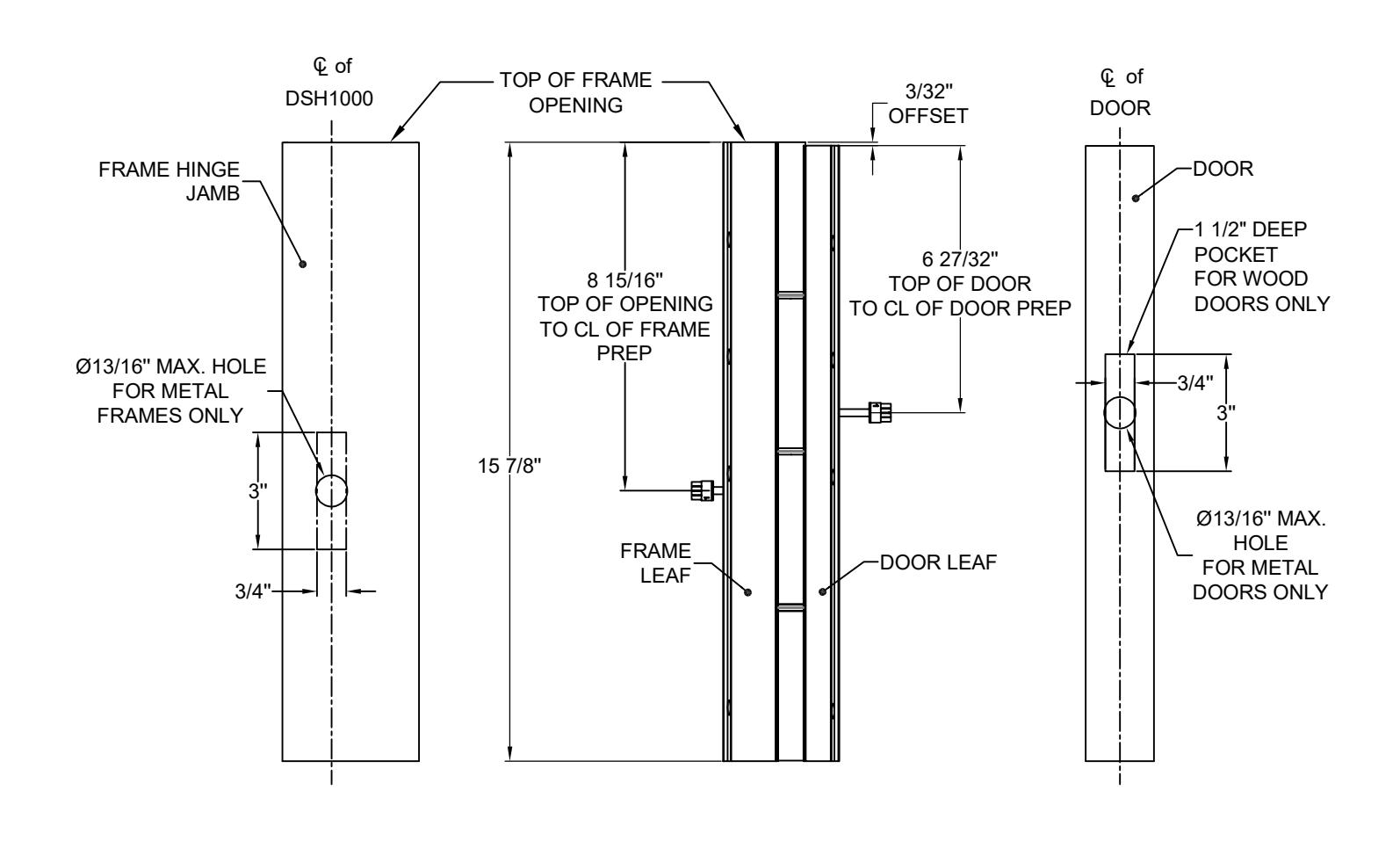

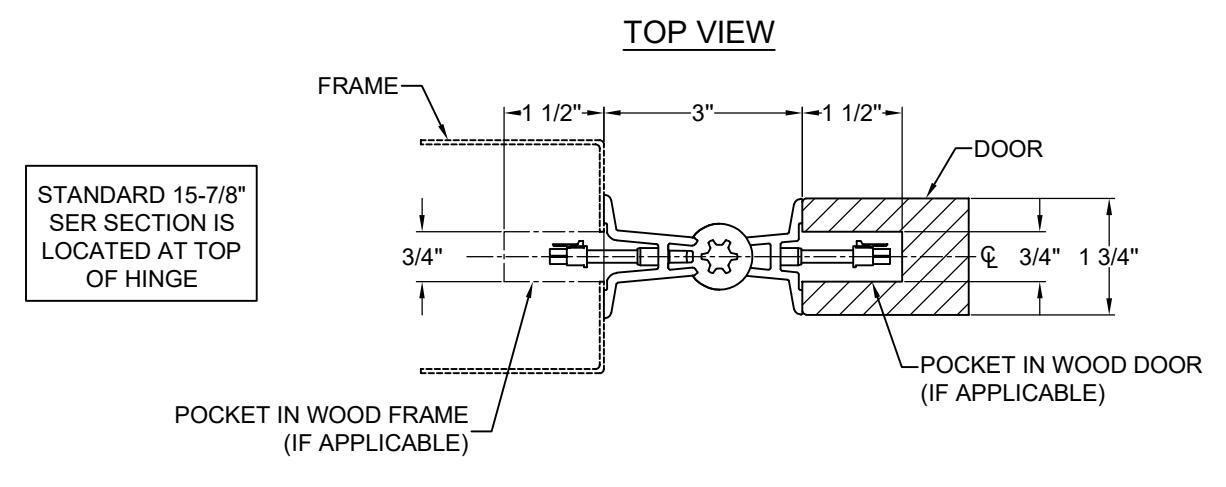

Markar DSH1000 SER
Experience a safer and more open world
www.assaabloydooraccessories.us
USA: Ventura. CA
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018

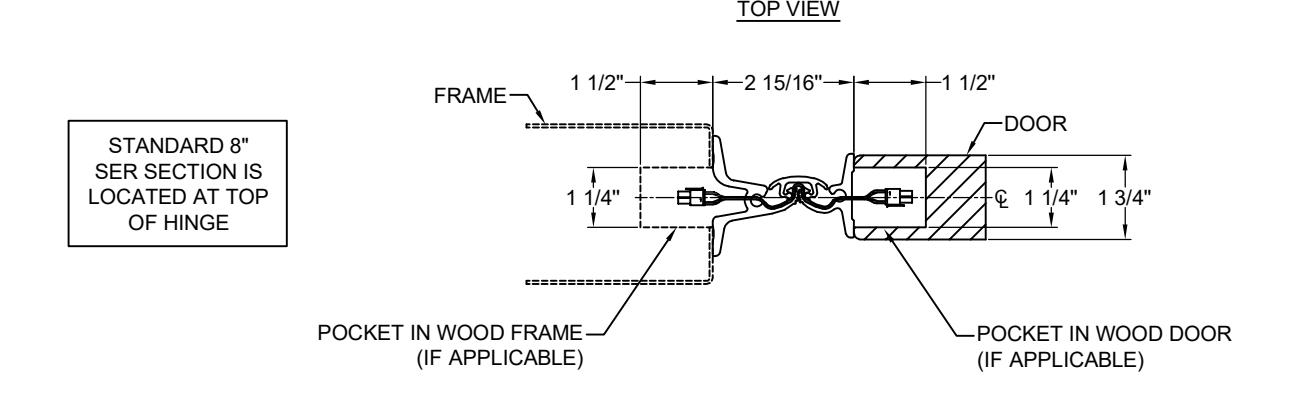

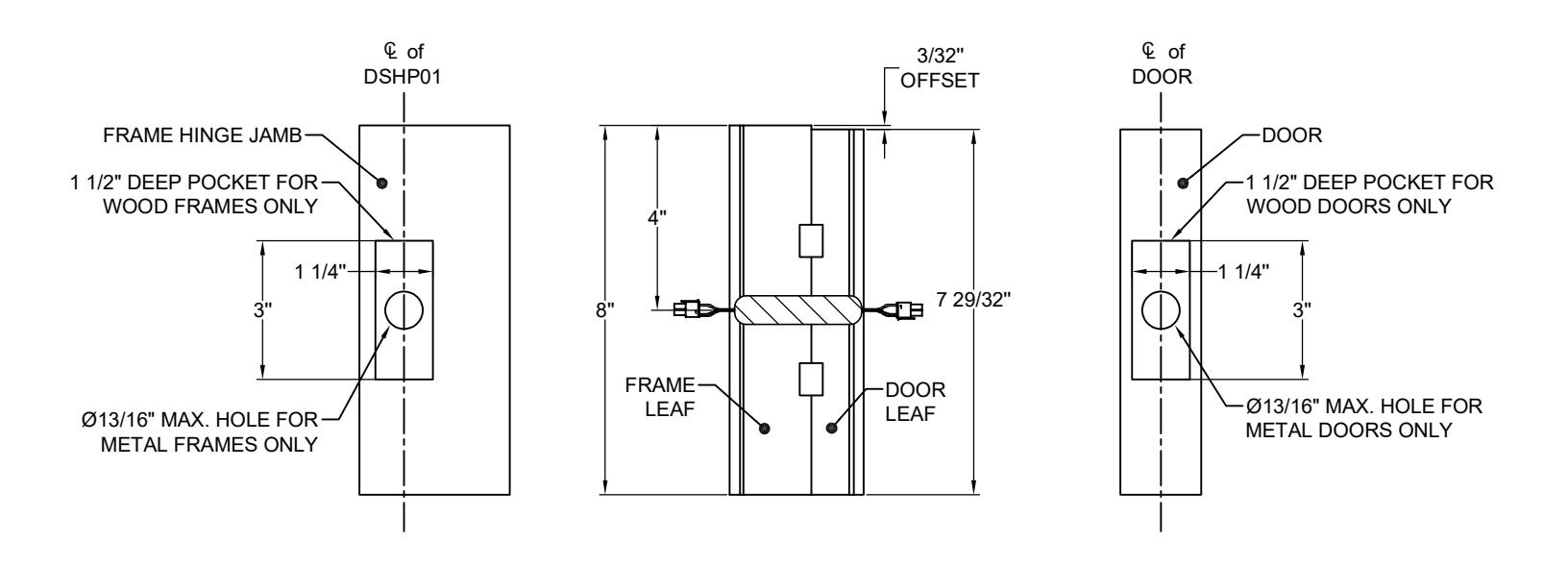

Pemko DSHP01 SER
www.assaabloydooraccessories.us
USA:
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018

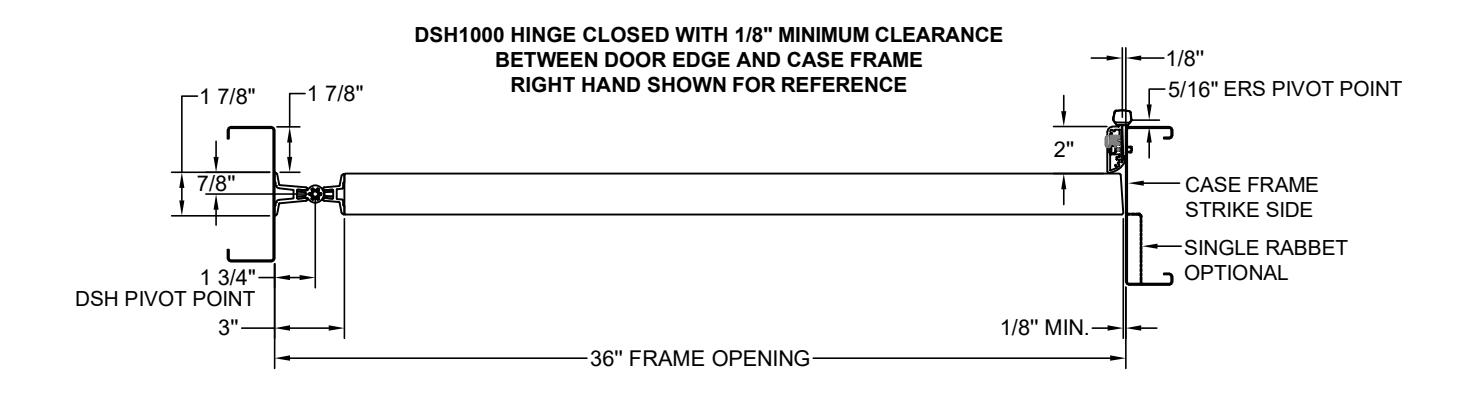

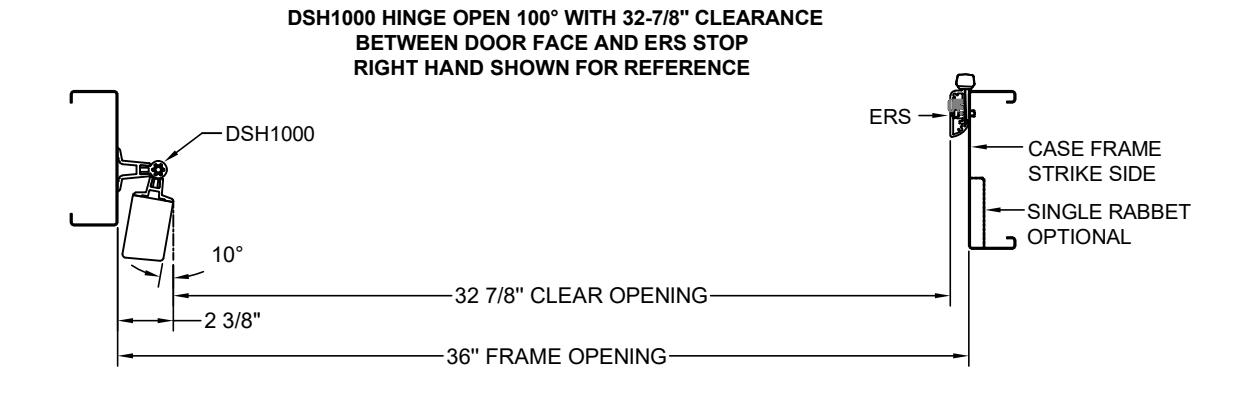

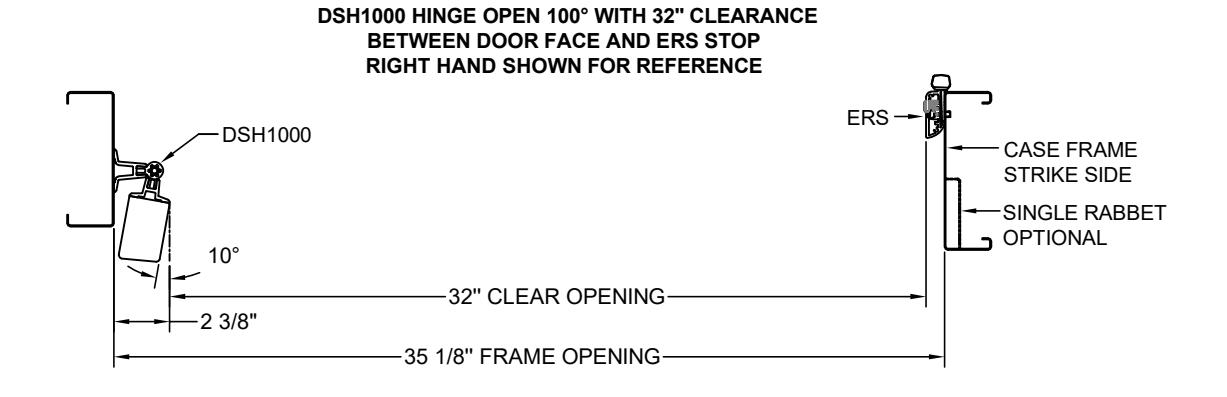

DSH1000 x ERS_ Door Clearances
www.assaabloydooraccessories.us
USA:
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018

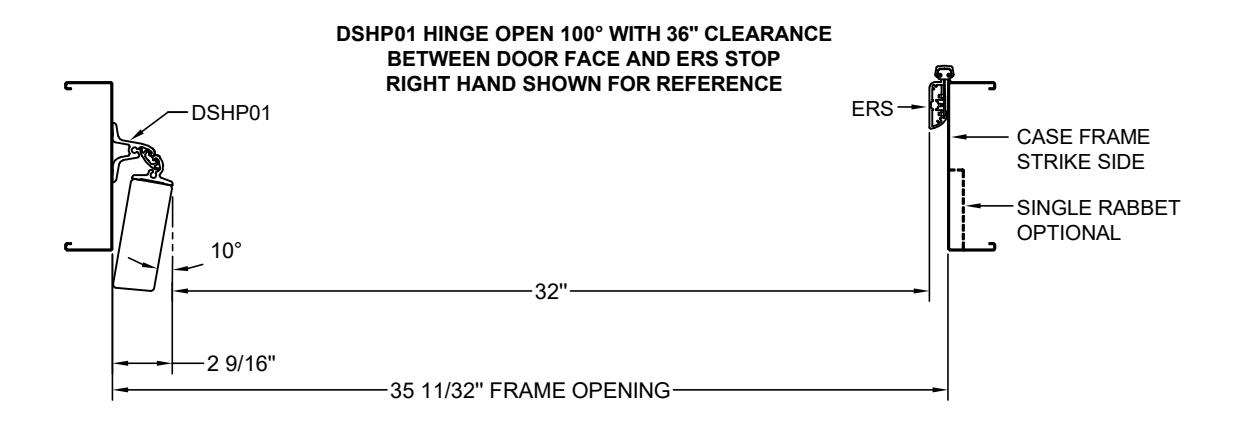

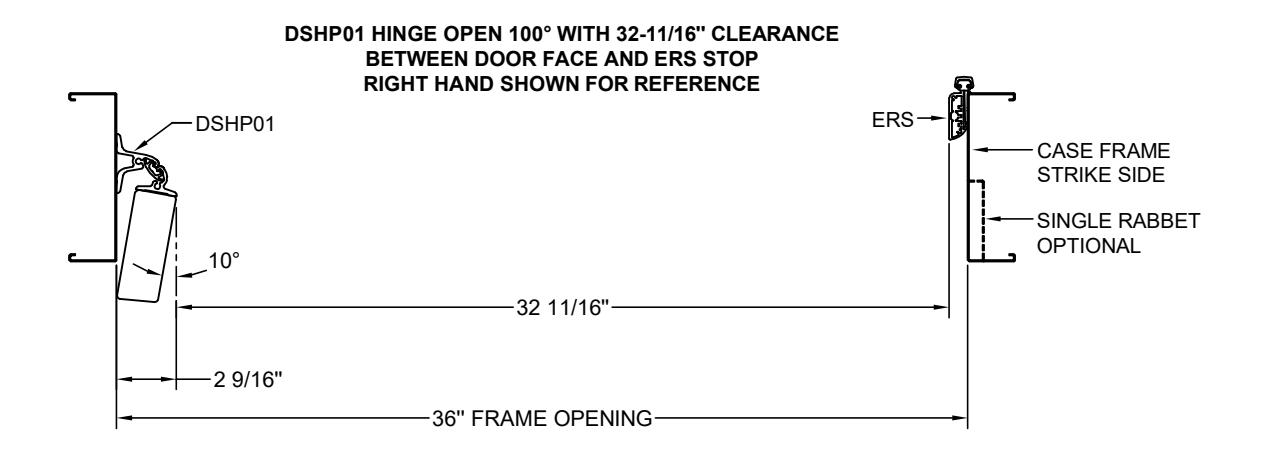

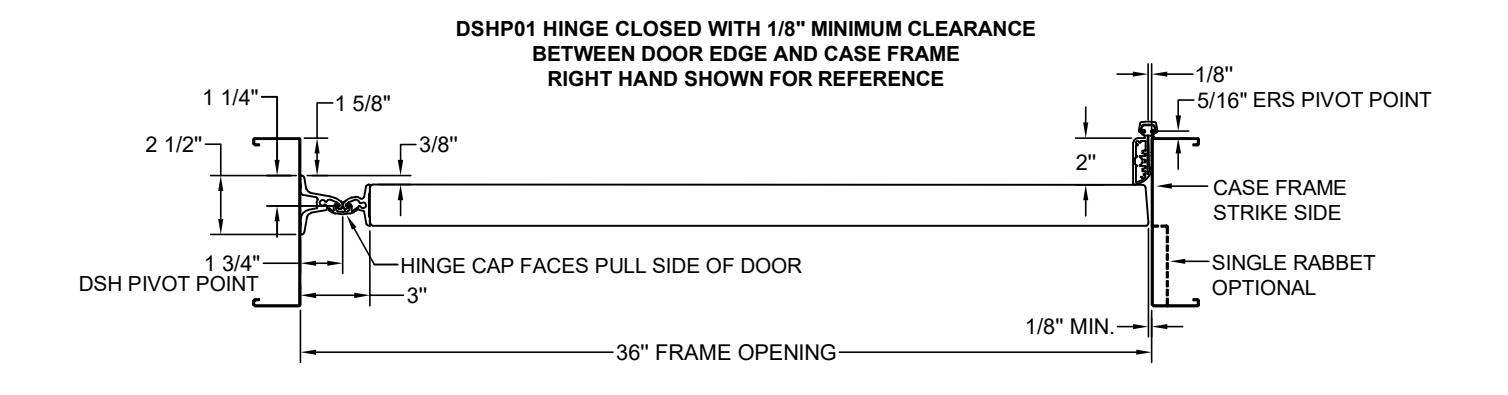

DSHP01 x ERS_ Door Clearances
Experience a safer and more open world
www.assaabloydooraccessories.us
USA:
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018

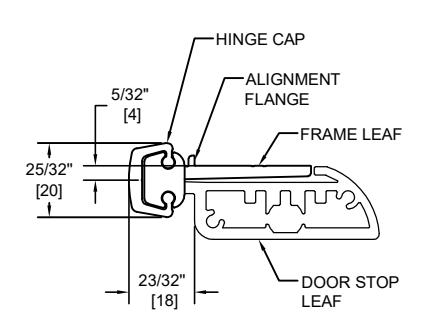

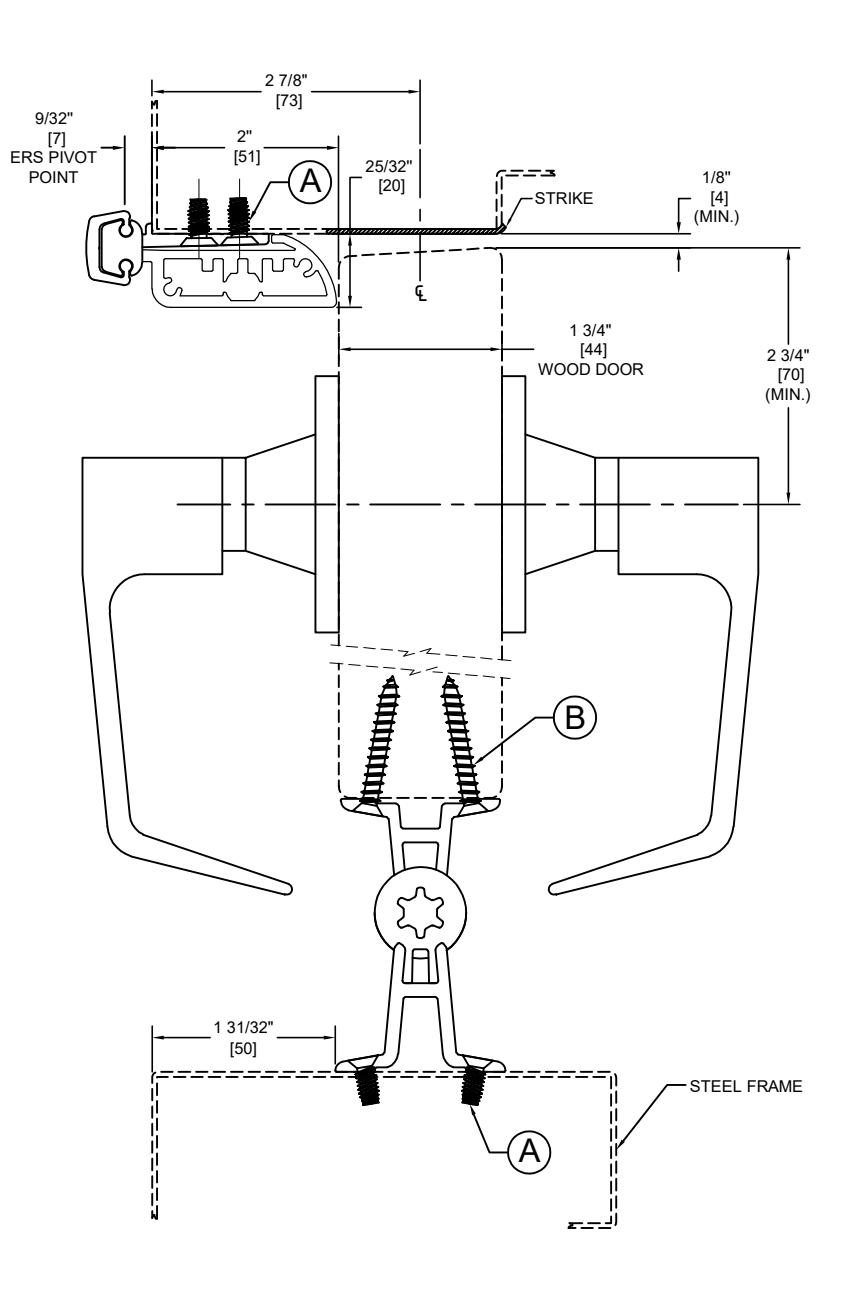

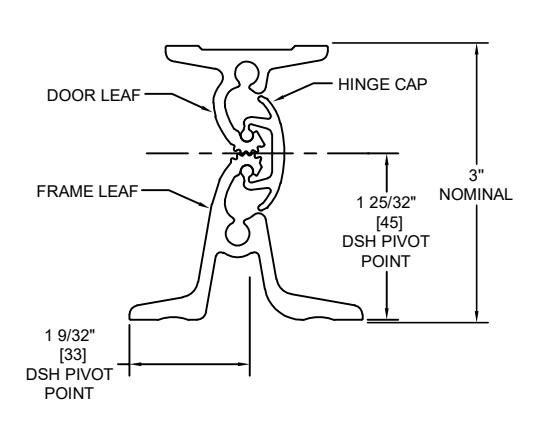

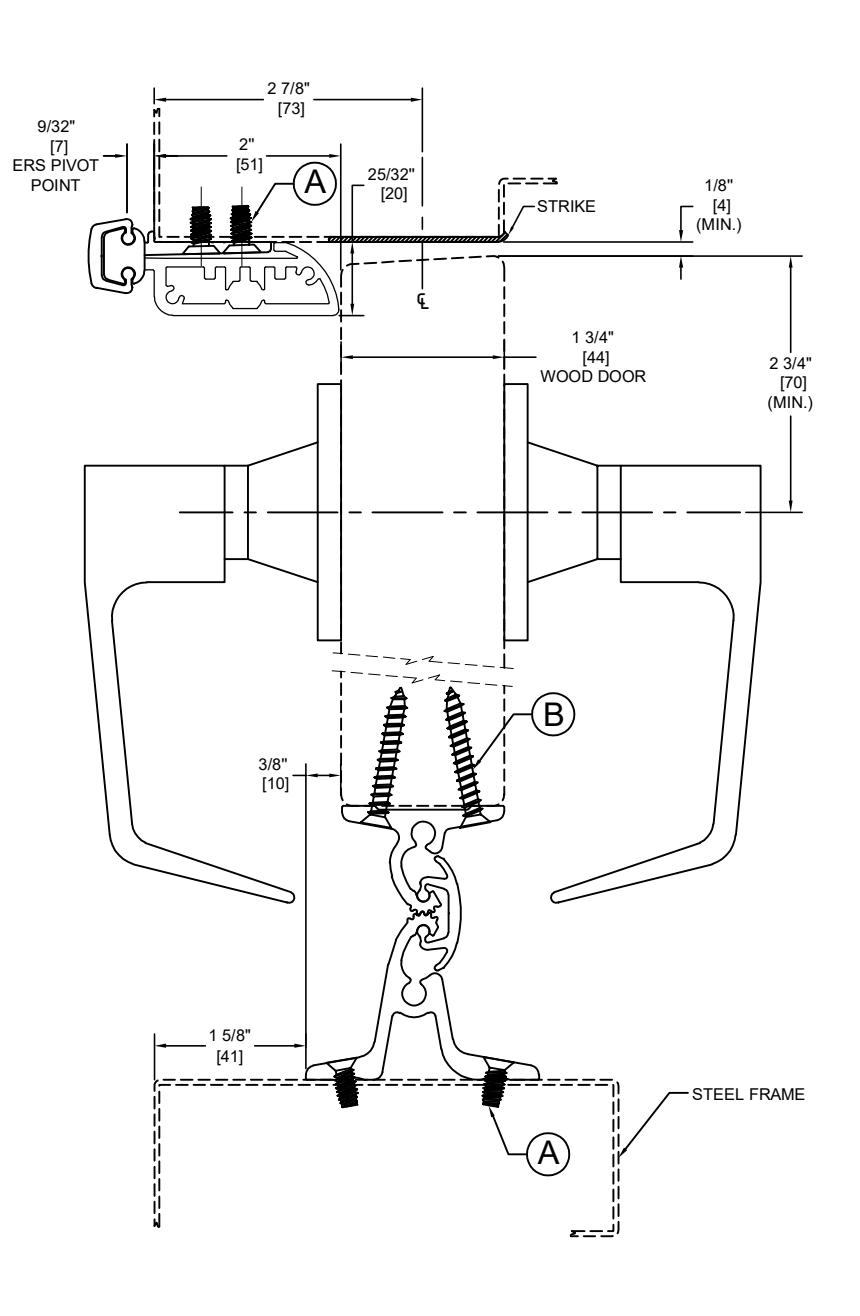

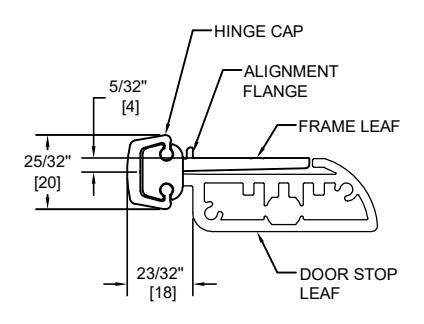

Markar DSH1000 x ERS_
RIGHT HAND SHOWN FOR REFERENCE ONLY
| FASTENER CHART | |
|---|---|
| NOTE | MOUNT USING SPECIAL FASTENER |
| A |
#12-24 x 7
16" FHUC SECURITY TORX |
| B |
#12 x 1 1
2" x #10 FH SECURITY TORX |
| DRILL SIZE CHART | |||
|---|---|---|---|
| MATERIAL | THICKNESS | DRILL SIZE | |
| ALUMINUM | 0.090" - 0.140" | 13 | |
| METAL | 20 GAUGE | 17 | |
| METAL | 16-18 GAUGE | 15 | |
| METAL | 12-14 GAUGE | 13 | |
| WOOD | N/A | 5/32'' | |
www.assaabloydooraccessories.us
USA:
Ventura, CA 93003 Phone: 800.283.9988
Memphis, TN 38141 Phone: 800.824.3018

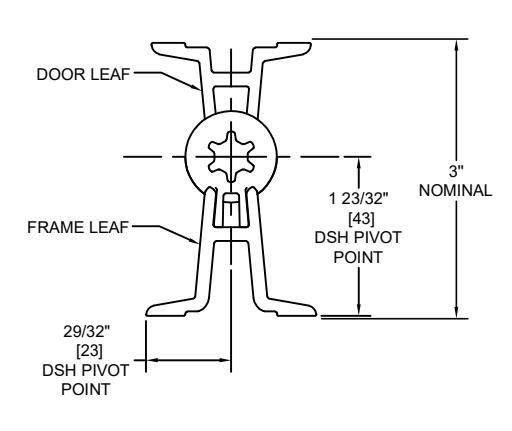

Pemko DSHP01 x ERS_
RIGHT HAND SHOWN FOR REFERENCE ONLY
| FASTENER CHART | |
|---|---|
| NOTE | MOUNT USING SPECIAL FASTENER |
| A |
#12-24 x 7
16" FHUC SECURITY TORX |
| B |
#12 x 1 1
2" x #10 FH SECURITY TORX |
| DRILL SIZE CHART | ||||
|---|---|---|---|---|
|
MATERIAL
THICKNESS DRILL SIZE |
||||
| ALUMINUM | 0.090" - 0.140" | 13 | ||
| METAL | 20 GAUGE | 17 | ||
| METAL | 16-18 GAUGE | 15 | ||
| METAL | 12-14 GAUGE | 13 | ||
| WOOD | N/A | 5/32'' | ||
