Markar EL & PoE Prep Locations – Steel SS Hinges Templates

Open the original PDF document

Architectural Door Accessories

Experience a safer and more open world

ADDITIONAL POCKET IS NEEDED. SEE FIGURE 1.

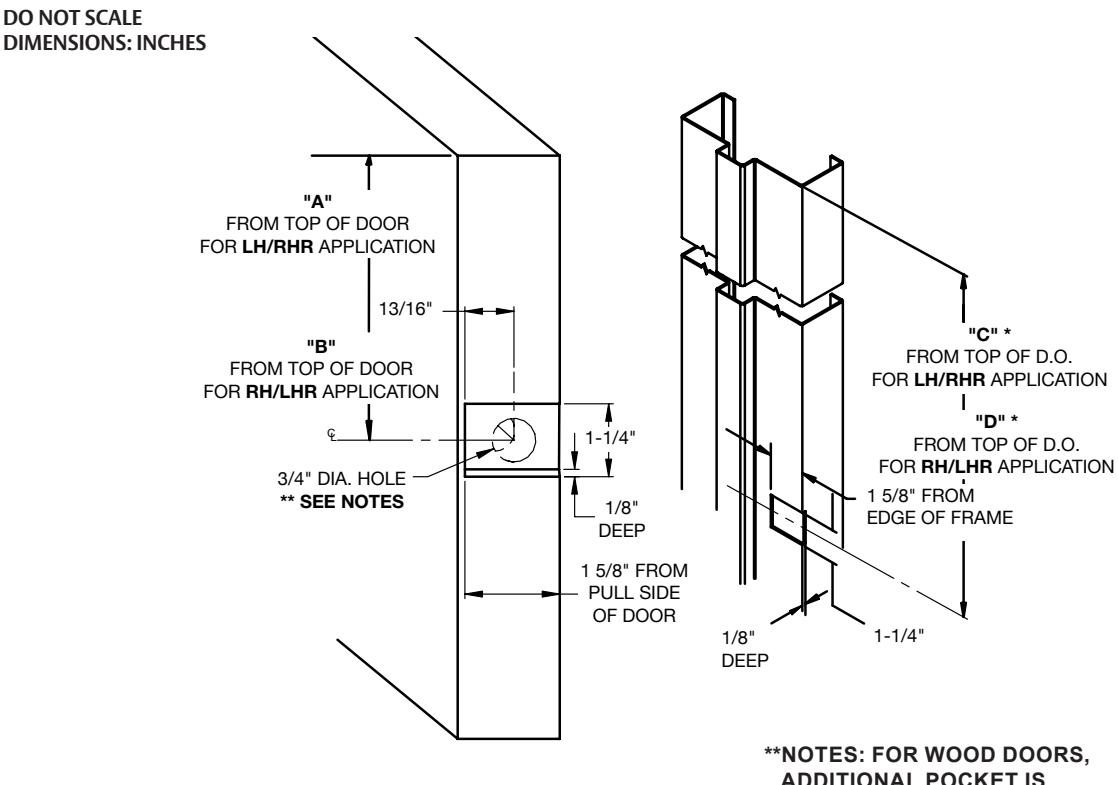

VISUAL REPRESENTATION SHOWING DOOR AND FRAME PREP LOCATION DIFFER. FOR ILLUSTRATION PURPOSE ONLY.

Effective date: June 12, 2019

Supercedes: All Previous

*Dimensions shown stand true when taking into consideration the industry standard of 1/8" clearance between top of door opening and top of door.

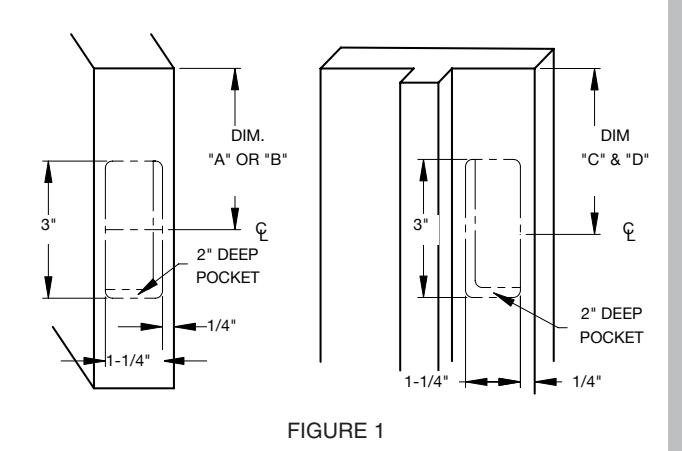

**Notes: For wood doors & frame, additional pocket is needed. See Figure 1.

Page 1 of 2

*DIMENSION SHOWN BELOW IS NEEDED* AT THE TIME OF ORDERING		LH / RHR APPLICATION		RH / LHR APPLICATION
		HINGE LENGTHS UP TO 83 1/8"		HINGE LENGTHS UP TO 83 1/8"

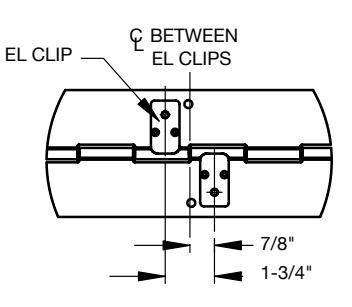

LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP "C"	TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP "D"
	21 25/32	20 29/32	22 25/32	22 21/32	21 1/32
	25 23/32	24 27/32	26 23/32	26 19/32	24 31/32
	29 11/16	28 13/16	30 11/16	30 9/16	28 15/16
	33 21/32	32 25/32	34 21/32	34 17/32	32 29/32
	37 19/32	36 23/32	38 19/32	38 15/32	36 27/32
STANDARD LOCATION	41 9/16	40 11/16	42 9/16	42 7/16	40 13/16
	45 17/32	44 21/32	46 17/32	46 13/32	44 25/32
	49 15/32	48 19/32	50 15/32	50 11/32	48 23/32

*DIMENSION SHOWN BELOW IS NEEDED* AT THE TIME OF ORDERING		LH / RHR APPLICATION HINGE LENGTHS 83 3/16" - 85 1/8"		RH / LHR APPLICATION HINGE LENGTHS 83 3/16" - 85 1/8"
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"		TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP "D"
	21 25/32	22 21/32	21 1/32	22 21/32	21 1/32
	27 23/32	26 27/32	28 23/32	26 27/32	28 23/32
	33 21/32	34 17/32	32 29/32	34 17/32	32 29/32
	39 19/32	38 23/32	40 19/32	38 23/32	40 19/32
	45 17/32	46 13/32	44 25/32	46 13/32	44 25/32
STANDARD LOCATION	51 15/32	50 19/32	52 15/32	50 19/32	52 15/32
	57 13/32	58 9/32	56 21/32	58 9/32	56 21/32
	63 11/32	62 15/32	64 11/32	62 15/32	64 11/32


*DIMENSION SHOWN BELOW IS NEEDED* AT THE TIME OF ORDERING		LH / RHR APPLICATION		RH / LHR APPLICATION
		HINGE LENGTHS 85 3/16" - 95"		HINGE LENGTHS 85 3/16" - 95"
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP "C"	TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP "D"
	27 23/32	28 19/32	26 31/32	26 27/32	28 23/32
	31 21/32	32 17/32	30 29/32	30 25/32	32 21/32
	35 5/8	36 1/2	34 7/8	34 3/4	36 5/8
	39 19/32	40 15/32	38 27/32	38 23/32	40 19/32
	43 17/32	44 13/32	42 25/32	42 21/32	44 17/32
STANDARD LOCATION	47 1/2	48 3/8	46 3/4	46 5/8	48 1/2
	51 15/32	52 11/32	50 23/32	50 19/32	52 15/32
	55 13/32	56 9/32	54 21/32	54 17/32	56 13/32
	59 3/8	60 1/4	58 5/8	58 1/2	60 3/8
	63 11/32	64 7/32	62 19/32	62 15/32	64 11/32


*DIMENSION SHOWN BELOW IS NEEDED* AT THE TIME OF ORDERING		LH / RHR APPLICATION HINGE LENGTHS 95 1/16" - 118 3/4"		RH / LHR APPLICATION HINGE LENGTHS 95 1/16" - 118 3/4"
NEEDED /// THE TIME OF ORDERING		HINGE LENGTHS 95 1/16 - 116 3/4		111NGE EENG1113 93 1/10 - 110 3/4
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP "C"	TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP "D"
	39 19/32	40 15/32	38 27/32	38 23/32	40 19/32
	43 17/32	44 13/32	42 25/32	42 21/32	44 17/32
	47 1/2	48 3/8	46 3/4	46 5/8	48 1/2
	51 15/32	52 11/32	50 23/32	50 19/32	52 15/32
	55 13/32	56 9/32	54 21/32	54 17/32	56 13/32
STANDARD LOCATION	59 3/8	60 1/4	58 5/8	58 1/2	60 3/8
	63 11/32	64 7/32	62 19/32	62 15/32	64 11/32
	67 9/32	68 5/32	66 17/32	66 13/32	68 9/32
-	71 1/4	72 1/8	70 1/2	70 3/8	72 1/4
	75 7/32	76 3/32	74 15/32	74 11/32	76 7/32
	79 5/32	80 1/32	78 13/32	78 9/32	80 5/32

Template M80-018-0002

Effective date: June 12, 2019

Supercedes: All Previous

Page 2 of 2
