Architectural Door Accessories

ASSA ABLOY Opening Solutions

Markar EL & PoE Prep Locations Aluminum Hinge FM100 & HG105 Only

Experience a safer and more open world

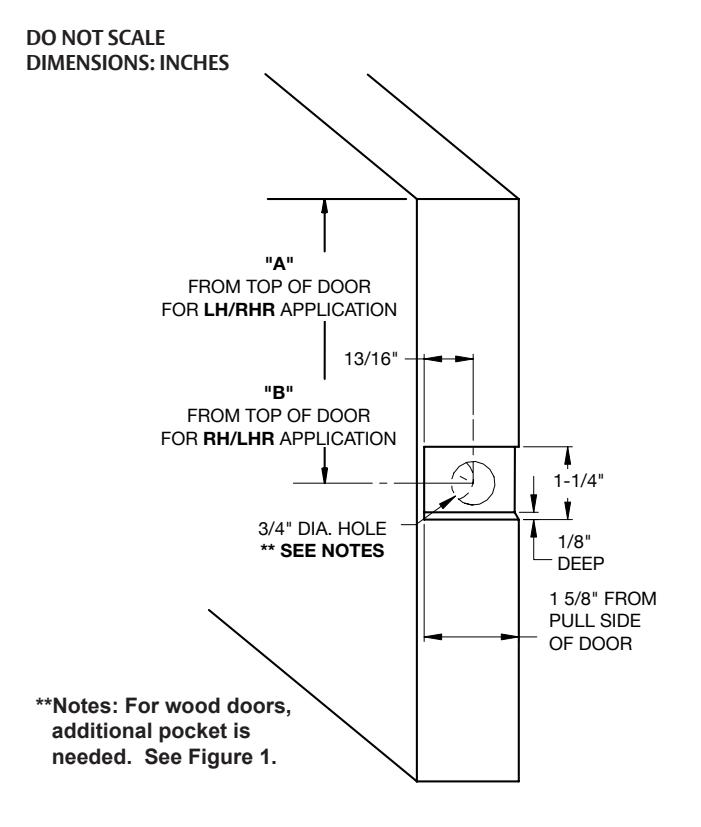

Left Hand Application Shown

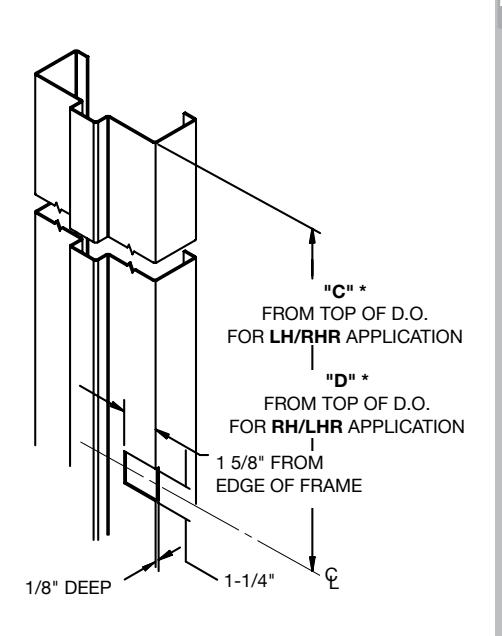

VISUAL REPRESENTATION SHOWING DOOR AND FRAME PREP LOCATION DIFFER. FOR ILLUSTRATION PURPOSE ONLY.

Template M80-018-0003

Effective date: June 12, 2019

Supercedes: All Previous

*Dimensions shown stand true when taking into consideration the industry standard of 1/8" clearance between top of door opening and top of door.

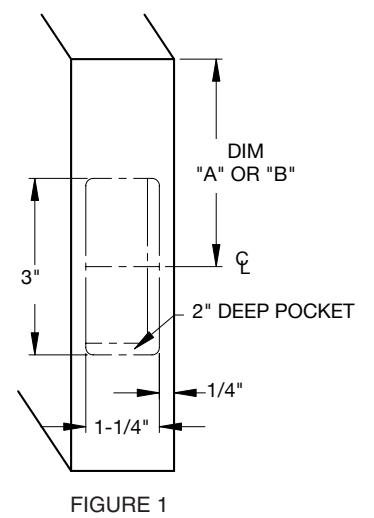

**Notes: For wood doors, additional pocket is needed. See Figure 1.

Page 1 of 2

***DIMENSION SHOWN BELOW IS NEEDED*** AT THE TIME OF ORDERING		LH / RHR APPLICATION HINGE LENGTHS UP TO 83 1/8"		RH / LHR APPLICATION HINGE LENGTHS UP TO 83 1/8"
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP "C"	TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP "D"
	21 9/16	22 7/16	20 13/16	20 11/16	22 9/16
	25 9/16	26 7/16	24 13/16	24 11/16	26 9/16
	29 9/16	30 7/16	28 13/16	28 11/16	30 9/16
	33 9/16	34 7/16	32 13/16	32 11/16	34 9/16
	37 9/16	38 7/16	36 13/16	36 11/16	38 9/16
STANDARD LOCATION	41 9/16	42 7/16	40 13/16	40 11/16	42 9/16
	45 9/16	46 7/16	44 13/16	44 11/16	46 9/16
	49 9/16	50 7/16	48 13/16	48 11/16	50 9/16

***DIMENSION SHOWN BELOW IS NEEDED*** AT THE TIME OF ORDERING		LH / RHR APPLICATION		RH / LHR APPLICATION
		HINGE LENGTHS 83 3/16" - 95"		HINGE LENGTHS 83 3/16" - 95"
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP "C"	TOP TO CENTER DOOR PREP "B"	TOP TO CENTER FRAME PREP " D "
	27 1/2	26 5/8	28 1/2	28 3/8	26 3/4
	31 1/2	30 5/8	32 1/2	32 3/8	30 3/4
	35 1/2	34 5/8	36 1/2	36 3/8	34 3/4
	39 1/2	38 5/8	40 1/2	40 3/8	38 3/4
	43 1/2	42 5/8	44 1/2	44 3/8	42 3/4
STANDARD LOCATION	47 1/2	46 5/8	48 1/2	48 3/8	46 3/4
	51 1/2	50 5/8	52 1/2	52 3/8	50 3/4
	55 1/2	54 5/8	56 1/2	56 3/8	54 3/4
	59 1/2	58 5/8	60 1/2	60 3/8	58 3/4
	63 1/2	62 5/8	64 1/2	64 3/8	62 3/4

***DIMENSION SHOWN BELOW IS NEEDED*** AT THE TIME OF ORDERING		LH / RHR APPLICATION		RH / LHR APPLICATION
		HINGE LENGTHS 95 1/16" - 118 3/4"		HINGE LENGTHS 95 1/16" - 118 3/4"
LOCATION	TOP TO CENTER BETWEEN EL CLIPS	TOP TO CENTER DOOR PREP "A"	TOP TO CENTER FRAME PREP " C "	TOP TO CENTER DOOR PREP " B "	TOP TO CENTER FRAME PREP " D "
	39 3/8	38 1/2	40 3/8	40 1/4	38 5/8
	43 3/8	42 1/2	44 3/8	44 1/4	42 5/8
	47 3/8	46 1/2	48 3/8	48 1/4	46 5/8
	51 3/8	50 1/2	52 3/8	52 1/4	50 5/8
	55 3/8	54 1/2	56 3/8	56 1/4	54 5/8
STANDARD LOCATION	59 3/8	58 1/2	60 3/8	60 1/4	58 5/8
	63 3/8	62 1/2	64 3/8	64 1/4	62 5/8
	67 3/8	66 1/2	68 3/8	68 1/4	66 5/8
	71 3/8	70 1/2	72 3/8	72 1/4	70 5/8
	75 3/8	74 1/2	76 3/8	76 1/4	74 5/8
	79 3/8	78 1/2	80 3/8	80 1/4	78 5/8

Template M80-018-0003

Effective date: June 12, 2019

Supercedes: All Previous

Page 2 of 2
