Markar Door Clearance Guide
Open the original PDF document
View PDFArchitectural Door Accessories

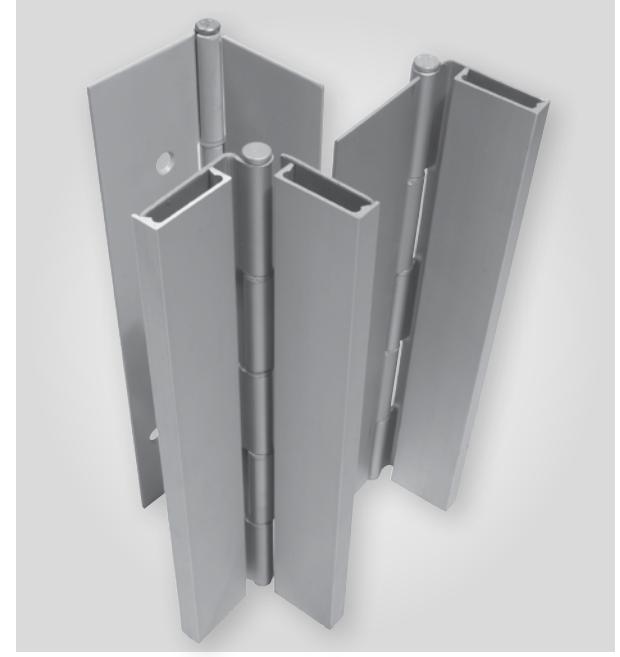

Markar Door Clearance Guide
Proper operation and performance of a door opening depends upon the appropriate door size relative to the frame dimension. Use this Door Clearance Guide to calculate the correct door size needed for a particular application.
Start by locating the hinge series and model number, then select non-adjustable or adjustable application, and select single door or pair of doors to attain the proper door clearance.
Table of Contents
Under-sizing Required For All Door Applications:
Markar Hinge Side Clearance ...................................Dimension Specific Per Model Lock side clearance ......................................................1/8" Per N.F.P.A. (For single as well as between a pair of doors) Allowance for frame irregularities.........................1/16" (Optional and included in all hinge Total Under-sizing for single and pairs of doors)

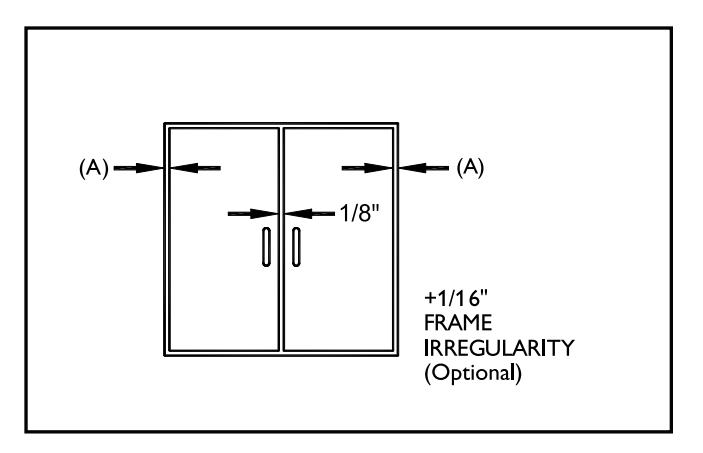

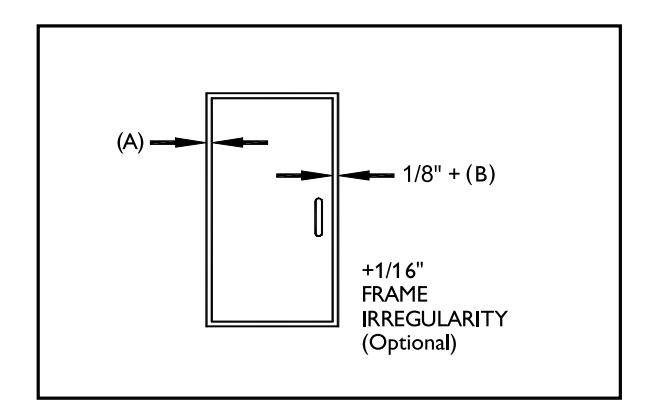

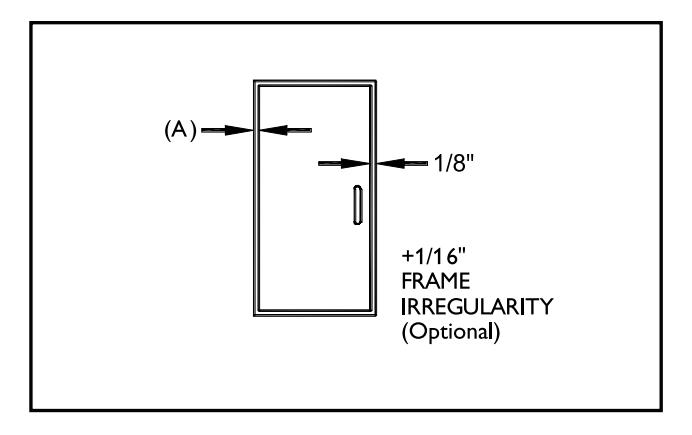

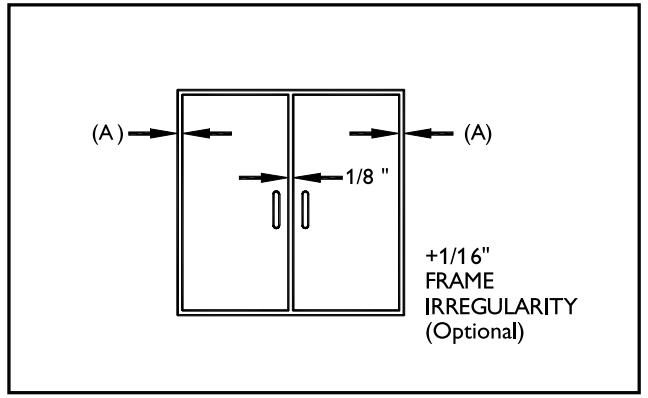

Example for Standard Single Door: MODEL: (HG305).....................................................5/16" Markar Hinge Side Clearance 1/8" Lock-side Clearance +1/16" Frame Irregularity (Optional) 1/2" (As shown in 300 Series Standard Non-Adjustable Chart) Example for Standard Pair of Doors: MODEL: (HG305).....................................................5/16" Markar Hinge Side Clearance (Door 1) The two formulas below are based on a standard Non-Adjustable Application
5/16" Markar Hinge Side Clearance (Door 2) 1/8" Lock-side Clearance (Between Pair of Doors)
13/16" (As shown in 300 Series Standard Non-Adjustable Chart)
+1/16" Frame Irregularity (Optional)

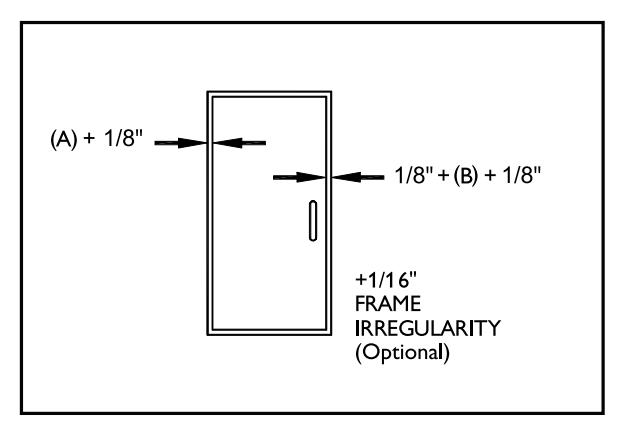

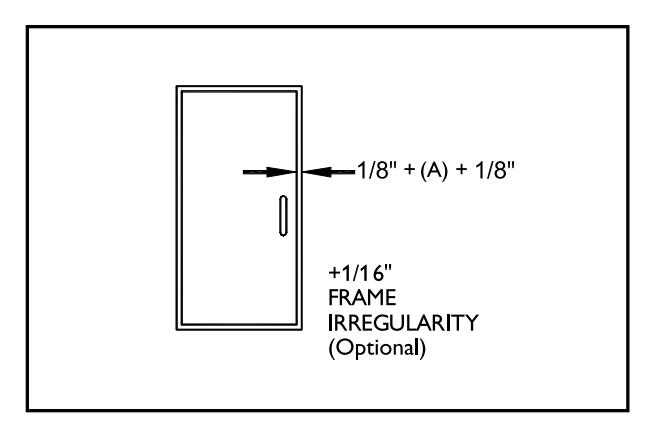

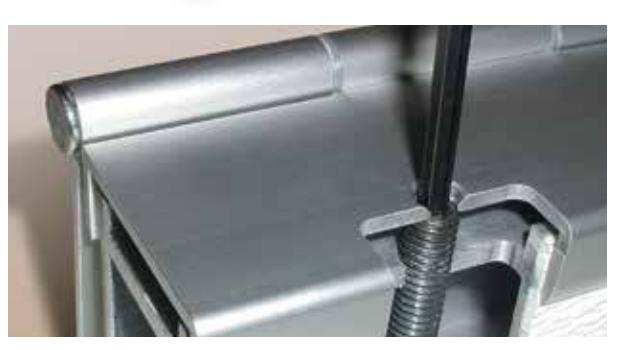

For adjustable models used in an Adjustable Application , an additional 1/8" of clearance per door is required as shown in the two formulas below
Example for Standard Single Door:

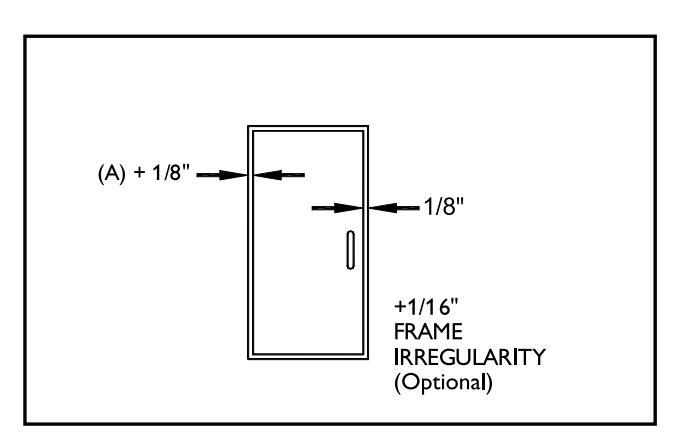

MODEL: (HG305).....................................................5/16" Markar Hinge Side Clearance 1/8" Lock-side Clearance 1/16" Frame Irregularity (Optional) +1/8" Additional Adjustment Clearance 5/8" (As shown in 300 Series Adjustable Chart)

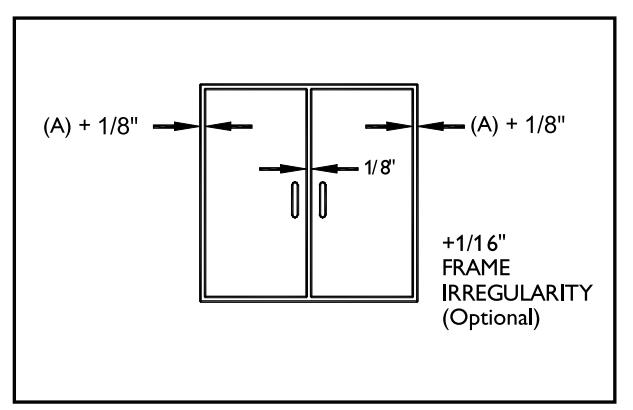

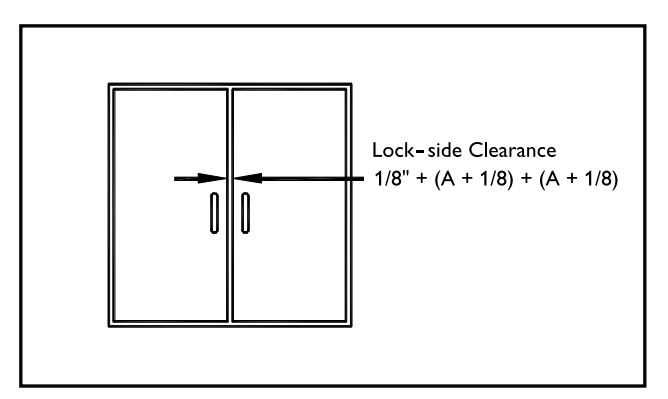

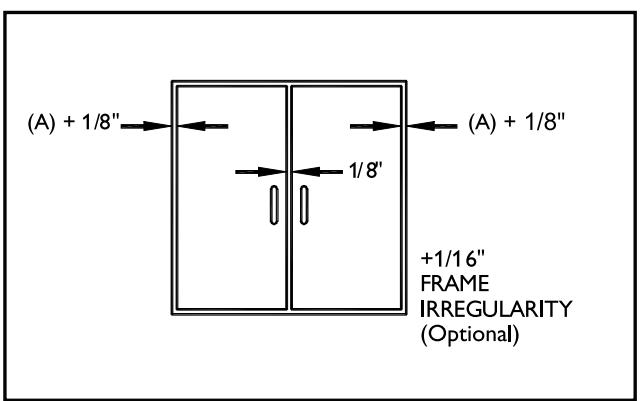

Example for Standard Pair of Doors:
MODEL: (HG305).....................................................5/16" Markar Hinge Side Clearance (Door 1) 5/16" Markar Hinge Side Clearance (Door 2) 1/8" Lock-side Clearance (Between Pair of Doors) 1/16" Frame Irregularity (Optional) 1/8" Additional Adjustment Clearance (Door 1) +1/8" Additional Adjustment Clearance (Door 2) 1-1/16" (As shown in 300 Series Adjustable Chart)
| MODEL |
Hinge Side
Clearance (A) |
Total
Under-sizing For Single Door |
| FM300 | 1/4 | |
| *FS301 | 1/8 | |
| *FS302 | 1/8 | |
| *HS303 | 1/8 | |
| *HM304 | 1/8 | |
| HG305 | 5/16 | |
| *HG306 | 1/8 | |
| *FS/SC309 | 1/8 | |
| HG310 | 1/4 | |
| *HG311 | 1/8 | |
| HG315 | 1/4 | |
| *FS321 | 1/8 | |
| HG322 | 5/16 | |
| HG323 | 5/16 | |
| HG326 | 5/16 | |
| FM327 | 3/4 | |
| HG329 | 1/4 | |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
| 7/16 | 11/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 1/2 | 13/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 7/16 | 11/16 |
| 5/16 | 7/16 |
| 7/16 | 11/16 |
| 5/16 | 7/16 |
| 1/2 | 13/16 |
| 1/2 | 13/16 |
| 1/2 | 13/16 |
| 15/16 | 1-11/16 |
| 7/16 | 11/16 |
Models with * will work with Industry Standard Clearances.
"Adjustable" application
| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| HG305 | 5/16 |
| HG310 | 1/4 |
| HG322 | 5/16 |
| HG326 | 5/16 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
| 5/8 | 1-1/16 |
| 9/16 | 15/16 |
| 5/8 | 1-1/16 |
| 5/8 | 1-1/16 |

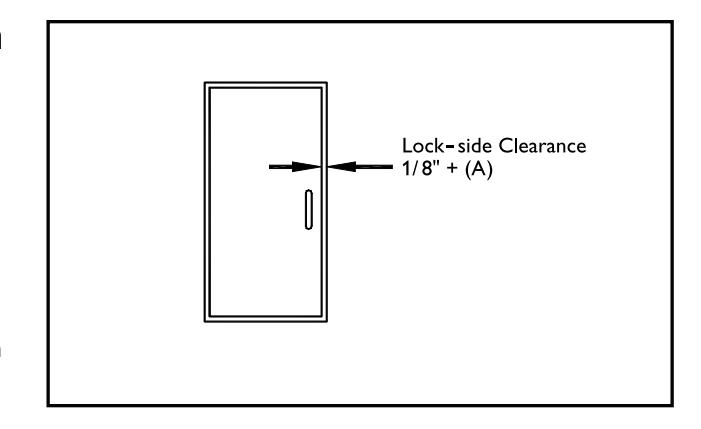

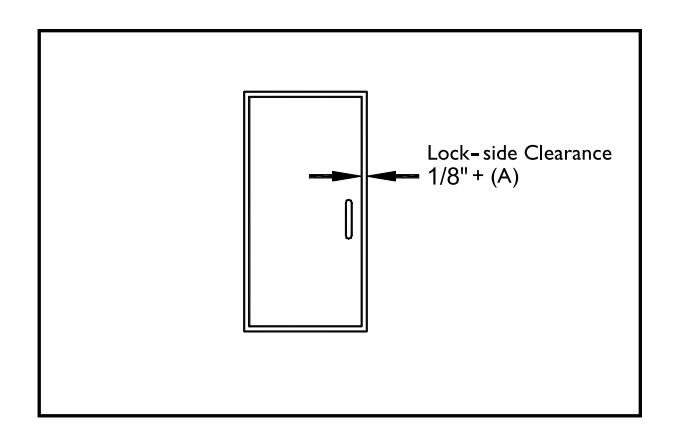

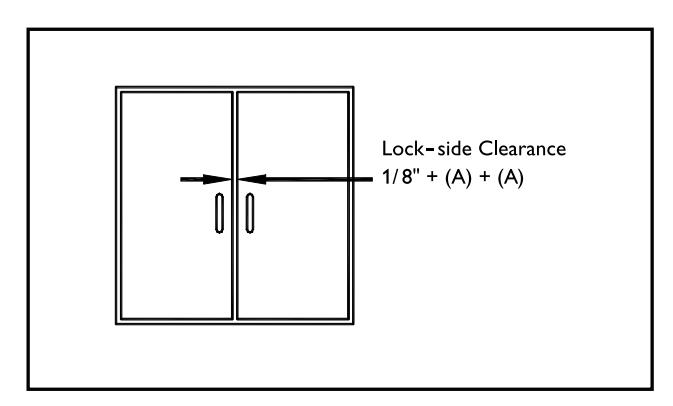

| MODEL |
Lock-side
Side Clearance (A) |
|---|---|

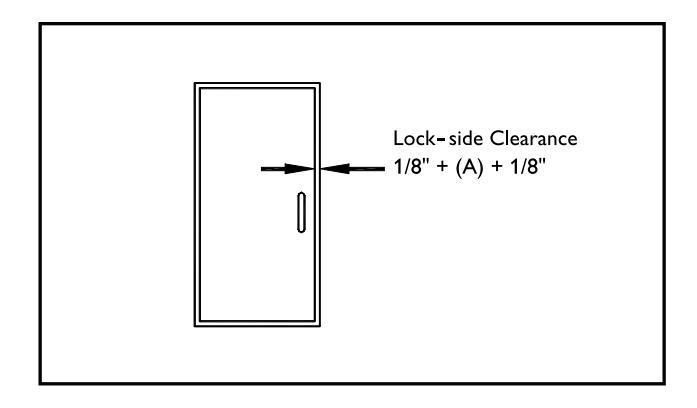

| EG308 | 1/16 |
| EGC308 | 1/16 |
| EGT308 | 1/16 |
|
Total
Under-sizing For Single Door |
Total

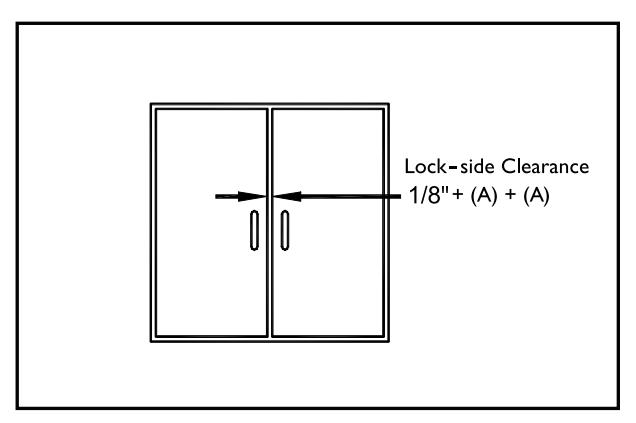

Under-sizing For Pair of Doors |
|---|---|
| 3/16 | 1/4 |
| 3/16 | 1/4 |
| – | 1/4 |
In a stand-alone application, where the EGT308 is used on a pair of doors while the opposite door contains no edge guard, the total under-sizing for the pair of doors would be 3/16".

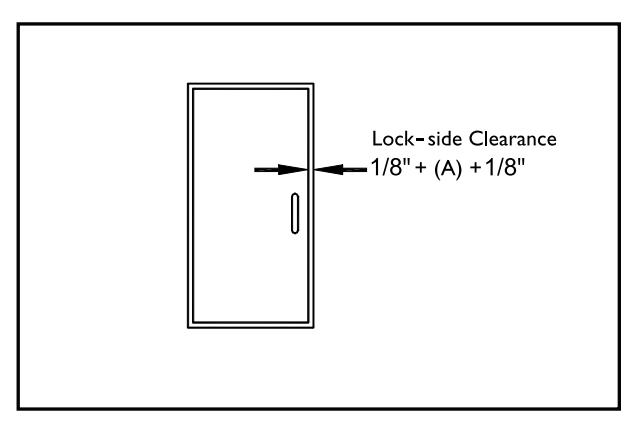

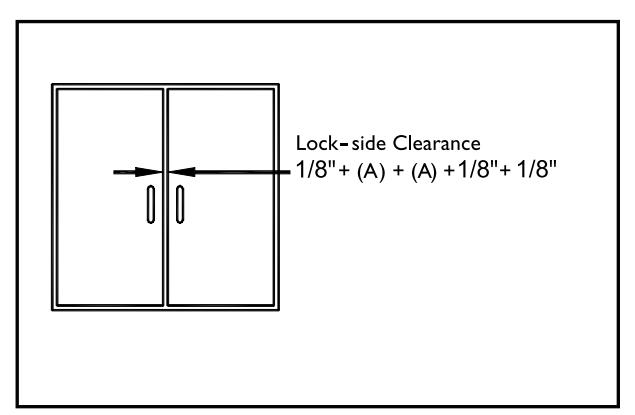

"Adjustable" application
| MODEL |
Lock-side
Side Clearance (A) |
|---|---|
| EG308 | 1/16 |
| EGT308 | 1/16 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
|---|---|
| 5/16 | 1/2 |
| – | 1/2 |
| – | w/ EG308 |
In a stand-alone application, where the EGT308 is used on a pair of doors while the opposite door contains no edge guard, the total under-sizing for the pair of doors would be 5/16".

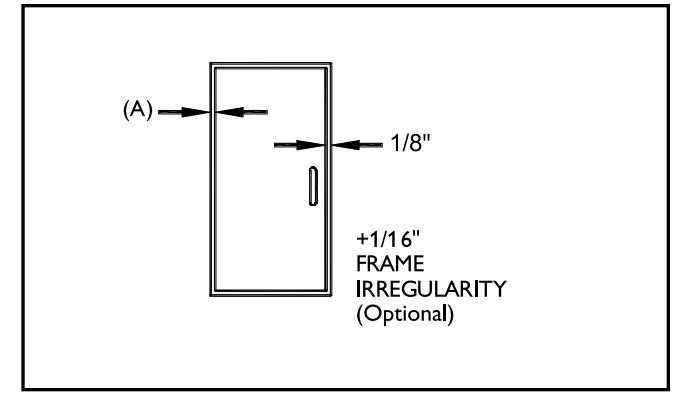

| MODEL |
Hinge Side
Clearance (A) |
| FM200 | 1/4 |
| *FS201 | 1/8 |
| *FS202 | 1/8 |
| *HS203 | 1/8 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
| 7/16 | 11/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
Models with * will work with Industry Standard Clearances.

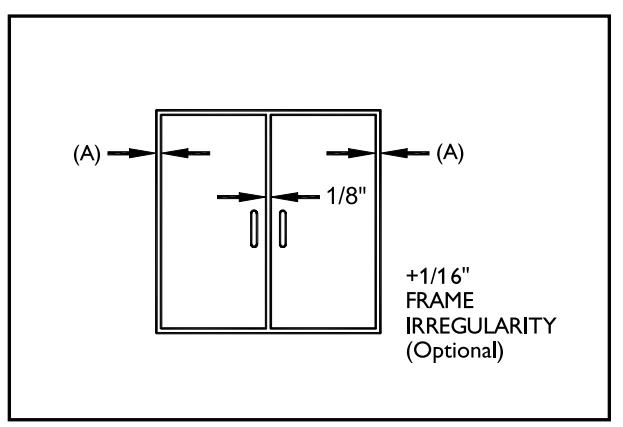

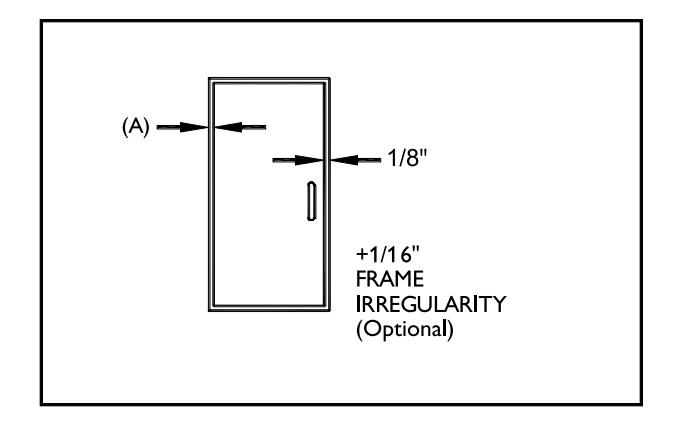

| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| FM100 | 3/8 |
| FM100 (bev.) | 7/16 |
| *FS101 | 1/8 |
| *FS102 | 1/8 |
| HS103 | 3/16 |
| HM104 | 3/16 |
| HG105 | 3/8 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
|---|---|
| 9/16 | 15/16 |
| 5/8 | 1-1/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 3/8 | 9/16 |
| 3/8 | 9/16 |
| 9/16 | 15/16 |
Models with * will work with Industry Standard Clearances.
"Adjustable" application
| MODEL |
Edge
Clearance (A) |
|---|---|
| HG105 | 3/8 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
|---|---|
| 11/16 | 1-3/16 |
| MODEL |
Lock-side
Clearance (A) |
|---|---|
| EG108 | 1/8 |
| Total | Total |
|---|---|
| Under-sizing | Under-sizing |
| For | For |
| Single Door | Pair of Doors |
| 1/4 | 3/8 |
"Adjustable" application
| MODEL |
Lock-side
Clearance (A) |
|---|---|
| EG108 | 1/8 |
| Total | Total |
|---|---|
| Under-sizing | Under-sizing |
| For | For |
| Single Door | Pair of Doors |
| 3/8 | 5/8 |

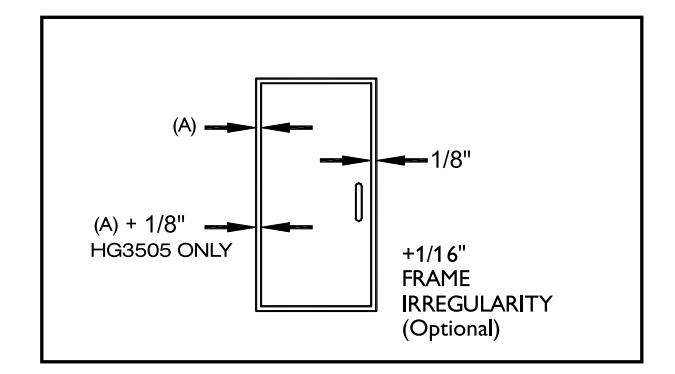

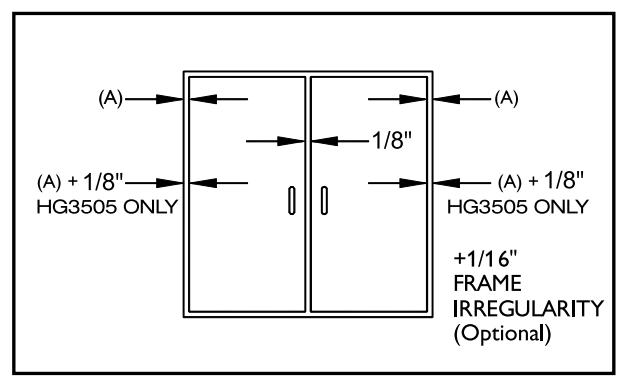

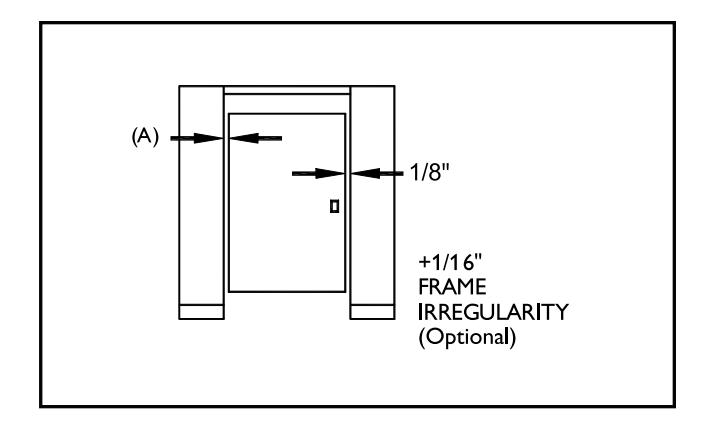

3500 Series Pin & Barrel Stainless Steel Security Hinges
Standard "Non-Adjustable" application
| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| FM3500 | 5/16 |
| FS3501 | 1/8 |
| FS3502 | 1/8 |
| HG3505 | 5/16 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
|---|---|
| 1/2 | 13/16 |
| 5/16 | 7/16 |
| 5/16 | 7/16 |
| 1/2 | 13/16 |
"Adjustable" application
| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| HG3505 | 5/16 |
| Total | Total |
|---|---|
| Under-sizing | Under-sizing |
| For | For |
| Single Door | Pair of Doors |
| 5/8 | 1-1/16 |
400 Series Aluminum Pin & Barrel Toilet Partition Hinges
Standard "Non-Adjustable" application
| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| FS402 | 1/8 |
|
Total
Under-sizing For Single Door |
|
|---|---|
| 5/16 |
900 Series Stainless Steel Pin & Barrel Toilet Partition Hinges
Standard "Adjustable" application
| MODEL |
Hinge Side
Clearance (A) |
|---|---|
| FS902 | 1/8 |
|
Total
Under-sizing For |
|---|
| Single Door |
| 5/16 |
|

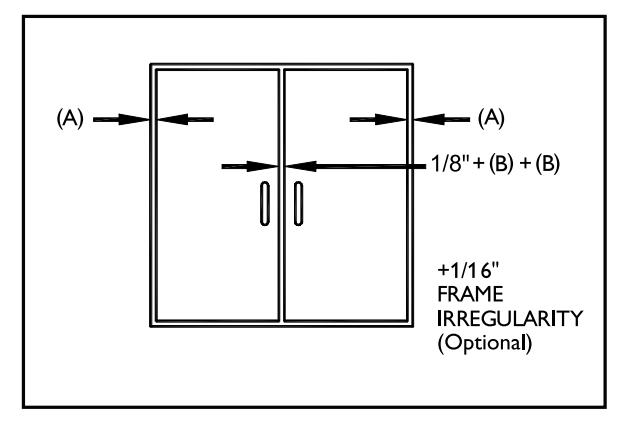

Combination
Model |
Hinge Side
Clearance (A) & Edge Guard Clearance (B) |
|---|---|
| HG305 & | (A) = 5/16 |
| EG308 | (B) = 1/16 |
| HG315 & | (A) = 1/4 |
| EGC308 | (B) = 1/16 |
| HG305 & | (A) = 5/16 |
| EGT308 | (B) = 1/16 |
| HG105 & | (A) = 3/8 |
| EG108 | (B) = 1/8 |
| HG329 & | (A) = 1/4 |
| EG308 | (B) = 1/16 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
| 9/16 | 15/16 |
| 1/2 | 13/16 |
| N/A | 15/16 |
| 11/16 | 1-3/16 |
| 1/2 | 13/16 |

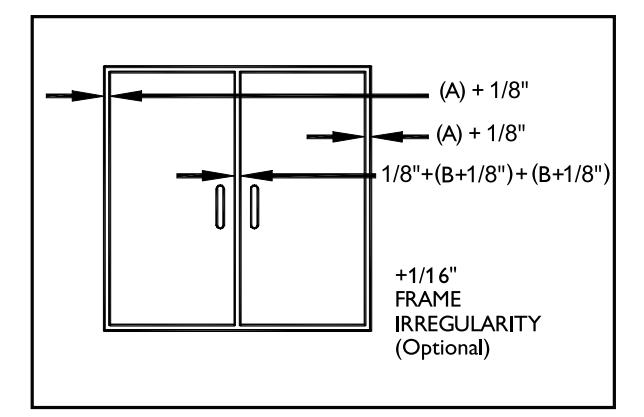

"Adjustable" application
|
Combination
Model |
Hinge Side
Clearance (A) & Edge Guard Clearance (B) |
|---|---|
| HG305 & | (A) = 5/16 |
| EG308 | (B) = 1/16 |
| HG305 & | (A) = 5/16 |
| EGT308 | (B) = 1/16 |
| HG105 & | (A) = 3/8 |
| EG108 | (B) = 1/16 |
| HG3505 & | (A) = 5/16 |
| EG308 | (B) = 1/16 |
|
Total
Under-sizing For Single Door |
Total
Under-sizing For Pair of Doors |
|---|---|
| 13/16 | 1-7/16 |
| N/A | 1-7/16 |
| 15/16 | 1-11/16 |
| 13/16 | 1-7/16 |
