Markar Contious Pin and Barrel Hinges Hole Pattern for 8 Hinges Templates

Architectural Door Accessories

ASSA ABLOY

The global leader in door opening solutions

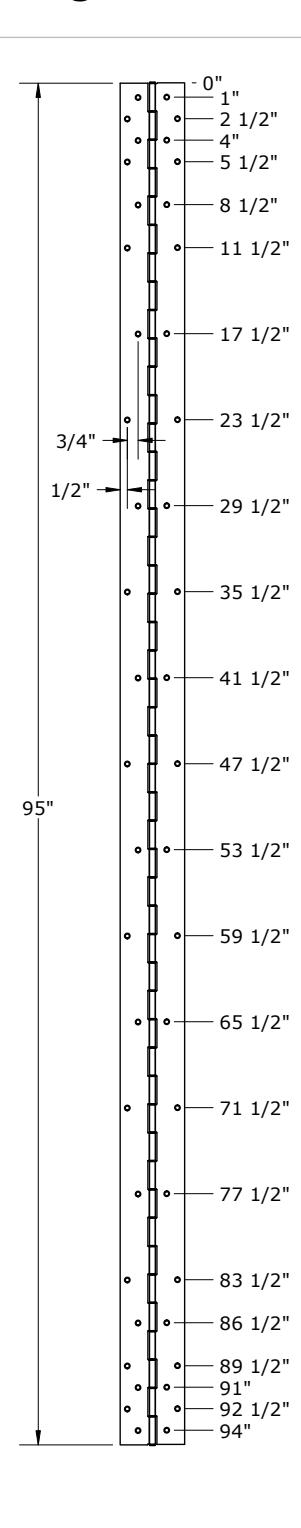

Markar 8'0" (95") Mounting Hole Pattern

DO NOT SCALE DIMENSIONS: INCHES

Template 95-15

Effective date: February 3, 2015

Supercedes: All Previous

USING THE ACTUAL HINGE AS THE TEMPLATE IS HIGHLY RECOMMENDED.

Dimensions shown are for hinge models listed below.

Both Frame and Door Leaf FM100, FM200, FM300, FM300WT10, FM300WT20, FM300WT30, FM300WT40, FM300WT50, FM327, FM344, FM3500, FM600, FM/SC325, HG105, HG305, HG3505, HG315, HG322, HG326, HG329

Door Leaf Only HG306, HG310, HG311, HM104, HM204, HM304

Frame Leaf Only HG323, HS103, HS203, HS303
