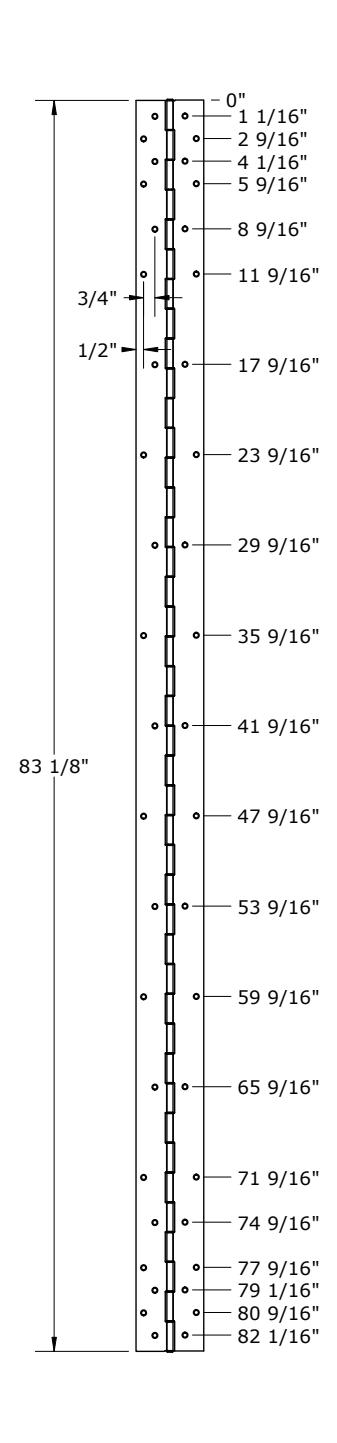

Markar 7'0" (83<sup>1</sup>/<sub>8</sub>") Mounting Hole Pattern

DO NOT SCALE DIMENSIONS: INCHES

Template 83-15

Effective date: February 3, 2015

Supercedes: All Previous

USING THE ACTUAL HINGE AS THE TEMPLATE IS HIGHLY RECOMMENDED.

Dimensions shown are for hinge models listed below.

Both Frame and Door Leaf FM100, FM200, FM300, FM300WT10, FM300WT20, FM300WT30, FM300WT40, FM300WT50, FM327, FM344, FM3500, FM600, FM/SC325, HG105, HG305, HG3505, HG315, HG322, HG326, HG329

Door Leaf Only HG306, HG310, HG311, HM104, HM204, HM304

Frame Leaf Only HG323, HS103, HS203, HS303
