INSTRUCTIONS FOR HIT-111 MULTI PURPOSE CYLINDRICAL LEVER TEMPLATE
WHEN USING POWER TOOLS ALWAYS WEAR EYE AND EAR PROTECTION!!

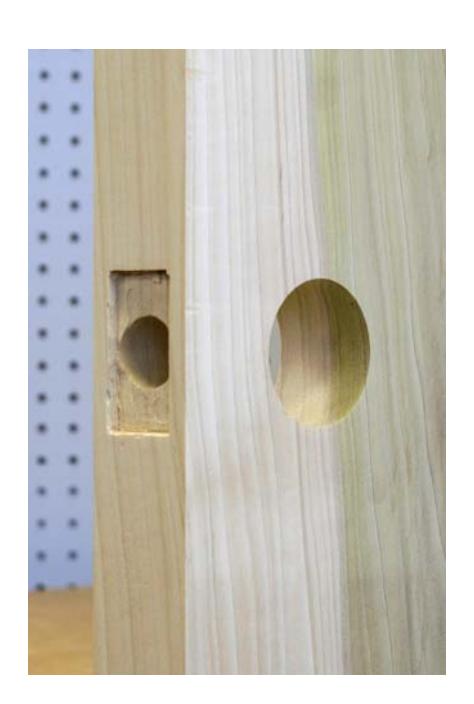

With the use of the HIT-111, a standard 2-1/8" door prep can easily and accurately be retrofitted to accept a number of different cylindrical lever handle locks.

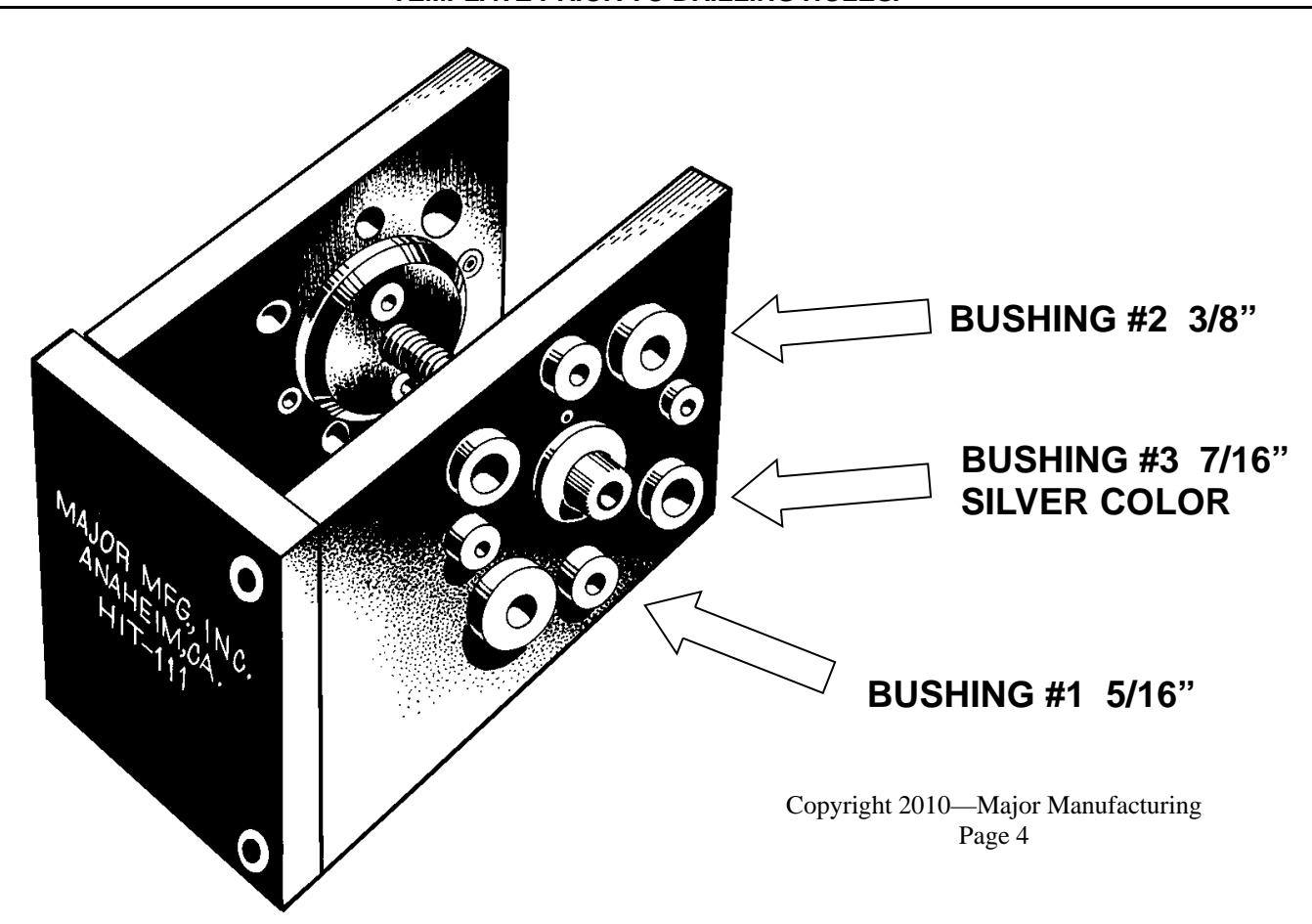

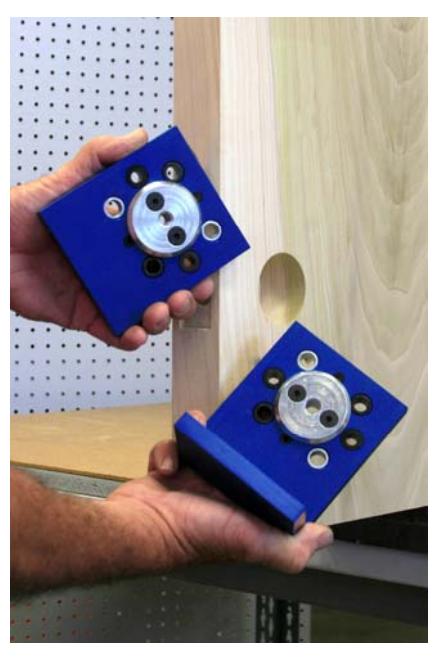

The template set consists of both inside and outside drill guides. All required holes are lined with hardened bushings.
On the inside of the template set are alignment washers. They will drop into the existing cross bore and align the guide to the door.

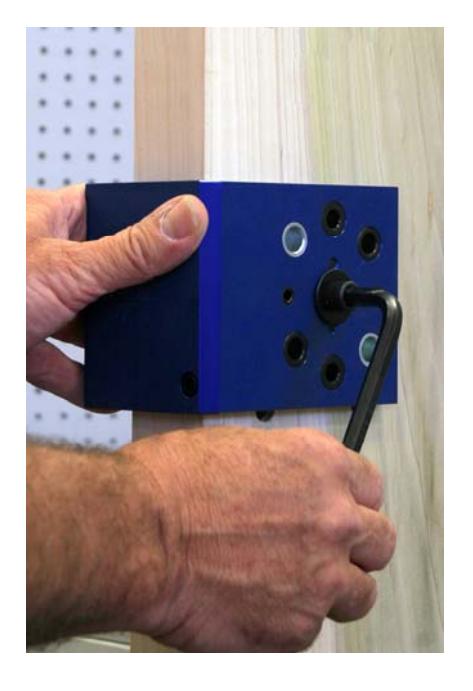

Use the supplied 3/8" socket cap screw to fasten both templates together. Just snug the two plates together.

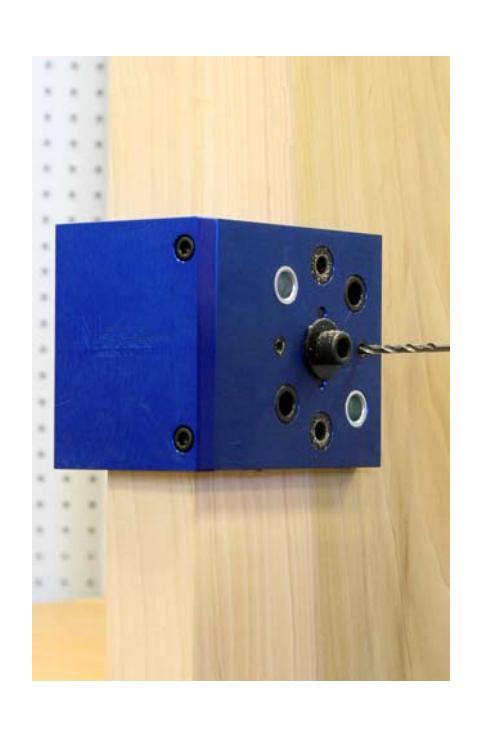

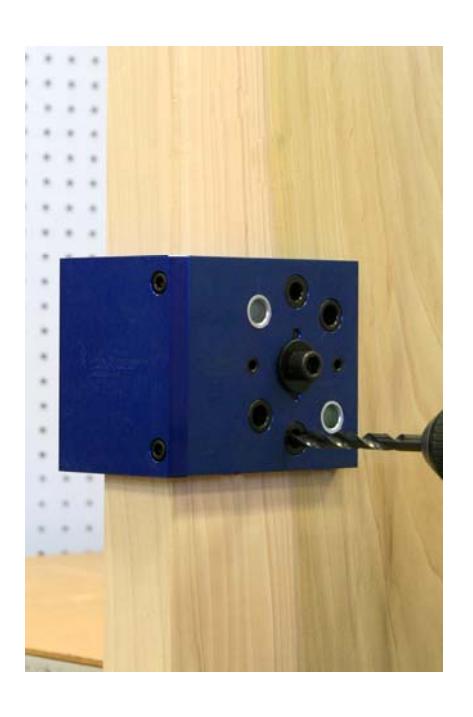

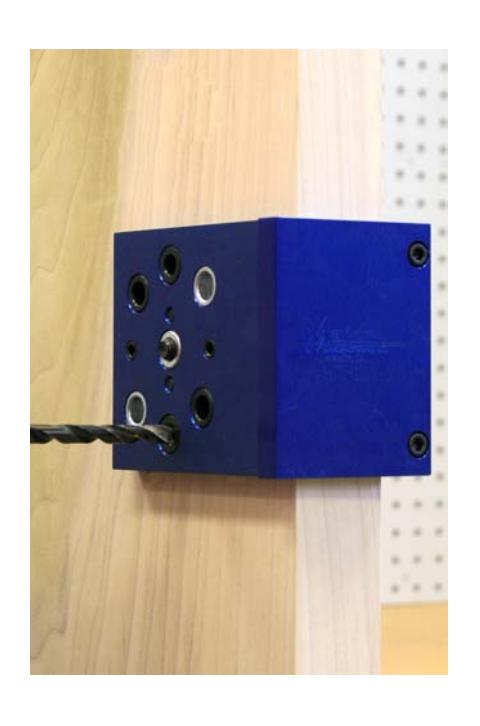

We will be drilling the most popular retrofit holes for this installation. Two 5/16" diameter holes located at 6:00 and 12:00. The procedures will be the same for the other holes. Drill the two holes half way from both sides of the door. When drilling, back the drill out several times to help remove chips. See the chart on the back page for other locks that can be installed with this drill guide.
Are you wearing your safety glasses??

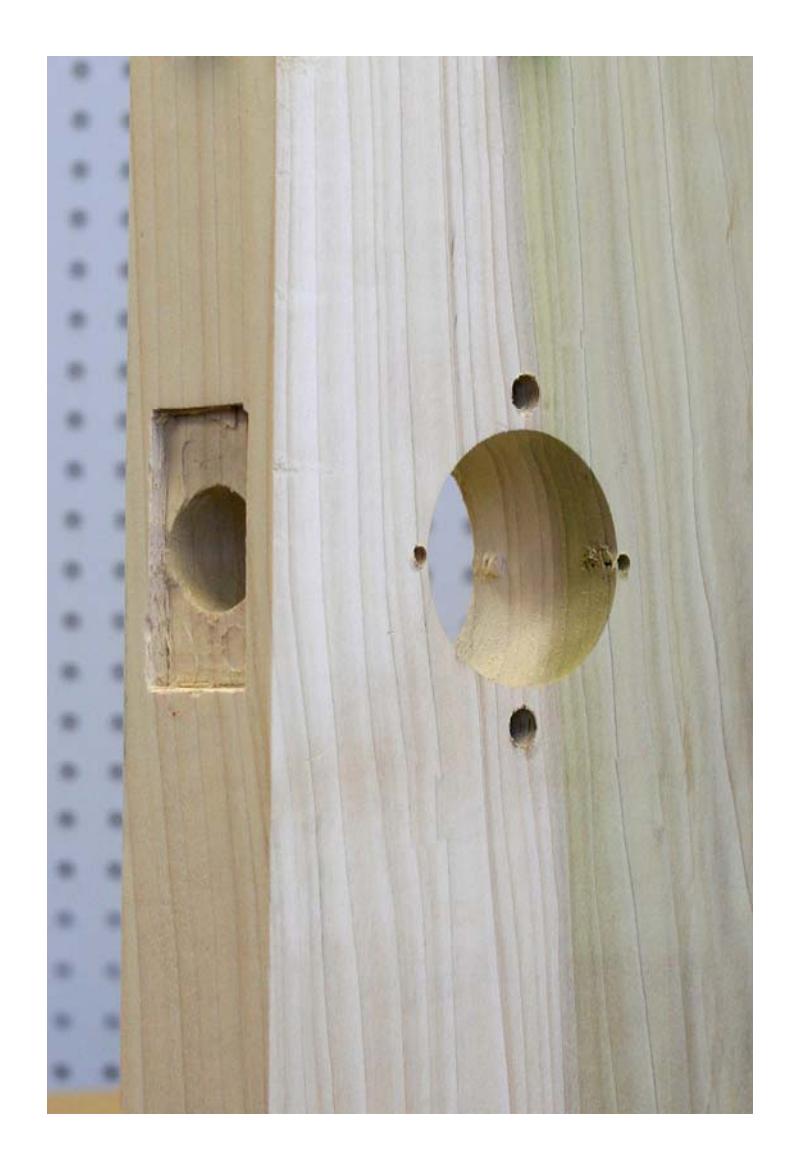

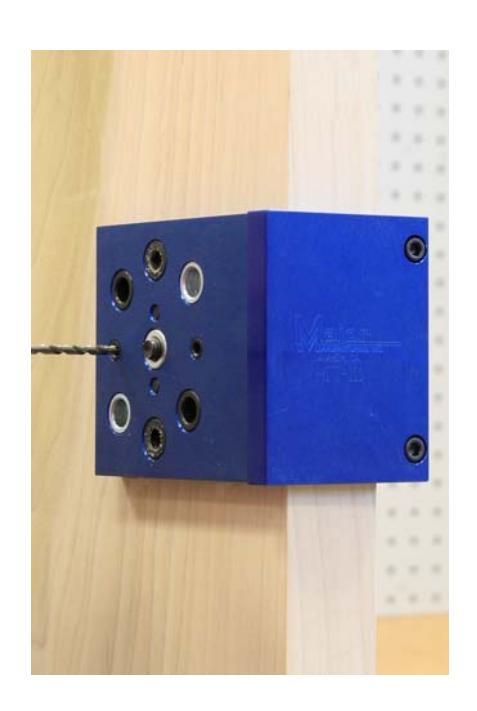

If the lock you are installing uses anchor plate lugs, they can be installed by drilling two 5/32" holes using the bushings at 3:00 and 9:00 on both sides of the door. Drill to about 1/4" depth. You may need to notch these holes with a file on a steel door.
Copyright 2010 Major Manufacturing Page 2
Remove HIT-111 from door and install cylindrical lever per manufacturers directions.
| LOCK MANUFACTURER | HOLE POSITION | HOLE SIZE | BUSHING # |
|---|---|---|---|
| ARROW SIERRA | 2 & 8 O'CLOCK | 3/8" | 2 |
| ASSA BROOKLYN | 2 & 8 O'CLOCK | 3/8" | 2 |
| CORBIN/RUSSWIN CL3300 SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| CORBIN/RUSSWIN CL3400 SERIES(DISC) | 10 & 4 O'CLOCK | 7/16" | 3 |
| CORBIN/RUSSWIN CL3500 SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| CORBIN/RUSSWIN CL3600 SERIES | 10 & 4 O'CLOCK | 7/16" | 3 |
| CORBIN/RUSSWIN CL3800 SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| CORBIN/RUSSWIN CL3900 SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| LORI 2100 SERIES RETRO KIT | 6 & 12 O'CLOCK | 5/16" | 1 |
| LORI 2200 SERIES RETRO KIT | 6 & 12 O'CLOCK | 5/16" | 1 |
| LORI 2250 SERIES RETRO KIT | 6 & 12 O'CLOCK | 5/16" | 1 |
| MARKS 170 SERIES GRADE 2 (NEW) | 6 & 12 O'CLOCK | 5/16" | 1 |
| MARKS 195/295 SERIES GRADE 1 | 6 & 12 O'CLOCK | 5/16" | 1 |
| MEDECO EMBASSY 17 SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| CHECK CHASSIS | |||
|
MEDECO EMBASSY 19 SERIES
NT FALCON T SERIES |
BEING USED
6 & 12 O'CLOCK |
5/16" | 1 |
| OMNILOCK | *** | *** | *** |
| PDQ SPIRIT ALL SERIES | 6 & 12 O'CLOCK | 5/16" | 1 |
| SARGENT 10 LINE GRADE 1 (OLD STYLE) | 2 & 8 O'CLOCK | 3/8" | 2 |
| SARGENT 10 LINE GRADE 1 (NEW STYLE) | USES HIT-15 DRILL GUIDE | ||
| SCHLAGE RHODES GRADE 1 | 6 & 12 O'CLOCK | 5/16" | 1 |
| SCHLAGE AL SERIES GRADE 2 | 6 & 12 O'CLOCK | 5/16" | 1 |
| YALE 5300LN | 6 & 12 O'CLOCK | 5/16" | 1 |
| YALE 5400LN | 6 & 12 O'CLOCK | 5/16" | 1 |
| ***VARIES DUE TO CHASSIS USED | |||
THIS CHART WAS CORRECT WHEN PRINTED. DUE TO CHANGES IN THE INDUSTRY, PLEASE VERIFY HOLE LOCATION WITH THE MANUFACTURERS TEMPLATE PRIOR TO DRILLING HOLES.
