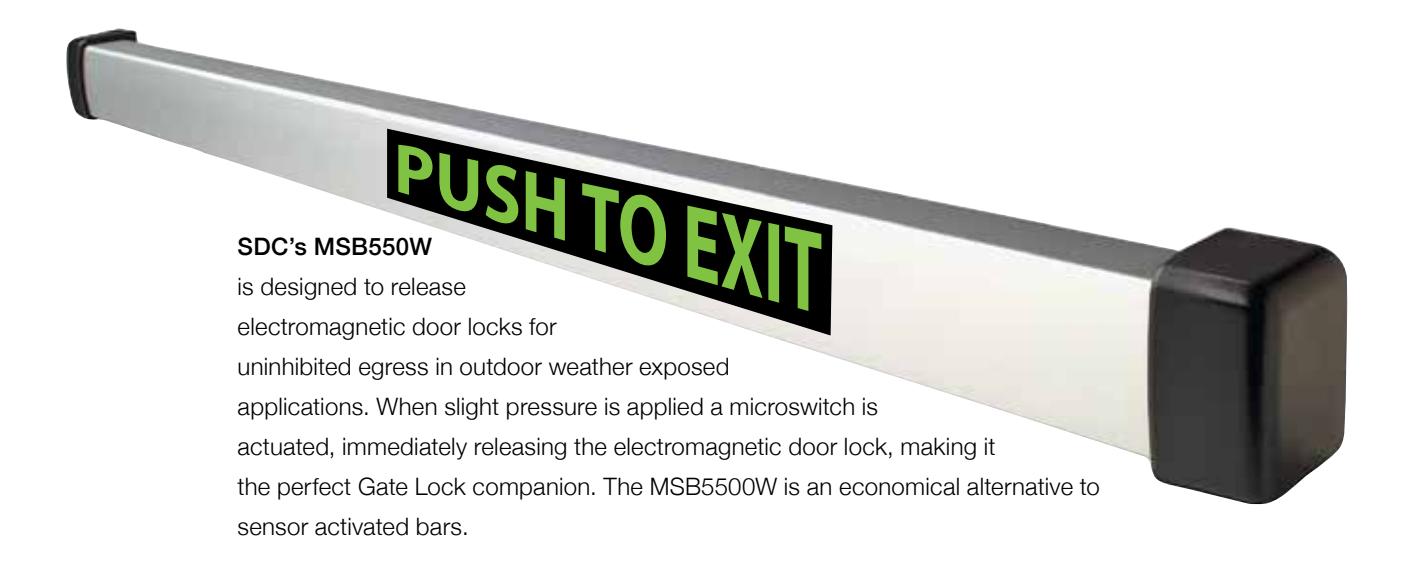

MSB550W

Outdoor Weather Resistance Mechanical Switch Bar

Water Sealed Switches

The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity. Switch body meets IP67 (IEC 529) requirements.

Heavy Duty Construction

The MSB550W utilizes heavy-duty aluminum extrusion and rugged end caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.

Only 1/8" Total Bar Movement

The MSB550W has a maximum movement of only .125". Trigger activation to release the electromagnetic lock is quick and quiet.

Perfect Companion for Gate Lock Solutions

The MSB550W's watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.

MODELS

MSB550-2VW 628 Aluminum Anodized MSB550-2YW 335 Black Anodized

SPECIFICATIONS

Electrical Specifications

Contact	2 SPDT, 3 Amp @ 30VDC (RESISTIVE)
Operating Temperature	-40°F to 185°F

Only 1/8" movement for quick, quiet operation

The smallest profile in the industry to provide ample clearance for egress and maintain superior aesthetics of high profile openings.

PRODUCT SKU SAMPLE: MSB550-2V 42 W

HOW TO ORDER

1| SPECIFY MODELS

PT-3 Power Transfer included

MSB550-2VW 628 Aluminum Anodized MSB550-2YW 335 Black Anodized

2| SPECIFY OPTIONS

Standard Length: 36" Door Bars for Wide Doors:

42 For 42" Wide Door. May be field cut. 48 For 48" Wide Door. May be field cut.

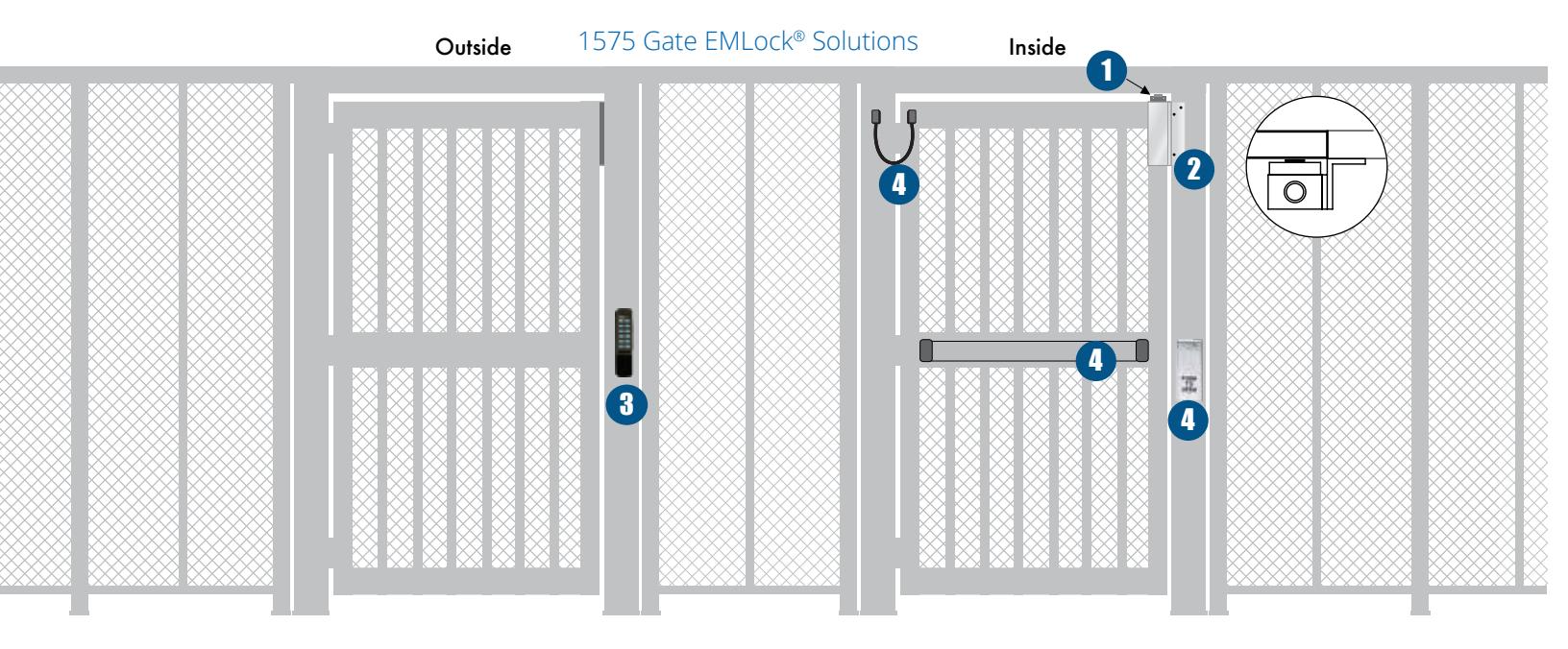

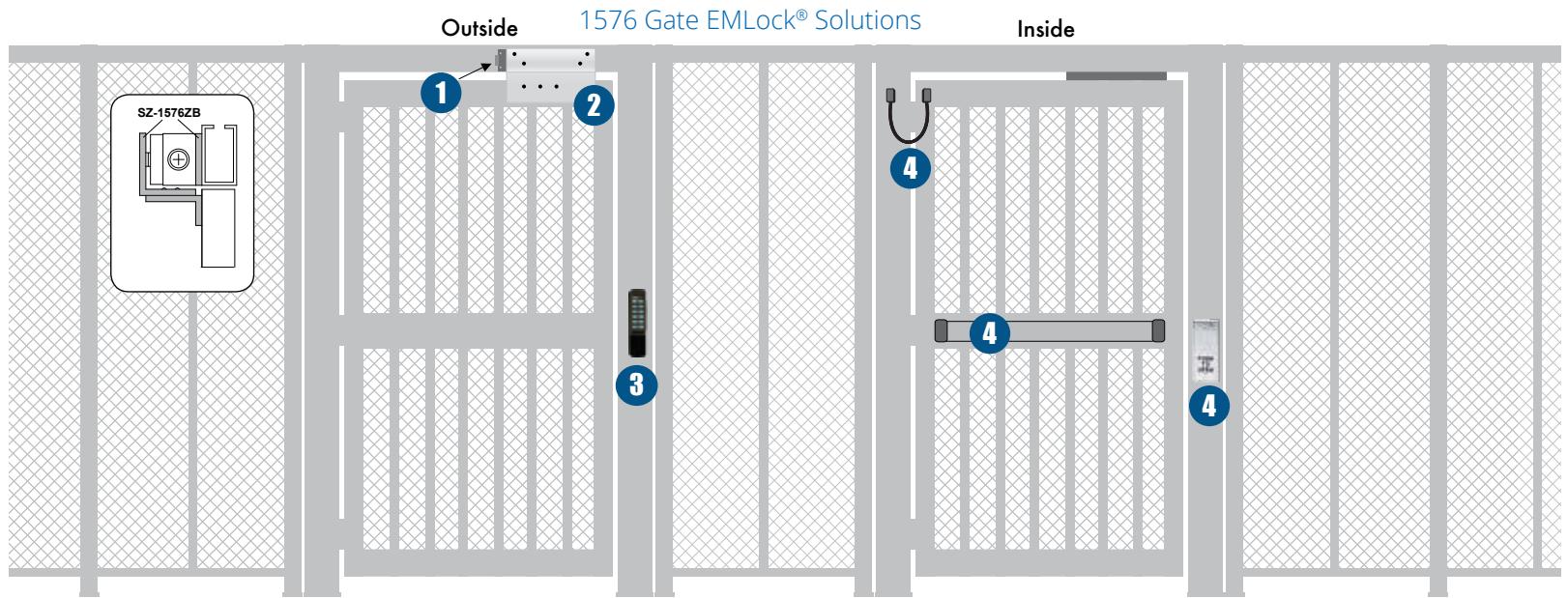

GATE EMLOCK® SOLUTIONS / ACCESSORIES

1 GATE MAGNETIC LOCK

1575U Gate Magnetic Lock

1576U Gate Magnetic Lock with face drilled mounting

2 GATE MOUNT BRACKETS

1575BK / 1576-ZBV / Application Specific Brackets 1576-AB / 1576-BK

3 OUTDOOR ACCESS CONTROL

923 Narrow Stand Alone Digital Keypad

4 Request-To-Exit

48201U ADA approved Narrow Mullion Push Plate Switch
