View PDFEXIT MECHANICAL SWITCH DK Distributor
STANDARD FEATURES
Actuation: 1/8" total bar movement for mechanical switch actuation
Contact: SPDT, 5 Amp @ 30VDC (2nd switch
optional)
Length: 36"
Accessories include: PT-2U Power Transfer Loop
| SPECIFY MODEL | Add to List | ||||
|---|---|---|---|---|---|
| MSB550 | Mechanical Request-To-Exit Bar | 236.00 | |||
| MSB550-2 | Mechanical Request-To-Exit Bar, Dual-Failsafe | 268.00 | |||
| SPECIFY FINISH | Add to List | ||||
| V | 628 Dull Aluminum | N/C | |||
| Y | 335 Dull Black | 8.00 | |||
| S | 629 Bright Stainless | 156.00 | |||
| U | 630 Dull Stainless | 156.00 | |||
| OPTIONAL LENGTHS* | Add to List | ||||
| 42 | 42" Door Opening | N/C | |||
| 48 | 48" Door Opening | N/C | |||
* If no length specified, the standard length is 36". 42" and 48" length bars may be field cut.

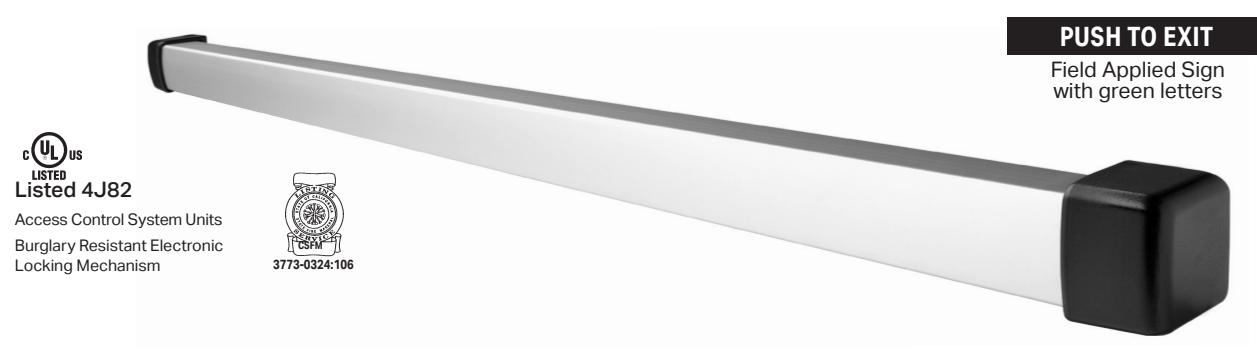

EXIT MECHANICAL SWITCH - OUTDOOR WEATHER RESISTANCE DK Distributor Discount Code STANDARD FEATURES OUTDOOR, WEATHER RESISTANCE Water Sealed Switches Actuation: 1/8" total bar movement for mechanical switch actuation Contact: 2-SPDT, 3 Amp @ 30VDC (2nd switch included) Length: 36" Accessories include: PT-3V Power Transfer Loop, PUSH TO EXIT Field Applied Sign with green letters 42 42" Door Opening N/C 48 48" Door Opening N/C MSB550-2W Mechanical Request-To-Exit Bar, Dual-Failsafe, Weatherized 388.00 V 628 Dull Aluminum N/C Y 335 Dull Black N/C SPECIFY MODEL Add to List SPECIFY FINISH Add to List OPTIONAL LENGTHS* Add to List
* If no length specified, the standard length is 36". 42" and 48" length bars may be field cut.
