MS09 SERIES TOUCHLESS TECHNOLOGY ACTIVATION SENSORS
MAGIC SWITCH
FEATURES
- Touchless technology is ideal for use in sterile environments (i.e. clean-rooms, healthcare facilities, food processing plants)
- Can be hidden from view by installing the microwave sensor behind non-metallic surfaces (i.e. mounted behind drywall)

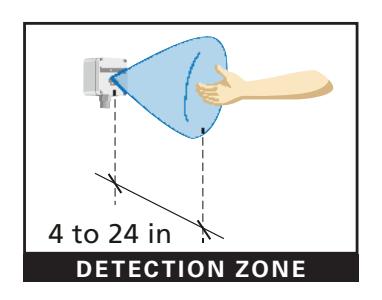

- Variable adjustment of detection zone from 4 to 24 inches
- Water-resistant foam gasket provides increased reliability when exposed to water or cleaning products
- Low profile, beveled design reduces accidental damage
Easy Installation
APPLICATIONS

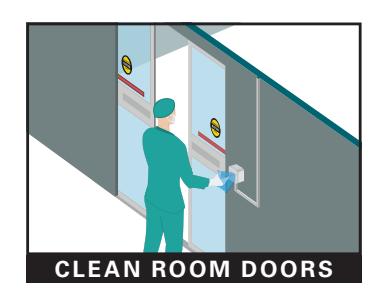

- Sterile environments (clean-rooms, operating rooms, pharmaceutical, manufacturing, etc.)
- Healthcare facilities (hospitals, assisted living, elder care, etc.)
- Food processing plants (reduces cross-contamination)
- Wash down environments
The NEMA 4 rated MS09 utilizes microwave motion technology and the Doppler Radar effect. The MS09 detects moving objects such as a hand, cart or wheelchair. It is also not affected by stationary objects or changes in temperature.

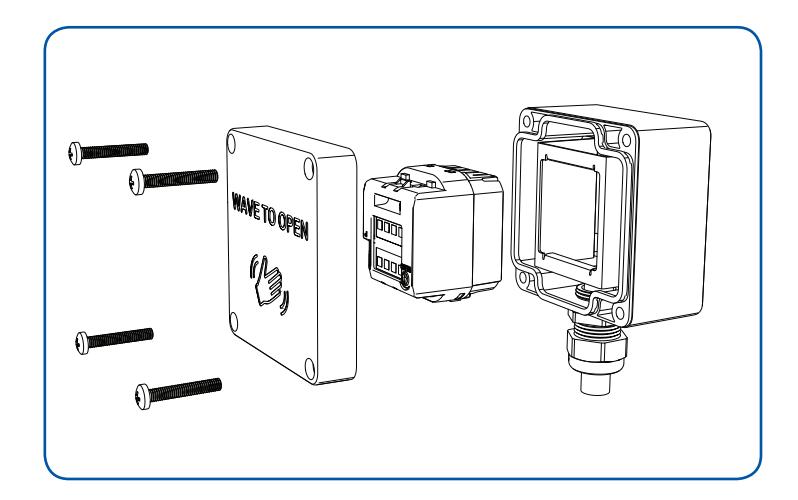

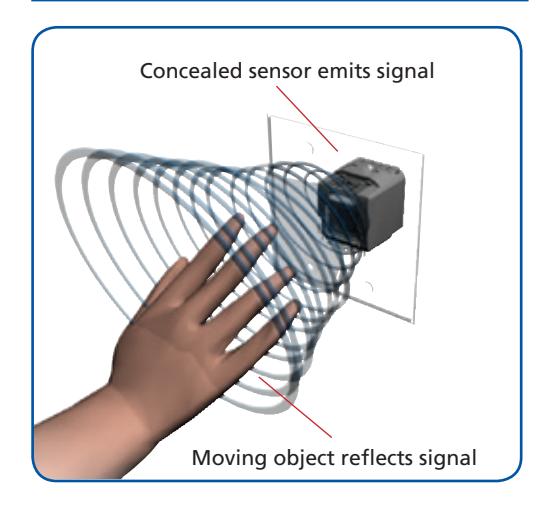

How It Works Components View
International Door Closers, Inc.
West: 800-544-4422 • East: 800-225-6737 COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
INDUSTRIAL HIGH SPEED ROLL-UP DOOR
MS09 SERIES
10MS09TL Wave To Open Text and Logo
10MS09L Wave To Open Logo
TECHNICAL SPECIFICATIONS
| Technology | K-Band Microwave Doppler Radar |
|---|---|
| Radiated Frequency | 24.125 GHz |
| Transmitter Radiated Power | < 20 dBm EIRP |
| Radiated Power Density | < 5 mW/cm2 |
| Detection Mode | Motion (bidirectional) |
| Detection Range | 4 to 24 inches (adjustable) |
| Output | Relay with switch-over contact (free of potential) |
| Max. Voltage | 60 VDC; 125 VAC |
| Max. Current | 1 A (resistive) |
| Max. Switching Power | 30 W (DC); 60 VA (AC) |
| Output Hold Time | 0.5 s (in pulsed mode) |
| Supply Frequency | 50 to 60 Hz |
| Supply Voltage | 12 to 24 VAC ± 10% |
| 12 to 24 VDC + 30%; − 10% | |
| Power Consumption | < 1.5 W |
| Material / Colors | ASA, Nylon / White |
| Cable Type |
Compatible with standard, 4-conductor low voltage cable
(not suppied) |
| Temperature Range | −4ºF to +131ºF |
| Degree of Protection | NEMA 4 |
| Certifications | EMC: 2004 / 108 / EC; FCC: G9B-MS08; IC: 4680A-MS08 |
Specifications are subject to change without prior notice.
