TOUCHLESS TECHNOLOGY ACTIVATION SENSORS

MS08 SERIES

MAGIC SWITCH

FEATURES

• Touchless technology is ideal for use in sterile environments (i.e. clean-rooms, healthcare facilities, food processing plants)
• Can be hidden from view by installing the microwave sensor behind non-metallic surfaces (i.e. mounted behind drywall)
• Variable adjustment of detection zone from 4 to 24 inches
• Water-resistant foam gasket provides increased reliability when exposed to water or cleaning products
• Low profile, beveled design reduces accidental damage

Easy Installation

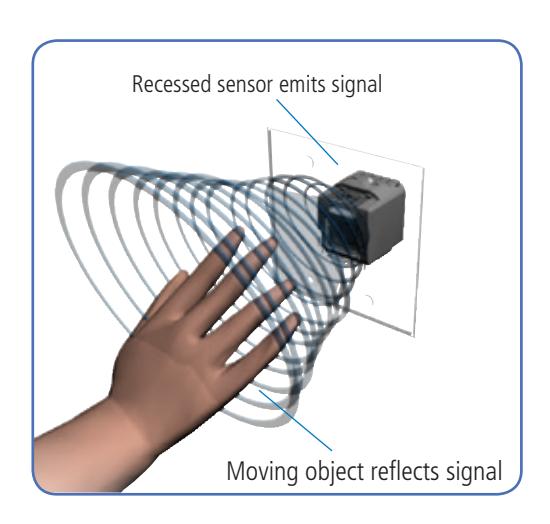

The MS08 utilizes microwave technology and the Doppler Radar effect. This Doppler Radar effect emits a signal that, when reflected by a moving object (i.e. a hand, cart, wheelchair, etc.), activates the door.

This touchless feature greatly reduces the spread of bacteria commonly found on push plates requiring a physical touch for activation.

APPLICATIONS

• Sterile environments (clean-rooms, operating rooms, pharmaceutical, manufacturing, etc.)
• Healthcare facilities (hospitals, assisted living, eldercare, etc.)
• Food processing plants (reduces cross-contamination)
• Architectural specific applications (low-profile requirement)

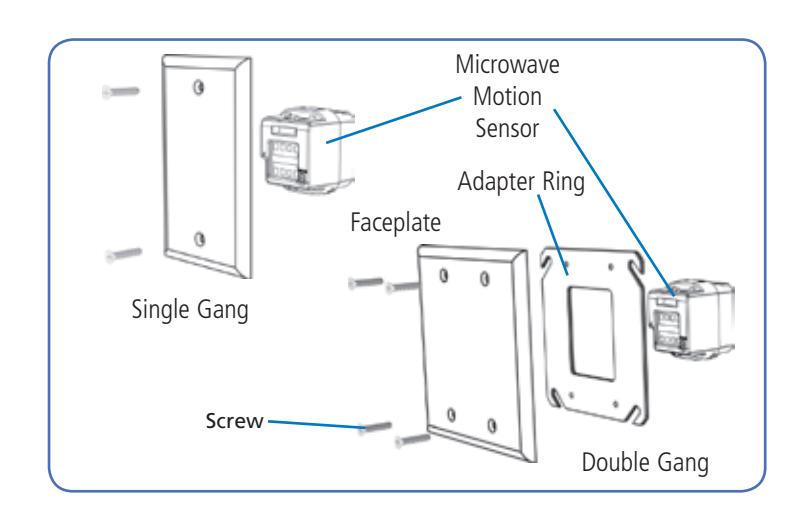

How It Works Components View

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

MS08 SERIES

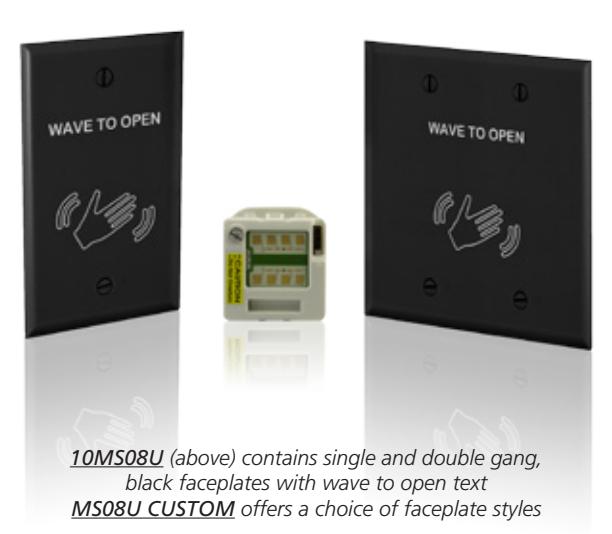

70.5226 Single Gang Black with Text

70.5227 Double Gang Black with Text

70.5272 Single Gang Solid Black

70.5273 Double Gang Solid Black

70.5278 Single Gang Black with Logo

70.5279 Double Gang Black with Logo

70.5268 Single Gang White with Text

70.5269 Double Gang White with Text

70.5274 Single Gang Solid White

70.5275 Double Gang Solid White

70.5270 Single Gang Cream with Text

70.5271 Double Gang Cream with Text

70.5276 Single Gang Solid Cream

70.5277 Double Gang Solid Cream

10BOX24SGSM Single Gang Surface Mount

10BOXDGSM Double Gang Surface Mount

10BOXDG45C 4.5" Carlon Surface Mount

TECHNICAL SPECIFICATIONS

Technology	Microwave Motion Sensor
Radiated Frequency	24.125 GHz
Transmitter Radiated Power	< 20 dBm EIRP
Radiated Power Density	< 5 mW/cm2
Detection Mode	Motion (bidirectional)
Detection Range	4 to 24 inches (adjustable)
Output	Relay with switch-over contact (free of potential)
Max. Voltage	60 VDC; 125 VAC
Max. Current	1 A (resistive)
Max. Switching Power	30 W (DC); 60 VA (AC)
Output Hold Time	0.5 s (in pulsed mode)
Supply Frequency	50 to 60 Hz
Supply Voltage	12 to 24 VAC ± 10%
	12 to 24 VDC + 30%; − 10%
Power Consumption	< 1.5 W
Material / Colors	ASA, Nylon, PC / Black, White, Cream
Cable Length	Standard cable up to 16 AWG - 1.5 mm2
Temperature Range	−4ºF to +131ºF
Certifications	EMC: 2004 / 108 / EC; FCC: G9B-MS08; IC: 4680A-MS08

Specifications are subject to change without prior notice.
