ELECTRIFIED LATCH RETRACTION

MLRK1-YAL6

• • WORKS ON ALL YALE 6000 SERIES EXIT DEVICES
• • FAST, QUIET, SMOOTH & STRONG!
• • 1 & ONLY MOTORIZED LATCH RETRACTION OPTION AVAILABLE ON THE MARKET
• • UL LISTED
• • OPTIONAL BUILT-IN REQUEST TO EXIT
• • 3 YEAR NO HASSLE WARRANTY

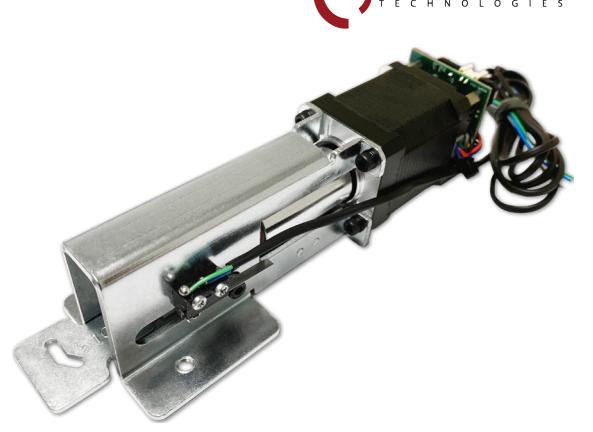

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

SPECIFICATIONS

VOLTAGE RANGE – 24 TO 28 VDC

SYSTEM PROTECTION – UNIT SHUTDOWN WHEN VOLTAGE EXCEEDS 28VDC

STANDARD - AVERAGE CURRENT PEAK: 900MA, AVERAGE CURRENT HOLD: 215MA

PTS ADJUSTMENT – APPROX. 1/4"

WIRE RUN: 300' WITH 18GA WIRE

PRODUCT DETAILS: Box: 10.5" x 3.75": x 2.5"

WEIGHT: 2 Lbs

15 MASTER PACK: Weight: 30 Lbs 12.75" x 11.75" x 11"

CUTDOWN DETAILS: 36"/ 48" - 6.5" Filler Plate Needed

ACCESSORIES

• Request to Exit (YAL6REXKIT-ED) - Optional Built-in

FEATURES

• • Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• • "PTS": 2 second electronic adjustment for easy post installation adjustment. Simplified further with ^a push button to engage programming & shorter program sequence.
• • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• • Electric dogging rated for continuous duty Auto re-engage if push pad is pulled from dogged position
• • Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6" cable with robust Quick Molex Connector for MM4S module to 6' Power lead to easily connect to power supply lead.

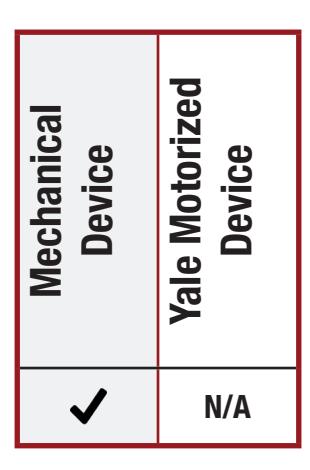

MLRK1-YAL6 Matrix

YAL6 will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-YAL6	72506	Kit for Yale 6000 36" & 48". EU 24V
MLRK1-YAL6-REX	72559	Kit for Yale 6000 36" & 48". EU 24V w/ REX

NEED LOCKING HARDWARE POWER SUPPLIES? WE'VE GOT A FEW RECOMMENDATIONS

• PS440B • PS204/PS204B • PS-4

• PS480B • PS210 • PS5-8

• PS1 • PS220/220B
