Electrified Latch Retraction

MLRK1-SGT

(SLP-UL-M-KIT)

• "PTS" Push to set technology
• Easy installation underneath the push pad for ultimate cutdown
• Fast, quiet, smooth
• True Electronic Dogging Full push pad retraction
• UL Listed
• Retrofits Sargent 80 series exit devices

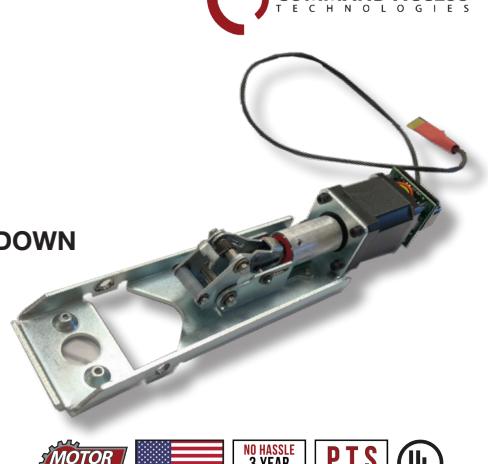

The MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy postinstallation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900mA, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36" All the way to push pad
• 48" All the way to push pad

Accessories

• CRSREXKIT-ED - Field Installable REX kit

FEATURES

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty
  • Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• 3-year "no hassle" warranty

How to Order

PART # EASY ORDER # DESCRIPTION

MLRK1-SGT	72500	Kit for Sargent 80 Series. EU 24V
CRSREXKIT-ED	70142	Field Installable REX kit for Sargent devices.

MLRK1-SGT Matrix

The MLRK1-SGT will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

Kit Sargent	Mechanical Device	fied otor odi M M AT C	otor M 56) Sargent (-	K) otor G S 00- M C R1 D S (L	S) otor D M M 550- SI C A (1
SGT

Need ^a locking hardware power supply?

Recommended Locking Hardware Power Supplies:

• PS204/PS204B • PS220/220B • PS480B
• PS210 • PS440B
