INSERT INSTRUCTIONS

The Command Access MLRK1 is a field installable motorized latch-retraction kit for:

• MLRK1-MRK Marks M9900 series devices
• MLRK1-DH Design Hardware 1000 series device

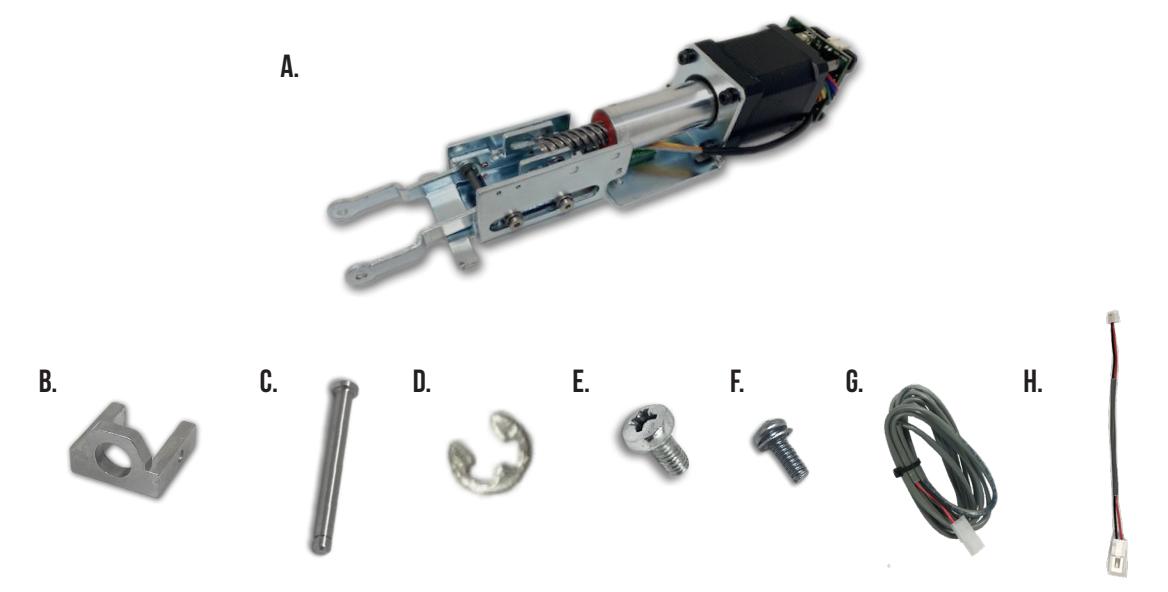

Kit Includes

• A. (1) 60412 MLRK1-MRK
• B. (1) 51023 Connecting Bracket
• C. (1) 51048 Connecting pin
• D. (3) 40067 E-CLip
• E. (2) 40929 M4 Phillips Flat Head Screw
• F. (1) 40442 Position set screw
• G. (1) 50030 8' Lead w/ VD Connector
• H. (1) 50944 MOLex pigtail

SPECIFICATIONS

• Input Voltage: 24VDC +/- 10%
• AVERAGE low Torque LATCH RETRACTION CURRENT: 900 mA
• Average high torque latch retraction current: 2A
• Average holding current: 215 ma
• Wire gauge: Minimum 18 gauge
• Direct wire run no relays or access control units in-between power supply & module

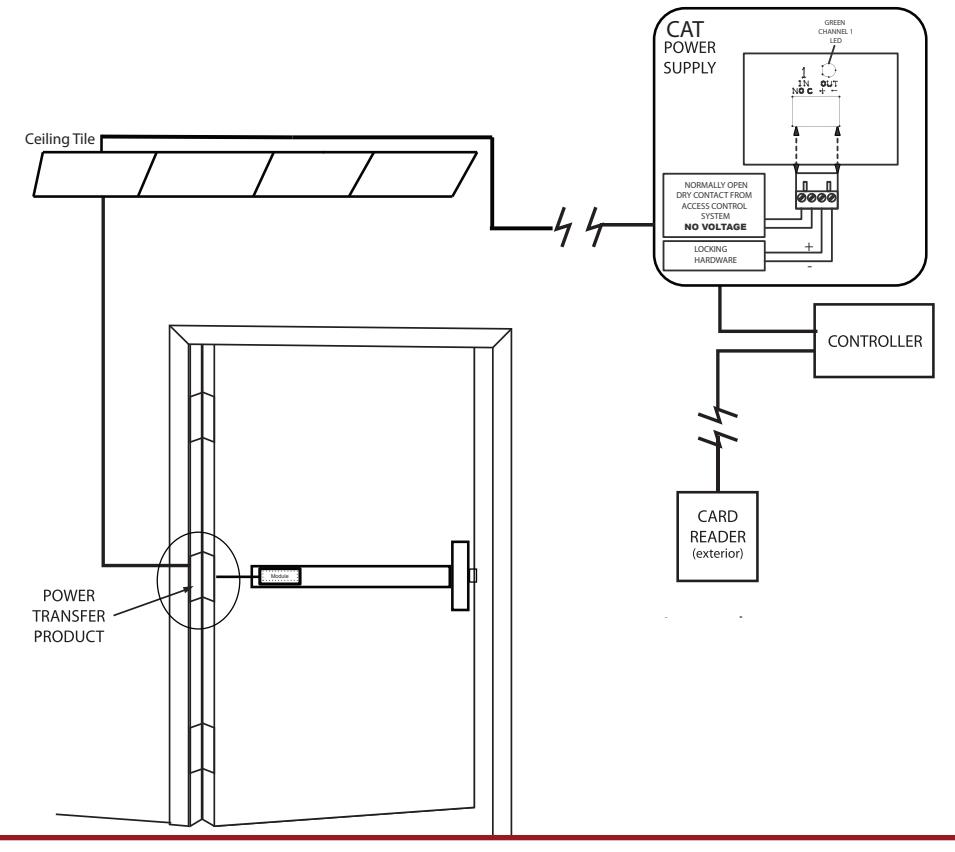

Recommended Power Supplies: Use a power limited class 2 power supply

All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you plan on using a non-Command power supply it must be a filtered & regulated linear power supply.

• SPDT - Rated .5a @24V • green= Common (C)

• Blue = normally open (NO) • grey = normally closed (NC)

Optional built-in rex

TECHNICAL INFORMATION

SETTING PUSH TO SET (PTS)

→ MAKE SURE TO SET PTS BEFORE FINISHING INSTALLATION <

• STEP 1- SELECT YOUR PREFERRED TORQUE MODE (SHIPS IN STANDARD TORQUE) PRESS THE DEVICE PUSH PAD TO THE DESIRED SETTING. (RECOMMEND TO FULLY DEPRESS AND RELEASE 5%, GIVING THE DEVICE ROOM FOR CHANGING DOOR CONDITIONS.)
• STEP 2- WHILE DEPRESSING THE PUSH PAD, APPLY POWER. (I.E. PRESENTING THE CREDENTIAL TO THE READER).
• STEP 3- CONTINUE TO KEEP PAD DEPRESSED, THE DEVICE WILL BEEP 6 TIMES . AFTER THE BEEPS HAVE STOPPED, RELEASE THE PAD AND NOW THE ADJUSTMENT IS COMPLETE. IF NOT TO YOUR LIKING REPEAT THE 3 STEPS.
• STEP 4- ONCE YOU FOUND THE CORRECT LOCATION, TURN PTS SWITCH TO OFF POSITION.

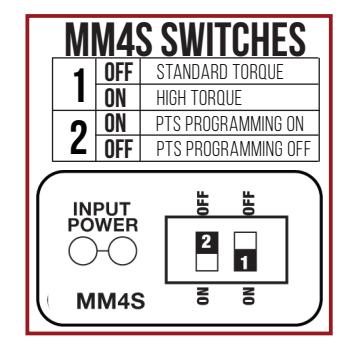

MM4S SWITCHES 1 OFF STANDARD TORQUE ON HIGH TORQUE ON PTS PROGRAMMING ON OFF PTS PROGRAMMING OFF INPUT POWER OMASS & STANDARD TORQUE INPUT B PROGRAMMING OFF MM4S & S

TROUBLESHOOTING & DIAGNOSTICS

BEEPS	EXPLANATION	SOLUTION
2 BEEPS	OVER VOLTAGE	> 30V UNIT WILL SHUT DOWN. CHECK VOLTAGE & ADJUST TO 24 V.
3 BEEPS	UNDER VOLTAGE	< 20V UNIT WILL SHUT DOWN. CHECK VOLTAGE & ADJUST TO 24 V.
4 BEEPS	FAILED SENSOR	VERIFY ALL 3 SENSOR WIRES ARE INSTALLED CORRECTLY. REPLACE SENSOR IF PROBLEM PERSISTS BY CONTACTING OFFICE.
		AFTER 1ST FAIL: 5 BEEPS THEN IMMEDIATELY ATTEMPTS TO RETRACT AGAIN.
5 BEEPS	RETRACTION OR DOGGING FAILURE	AFTER 2ND FAIL: 5 BEEPS WITH PAUSE IN-BETWEEN FOR 30 SECONDS THEN DEVICE ATTEMPTS TO RETRACT AGAIN.
		AFTER 3RD FAIL: 5 BEEPS EVERY 7 MINUTES, DEVICE WILL NOT ATTEMPT TO RETRACT.
		TO RESET: DEPRESS BAR FOR 5 SECONDS AT ANY TIME.
6 BEEPS	PUSH TO SET	DEVICE IS RECORDING IT'S NEW POSITION AND POWER MODE AFTER THE 6TH BEEP.

INSTALLATION INSTRUCTIONS

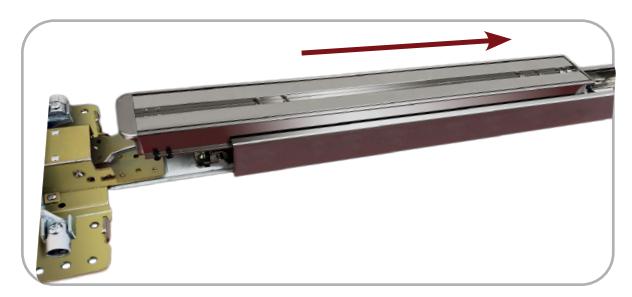

1. Slide off push pad assembly from exit device.

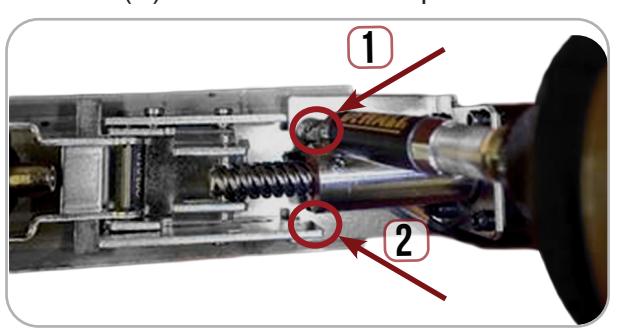

2. Line up Mounting Holes on Motor Kit with screw holes on Spacer/Base Rail. Install screw (E) into hole #1 from top of baserail.

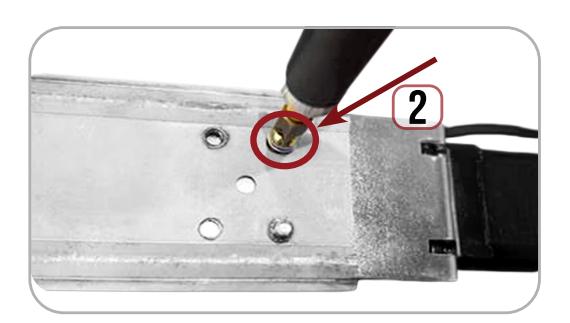

3. Turn full assembly to the side & install (E) Screw from underneath into hole #2 to secure motor kit to Base Rail.

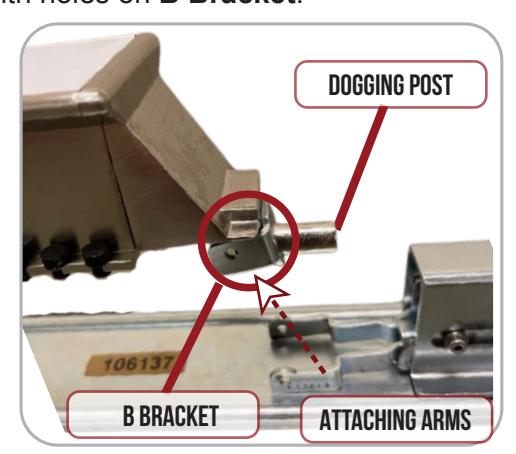

4. Slide the (B) Connecting Bracket over the Dogging post at the end of the push pad. Next, move Attaching Arms on motor kit up to line up with holes on B Bracket .

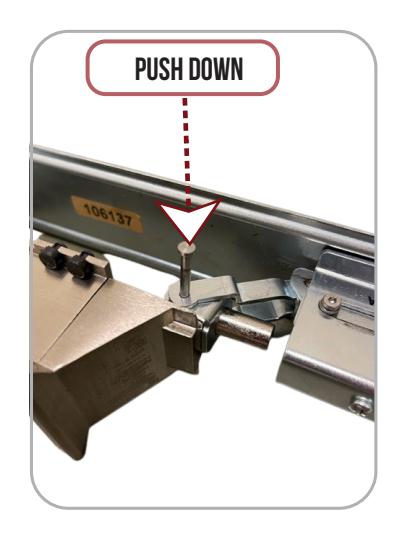

Once Attaching Arms are lined up insert (C) PIN to connect to (B) bracket.

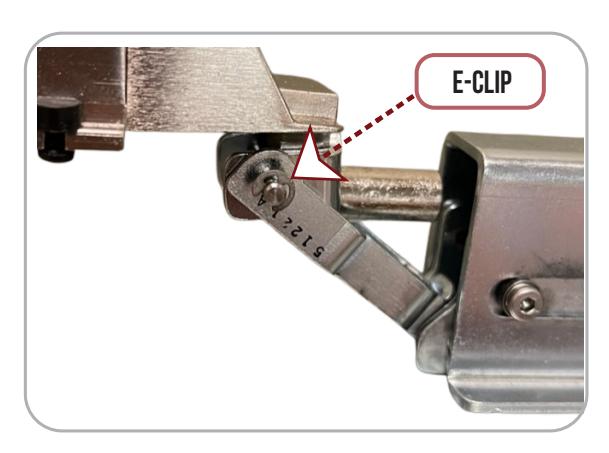

6. Install the (D) E-CLIP over the end of the link pin to secure.

INSTALLATION INSTRUCTIONS

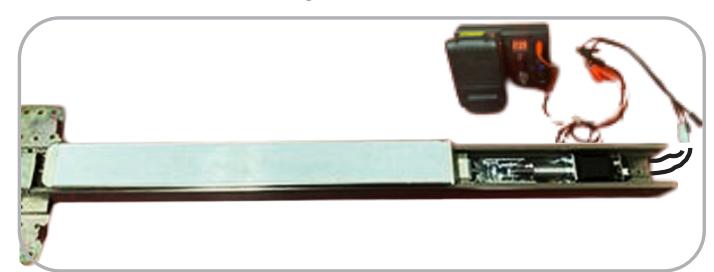

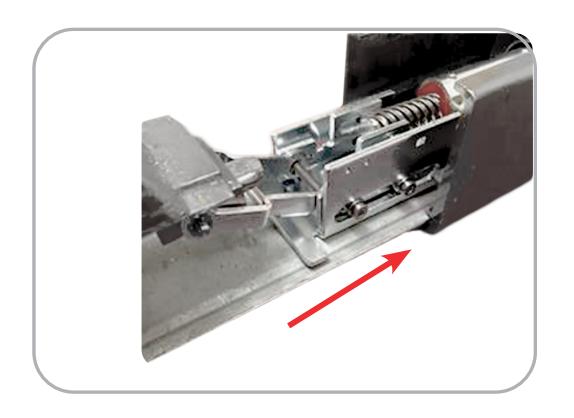

7. Re-install Base Rail into Housing.

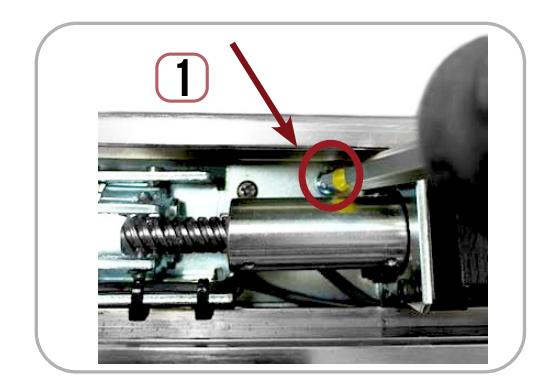

On the Baserail, locate and secure the (F) Position Set Screw.

Set the " Push to Set Adjustment " following the steps on page 2.

• STEP 1- SELECT YOUR PREFERRED TORQUE MODE (SHIPS IN STANDARD TORQUE) PRESS THE DEVICE PUSH PAD TO THE DESIRED SETTING. (RECOMMEND TO FULLY DEPRESS AND RELEASE 5%, GIVING THE DEVICE ROOM FOR CHANGING DOOR CONDITIONS.)
• STEP 2- WHILE DEPRESSING THE PUSH PAD, APPLY POWER . (I.E. PRESENTING THE CREDENTIAL TO THE READER).
• STEP 3- CONTINUE TO KEEP PAD DEPRESSED, THE DEVICE WILL BEEP 6 TIMES . AFTER THE BEEPS HAVE STOPPED, RELEASE THE PAD AND NOW THE ADJUSTMENT IS COMPLETE. IF NOT TO YOUR LIKING REPEAT THE 3 STEPS.
• STFP 4- ONCE YOU FOUND THE CORRECT LOCATION, TURN PTS SWITCH TO OFF POSITION.
