MLRK1-HAG

HAGER 4500, IDC 8000, LSDA 9000 R/V, PDQ 6200, STANLEY QED 1/2000 & LAWRENCE 8000 SERIES

• 1 Touch "PTS" Push to SET TECHNOLOGY
• · EASY INSTALLATION UNDERNEATH THE PUSH PAD FOR ULTIMATE CUTDOWN
• FAST, QUIET, SMOOTH
• True Electronic Dogging Full push pad retraction
• UL LISTED

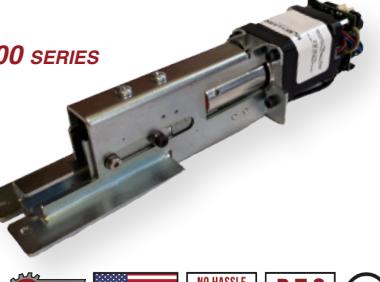

The MLRK1-HAG is a practical and cost-effective way to convert a mechanical Hager 4500, IDC 8000, LSDA 9000 R/V, PDQ 6200, Stanley QED 1/2000 & Lawrence 8000 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated MM5 module with improved torque & 1 Touch PTS!

SPECIFICATIONS

Voltage:

• Voltage range 24V +/- 10%
• System protection unit shutdown when voltage exceeds 28VDC
• Average Current Peak: 900A
• Average Current Hold: 215mA
• PTS adjustment approx. 1/4"

Wire Run:

300' with 18ga wire

Product Details:

Weight: 2 Lbs

Device Cutdown Details:

36" & 48" - Minimum 8.5" of Filler Plate

Accessories

LLPREXKIT-M-ED - Built-in or Field Installable REX kit

FEATURES

• MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty
  • Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6" robust Molex Pigtail + 6' Power lead to easily connect to power supply lead
• Request-to-exit kit available
• 3-year "no hassle" warranty

How to Order

PART #	EASY ORDER #	DESCRIPTION
MLRK1-HAG	72730	Kit for Hager 4500 Series. EU 24V
MLRK1-HAG REX	72731	Kit for Hager 4500 Series. EU 24V w/ REX

MLRK1-HAG MATRIX

The MLRK1-HAG will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

Hager Kit	Mechanical	CAT Modified	CAT Modified	Hager	SDC Motor	ACSI Motor
	Device	Solenoid	Motor	Motor	(LR100-HK)	(1550K-MDT)
HAG	$\backslash checkmark$	-
