MLRK1-FAL25

Falcon 24/25 series

• "PTS" Push to set technology
• Easy installation
• Fast, quiet, smooth
• True Electronic Dogging Full push pad retraction
• UL Listed

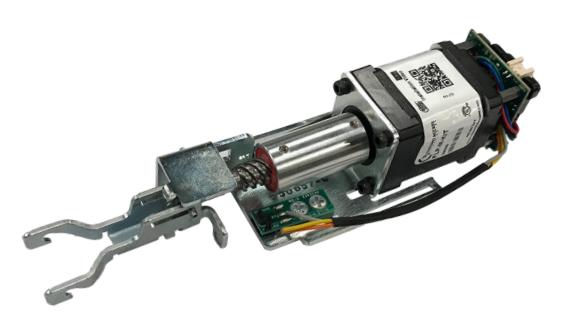

The MLRK1-FAL25 is a practical and cost-effective way to convert a mechanical Falcon 24/25 series device to an electrified latch pullback device. Our easy-to-install motor -driven kit installs in a matter of seconds with no drilling or screws required, a true "drop-in" kit! PTS allows for an easy post-installation adjustment of the latch/ latches. A built-in REX switch is standard on all units! Last but not least, features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

• Voltage range 24 to 28 VDC
• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 900mA, Average Current Hold: 215mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"

Wire Run:

• 300' with 18ga wire

Product Details:

• 10.5" x 3.75": x 2.5"
• Weight: 2 Lbs

Device Cutdown Details:

• 36" 2"
• 48" 8"

Accessories

• Request-to-Exit - Built-in

FEATURES

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty
  • Auto re-engage if push pad is pulled from dogged position
• Low Current Draw Field switchable to "High Torque" mode
• Up to 300' wire run with 2-18ga wire Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8' cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• 3-year "no hassle" warranty

How to Order

PART #	# EASY ORDER # DESCRIPTION
MLRK1-FAL25	79338	Kit for Falcon 24/25 Series. EU 24V w/ REX
RDP-FAL25	51136	Replacement Dogging Pin for Fire Rated Devices

NO HASSLE 3 YEAR WARRANTY

ALWAYS HERE TO HELP

MLRK1-FAL25 MATRIX

The MLRK1-FAL25 will work in new installations and as a replacement for installations with existing electrifications, matrix lists available options.

FALCON KIT	Mechanical*	Falcon Solenoid	CAT Modified	SDC Motor	ACSI Motor
	Device	(EL)	Motor	(LR100-FRK)	(1550K-MDF)
24/25	$\backslash checkmark$	-	$\backslash checkmark$	$\backslash overline\{\}$

*For Fire Rated Devices, a replacement Dogging Pin is required. Please consult with the factory if installing into a Fire Rated Device.

NEED A LOCKING HARDWARE POWER SUPPLY?

RECOMMENDED LOCKING HARDWARE POWER SUPPLIES:

• THEOOMMENDED EOOKING TIANDWANE TOWER CONTE
• PS210 PS440B

PS204/PS204B • PS220/220B

PS480B
